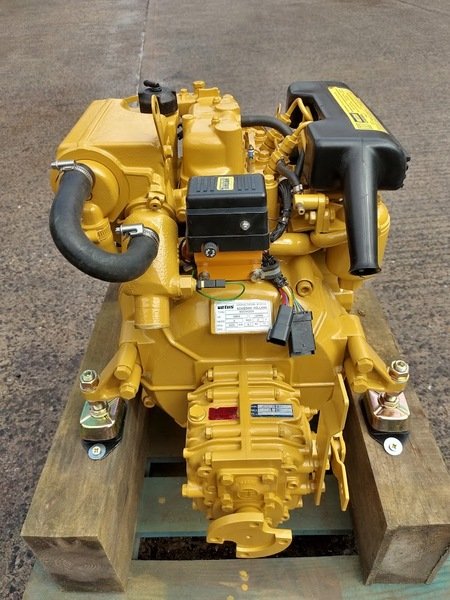

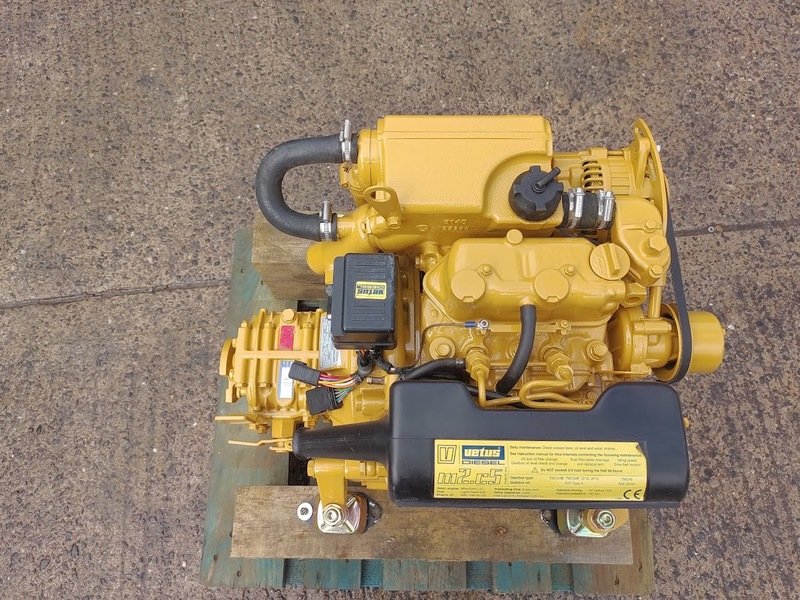

Used Vetus M2C5 11HP Marine Diesel Engine
Description
Used Vetus M2C5 11HP Marine Diesel Engine
Used Vetus M2C5 11hp Twin Cylinder Heat Exchanger Cooled Marine Diesel Engine Package With ZF12M 2:1 Gearbox, MP10 Control Panel, Extension Loom & Set Of Flex Mountings. Taken in part exchange for a brand new Vetus M2.13 engine package. This engine was installed in a small motor launch which was dry stored and had very little use. The new owner noticed a small amount of corrosion around the heat exchanger end covers and made the decision to have a brand new engine package. With such low hours, our workshops have fitted a brand new heat exchanger with core and end caps so the engine is now in excellent condition and ready for work.
Manufacturer: Vetus
Model: Vetus M2C5 11hp Marine DIesel Engine Package (Only 400hrs)
Year built: 2005
No. of cylinders: 2
Starter: Electric start
Cooling type: Fresh water
Sale: Dealer
Power: 11
Motor: 8
Fuel: Diesel
Used Vetus M2C5 11HP Marine Diesel Engine Specs
| Brand | Vetus |
| Full Model Code | M2C5 (Mitsubishi Base Platform) |
| Country of Origin | Netherlands |
| Engine Family/Series | Vetus M-Line Compact Variant |
| Engine Type & Configuration | Inline 2-Cylinder, 4-Stroke, Ultra-Compact Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Injection |
| Displacement | 0.635 Liters / 635 cc |
| Bore x Stroke | 76.0 mm x 70.0 mm |
| Cylinder Count & Valves per Cylinder | 2-Cylinder, 2-Valves per Cylinder |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 11 HP (8.1 kW) @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 33.8 Nm @ 2400 RPM |
| Fuel System & Injection Type] | Mechanical Individual Pump Injection System |
| Governor Type | Mechanical All-Speed Governor |
| Electrical System Voltage & Alternator Output | 12V System, 75 Amp Marine Grade Alternator |
| Starting System | 12V Electric Starter Motor with Cylinder Glow Elements |
| Cooling System Type | Closed Loop Freshwater System with Cast Aluminum Heat Exchanger Core |
| Lubricating Oil Capacity / Oil Pan Capacity | 2.4 Liters |
| Exhaust Diameter / Exhaust System Type | 40 mm / Wet Water-Mixing Marine Exhaust Layout |
| Flywheel & Flywheel Housing Size | Vetus Special Small Mechanical Gearbox Flange |
| Dry Weight without Marine Gear | 80 kg (176 lbs) |
| Dimensions L x W x H | 495 mm x 430 mm x 495 mm |
| Emission Certifications & Duty Rating | EU RCD 1 / Light Auxiliary Pleasure Craft Specification |
| Application | Small sailing sloops, custom wooden day-launches, and shallow draft canal punts (Typical hull lengths 16-24 feet, conventional rigid shaft configurations). |
