Used Daihatsu CLMD 25/30 Lifeboat Marine Diesel Engine
$1,867.00
In Stock
Description

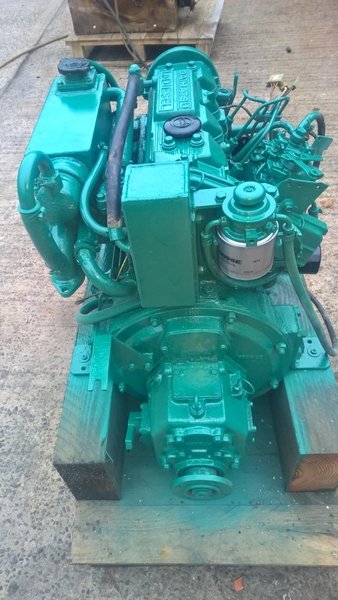

Used Daihatsu CLMD 25 / 30 Lifeboat Marine Diesel Engine
Daihatsu CLMD 25 / 30 hp Three Cylinder Heat Exchanger Cooled Lifeboat Marine Diesel Engine Complete With Gearbox. Selection of these units available, years of build range from 1988-1997. All low hours ex lifeboat units direct from service. All of the engines engines have been test run at our workshops and will be serviced, thoroughly cleaned and resprayed in heat resistant paint before dispatch.
Manufacturer: Daihatsu
Year built: 1991
Power: 30
Motor: 22
Fuel: Diesel
Used Daihatsu CLMD 25/30 Lifeboat Marine Diesel Engine Specs
| Brand | Daihatsu |
| Full Model Code | CLMD-25/30 |
| Country of Origin | Japan |
| Engine Family/Series | CLMD Compact Lifeboat Series |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Swirl Chamber Direct/Indirect Injection Combination |
| Displacement | 1.496 Liters / 1496 cc |
| Bore x Stroke | 85.0 mm x 88.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder |
| Compression Ratio | 21.0:1 |
| Rated Power / Horsepower | 30 HP (22.1 kW) @ 3000 RPM / 25 HP Continuous |
| Maximum Engine Speed / Rated RPM | 3000 RPM |
| Maximum Torque | 78 Nm @ 2000 RPM |
| Fuel System & Injection Type] | Mechanical Bosch-Type In-line Injection Pump with Priming Lever |
| Governor Type | Mechanical All-Speed Governor |
| Electrical System Voltage & Alternator Output | 12V System, 40 Amp Marine Alternator |
| Starting System | Dual System: 12V Electric Starter Motor and Heavy-Duty Hand Crank Mechanical Backup |
| Cooling System Type | Closed-Loop Keel Cooled or Internal Fresh Water Loop via Heat Exchanger to Prevent Seawater Clogging |
| Lubricating Oil Capacity / Oil Pan Capacity | 6.0 Liters (Deep-Sump Oil Pan for High Angle Inclinations) |
| Exhaust Diameter / Exhaust System Type | 50 mm / Dry Insulated Exhaust System with Guard Piping |
| Flywheel & Flywheel Housing Size | SAE 5 Flywheel Housing Alignment |
| Dry Weight without Marine Gear | 290 kg (639 lbs) |
| Dimensions L x W x H | 780 mm x 510 mm x 685 mm |
| Emission Certifications & Duty Rating | SOLAS Certified (MED/USCG), NK Class Approved / Intermittent Emergency Duty Rating |
| Application | Enclosed merchant vessel survival craft, rigid hull rescue lifeboats, and utility work tenders (Designed to run under steep roll/pitch conditions up to 30 degrees). |
