Used Volvo Penta 2003T 43HP Marine Diesel Engine
$2,025.00
In Stock
Description

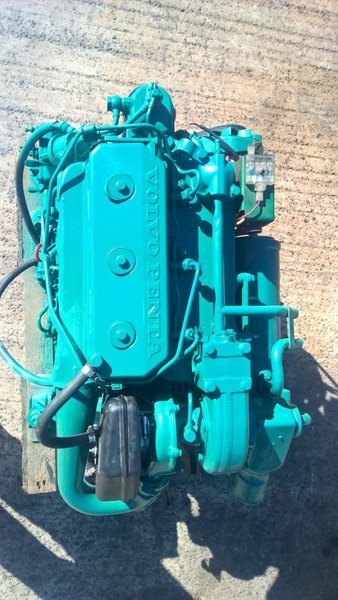

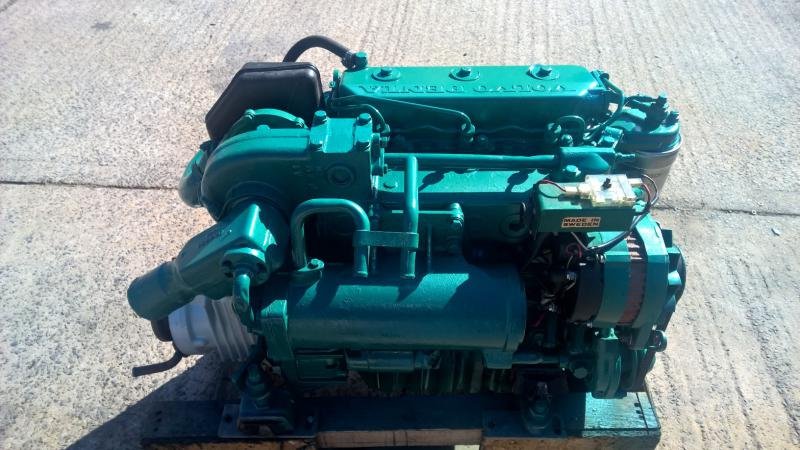

Used Volvo Penta 2003T 43HP Marine Diesel Engine
Used Volvo Penta 2003T 43hp 3 Cylinder Turbocharged Marine Diesel Engine Complete With Volvo MS2B Gearbox, Control Panel & Wiring Loom. Very clean engine and a good starter and runner, ready to go back to work. Removed from a yacht where it was originally fitted to a Volvo Saildrive and replaced only because of a fault with the saildrive unit. Our workshops have fitted the engine with a Volvo MS2B gearbox (2.37:1 reduction) adaptor plate and rear mounts to make it a standard shaft drive model.
Manufacturer: Volvo
Model: Volvo Penta 2003T 43hp Marine Diesel Engine Package
Year built: 1987
Starter: Electric start
Cooling type: Salt water
No. of previous owners: 1
Power: 43
Motor: 32
Fuel: Diesel
Used Volvo Penta 2003T 43HP Marine Diesel Engine Specs
| Brand | Volvo Penta |
| Full Model Code | 2003T (2000 Series Turbocharged) |
| Country of Origin | Sweden |
| Engine Family/Series | Volvo Penta 2000 Compact Series |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Turbocharged |
| Displacement | 1.278 Liters / 1278 cc |
| Bore x Stroke | 79.0 mm x 87.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 17.5:1 |
| Rated Power / Horsepower | 43 HP (31.6 kW) @ 3200 RPM |
| Maximum Engine Speed / Rated RPM | 3200 RPM |
| Maximum Torque | 104 Nm @ 2400 RPM |
| Fuel System & Injection Type] | Direct Injection with Individual Mechanical Injection Pumps per Cylinder |
| Governor Type | Mechanical Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System, 50 Amp Valeo Alternator |
| Starting System | 12V Electric Starter Motor |
| Cooling System Type | Freshwater Cooled via High-Efficiency Shell and Tube Heat Exchanger (Standard on T Models) |
| Lubricating Oil Capacity / Oil Pan Capacity | 4.1 Liters |
| Exhaust Diameter / Exhaust System Type | 55 mm / Water-Injected Wet Exhaust Mixing Bend |
| Flywheel & Flywheel Housing Size | Custom Volvo Penta Pattern for MS2B Mechanical Gears or 120S Saildrive |
| Dry Weight without Marine Gear | 166 kg (366 lbs) |
| Dimensions L x W x H | 735 mm x 460 mm x 540 mm |
| Emission Certifications & Duty Rating | Pre-Emission Regulation Class / M5 Pleasure Craft Rating |
| Application | Mid-size cruising sailboats, auxiliary offshore yachts, and compact semi-displacement motor launches (Typical hull lengths 32-40 feet, configured for conventional shaft or Saildrive). |
