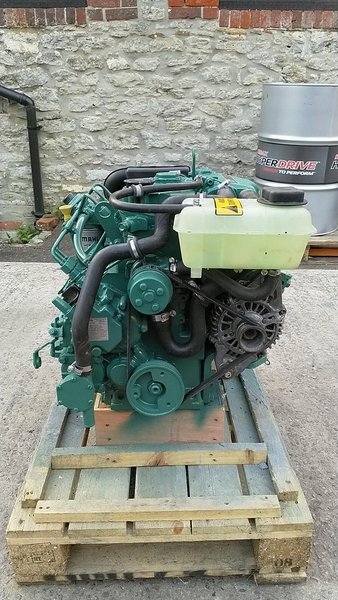

Used Volvo Penta D1-30 29HP Marine Diesel Engine
$2,167.00
In Stock
Description
Used Volvo Penta D1-30 29hp Three Cylinder Heat Exchanger Cooled Marine Diesel Engine Package. We have a selection of these units in stock from a number of recent repowers with hours ranging from 1500-3500. All have been through our workshops where they have been fully tested, inspected and overhauled as required. Still the current model from Volvo Penta and based on the well respected Perkins 403 series blocks.
Manufacturer: Volvo
Year built: 2007
Power: 29
Motor: 21
Fuel: Diesel
Used Volvo Penta D1-30 29HP Marine Diesel Engine Specs
| Brand | Volvo Penta |
| Full Model Code | D1-30 (Perkins/Shibaura 403C-11 Base) |
| Country of Origin | United Kingdom / Sweden |
| Engine Family/Series | Volvo Penta D1 Comfort Line |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Smooth-Running Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Swirl Chamber Injection |
| Displacement | 1.130 Liters / 1130 cc |
| Bore x Stroke | 77.0 mm x 81.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 29 HP (21.4 kW) @ 3200 RPM |
| Maximum Engine Speed / Rated RPM | 3200 RPM |
| Maximum Torque | 70 Nm @ 2000 RPM |
| Fuel System & Injection Type] | Mechanical Flange-Mounted Injection Pump Array, Indirect Injection |
| Governor Type | Mechanical Centrifugal Variable Control Governor |
| Electrical System Voltage & Alternator Output | 12V System, 115 Amp High Output Alternator with Electronic Regulator |
| Starting System | 12V Electric Starter Motor with Cylinder Glow Elements |
| Cooling System Type | Freshwater Closed Circuit with Integrated Cast Aluminum Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 3.5 Liters |
| Exhaust Diameter / Exhaust System Type | 45 mm / Water-jacketed Wet Exhaust Injection Bend |
| Flywheel & Flywheel Housing Size | Standard Matrix for MS15 Mechanical Gearbox or 130S Saildrive Platform |
| Dry Weight without Marine Gear | 125 kg (276 lbs) |
| Dimensions L x W x H | 571 mm x 473 mm x 534 mm |
| Emission Certifications & Duty Rating | EU RCD 2, EPA Tier 3 Compliant / Continuous Auxiliary Cruising Specification |
| Application | Auxiliary propulsion for cruising yachts, coastal sailing monohulls, catamarans, and displacement river cruisers (Typical hull lengths 28-36 feet, configured with rigid shaft or Saildrive). |
