Used Ford Mermaid Melody 88HP Marine Diesel Engine
$2,096.25
In Stock
Description

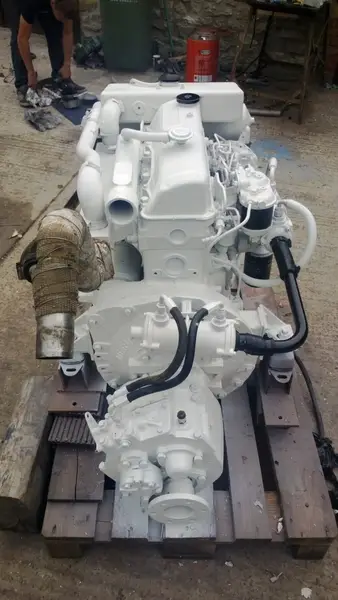

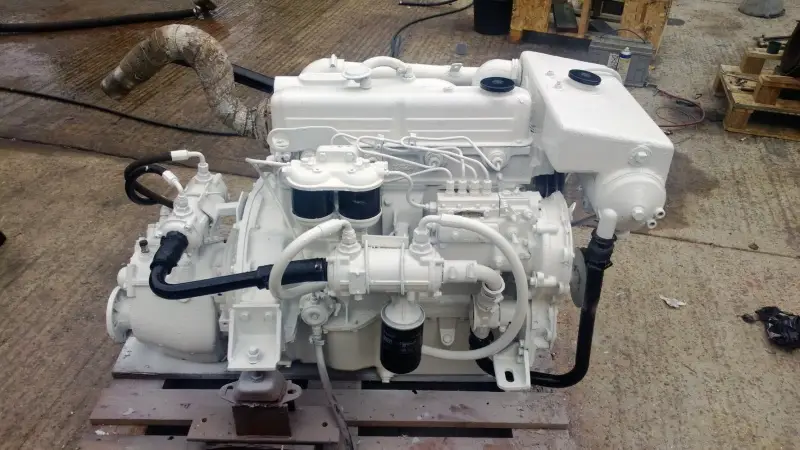

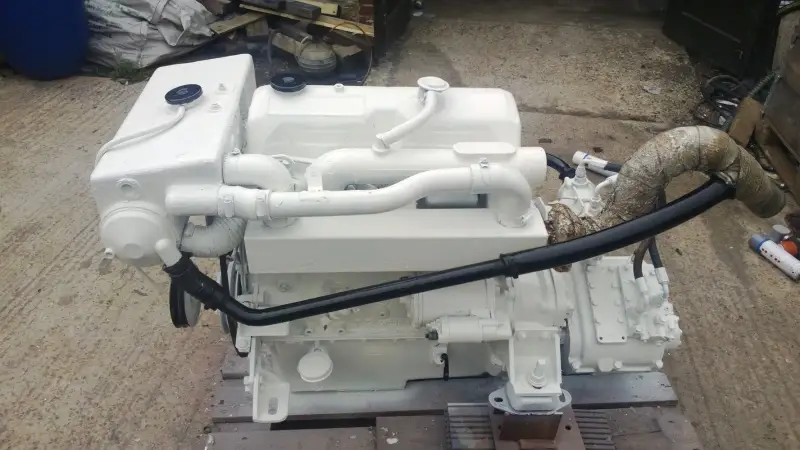

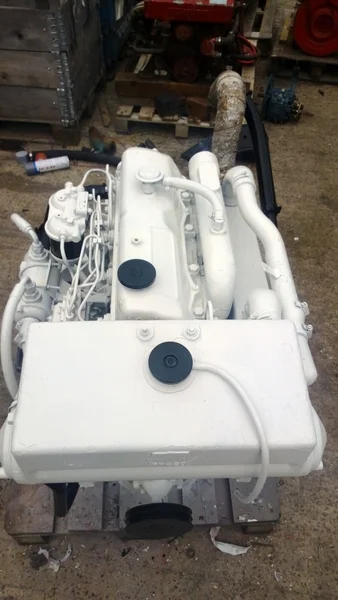

Used Ford Mermaid Melody 88HP Marine Diesel Engine
Ford Mermaid Melody 88hp 4 Cylinder Heat Exchanger Cooled Marine Diesel Engine Complete With PRM Hydraulic Gearbox. Direct from one of our customers and in full running order. Removed to be replaced with a newer model as part of a planned refit. The engine is understood to have been rebuilt 2 years ago including new pistons, rings, liners and bearings and has run approximately 800Hrs Since. Very solid engines with a great reputation among private and commercial operators alike. It has been test run, thoroughly cleaned and resprayed in heat resistant primer followed by heat resistant Mermaid White and is now ready for more work or play.
Manufacturer: Ford
Year built: 1988
Power: 88
Motor: 65
Fuel: Diesel
Used Ford Mermaid Melody 88HP Marine Diesel Engine Specs
| Brand | Ford Mermaid |
| Full Model Code | Melody (Ford 2722E Base) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Ford Dover Marine Conversion Series |
| Engine Type & Configuration | Inline 4-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Direct Injection |
| Displacement | 4.150 Liters / 4150 cc |
| Bore x Stroke | 107.0 mm x 115.0 mm |
| Cylinder Count & Valves per Cylinder | 4-Cylinder, 2-Valves per Cylinder (8 Valves Total) |
| Compression Ratio | 16.5:1 |
| Rated Power / Horsepower | 88 HP (65.6 kW) @ 2600 RPM |
| Maximum Engine Speed / Rated RPM | 2600 RPM |
| Maximum Torque | 260 Nm @ 1600 RPM |
| Fuel System & Injection Type] | Mechanical Minimec In-line Fuel Injection Pump, Direct Injection |
| Governor Type | Mechanical Governor |
| Electrical System Voltage & Alternator Output | 12V System, 60 Amp Charging Alternator |
| Starting System | 12V Electric Starter Motor |
| Cooling System Type | Freshwater Cooling Loop with Seawater Intercooled Heat Exchanger Manifold |
| Lubricating Oil Capacity / Oil Pan Capacity | 10.5 Liters |
| Exhaust Diameter / Exhaust System Type | 63 mm / Waterjacketed Wet Exhaust System |
| Flywheel & Flywheel Housing Size | SAE 3 Flywheel Housing Specification |
| Dry Weight without Marine Gear | 410 kg (904 lbs) |
| Dimensions L x W x H | 920 mm x 610 mm x 790 mm |
| Emission Certifications & Duty Rating | Pre-Emission Standard Era / Continuous Duty Marine Rating |
| Application | Sailing yachts, small displacement trawlers, harbor launches, and inland waterways commercial craft (Typical hull lengths 30-40 feet, shaft drive propulsion). |
