Used Perkins M20 Inboard Marine Diesel Engine
$1,800.00
In Stock
Description

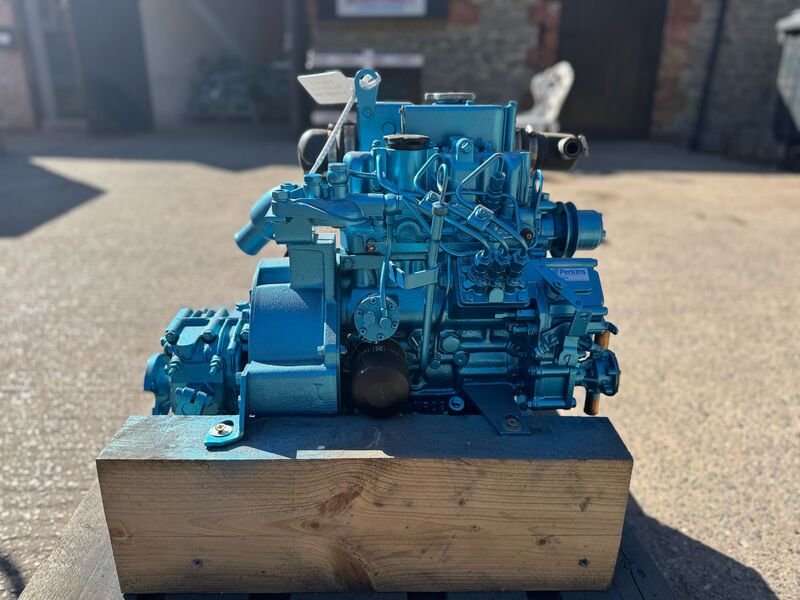

Used Perkins M20 Inboard Diesel
Perkins Perama M20 Three Cylinder 18hp Heat Exchanger Cooled Marine Diesel Engine complete with panel, loom. Fitted with a Hurth HBW100 Gearbox. Starts and runs nicely and has been fully cleaned and resprayed ready to go back to work.
Manufacturer: Perkins
Model: M20
Year built: 1985
No. of cylinders: 3
Starter: Electric start
Cooling type: Salt water
Power: 18
Motor: 13
Fuel: Diesel
Used Perkins M20 Inboard Marine Diesel Engine Specs
| Brand | Perkins |
| Full Model Code | M20 (Perma Series / Shibaura Base Platform) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Perkins Perma Compact Marine Series |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Ultra-Lightweight Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Vortex Swirl Combustion Injection |
| Displacement | 0.954 Liters / 954 cc |
| Bore x Stroke | 75.0 mm x 72.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 18 HP (13.4 kW) @ 3200 RPM |
| Maximum Engine Speed / Rated RPM | 3200 RPM |
| Maximum Torque | 51 Nm @ 2000 RPM |
| Fuel System & Injection Type] | Mechanical Bosch-Type In-line Miniature Injection Pump |
| Governor Type | Mechanical Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System, 40 Amp Marine Belt-Driven Alternator |
| Starting System | 12V Electric Starter Motor with Fast Preheat Glow Plug Elements |
| Cooling System Type | Freshwater Closed Circuit with Integrated Heat Exchanger Header Tank |
| Lubricating Oil Capacity / Oil Pan Capacity | 3.0 Liters |
| Exhaust Diameter / Exhaust System Type | 40 mm / Water-Injected Rubber-Hose Friendly Wet Mixing Elbow |
| Flywheel & Flywheel Housing Size | Custom Compact Configuration for Hurth/ZF Mechanical Gears |
| Dry Weight without Marine Gear | 110 kg (242 lbs) |
| Dimensions L x W x H | 585 mm x 440 mm x 535 mm |
| Emission Certifications & Duty Rating | Pre-RCD 2 Limitations / Standard Auxiliary M5 Pleasure Rating |
| Application | Small sailing yachts, sailing tenders, pocket cruisers, and inland river canal dayboats (Typical hull lengths 22-28 feet, adapted for classic rigid shaft lines or compact saildrive packages). |
