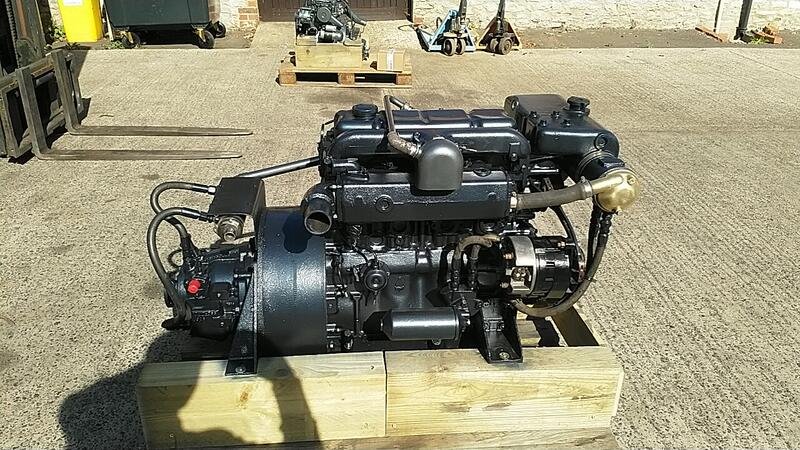

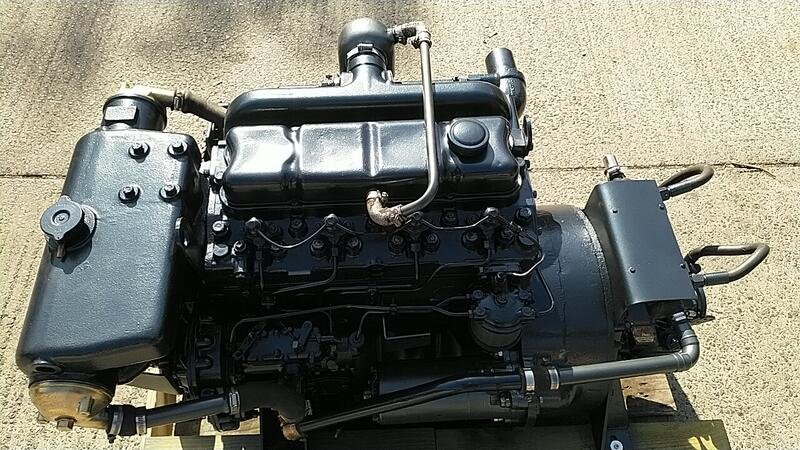

Used Perkins 4236 72HP Marine Diesel Engine
Description
Perkins 4236 72HP Marine Diesel Engine
Used Perkins 4236 72hp Four Cylinder Naturally Aspirated Heat Exchanger Cooled Marine Diesel Engine With Borg Warner 1:1 Hydraulic Gearbox. 24V Electrics. Removed from a large timber motorboat which was being fully restored. Leisure use only so low hours circa 3000 from new. This is an earlier marinisation with the heavy duty flywheel and flywheel housing. Starts and runs very nicely indeed with a clean exhaust and no visible leaks. Oil pressure excellent whether hot or cold.
Currently fitted with dry exhaust flange but could be fitted with wet mixer elbow if required. The engine has been tested by our workshops with no faults noted. It has since been serviced and painted, ready for more work. The Perkins 4236 is well known to be an extremely robust engine and is why it was the engine of choice for many smaller Massey Ferguson tractors during the 70s, 80s and 90s. The engine is currently fitted with 24V electrics but could be converted to 12v by changing starter, alternator and instrument senders which can be carried out by separate negotiation if required.
Manufacturer: Perkins
Year built: 1980
Power: 72
Motor: 53
Fuel: Diesel
Used Perkins 4236 72HP Marine Diesel Engine Specs
| Brand | Perkins |
| Full Model Code | 4.236 Marine (Low-line Option variant) |
| Country of Origin | United Kingdom |
| Engine Family/Series | 4.200 Heavy Duty Workboat Core |
| Engine Type & Configuration | Inline 4-Cylinder, 4-Stroke, High-Torque Vertical Diesel |
| Aspiration & Induction System | Naturally Aspirated, Direct Injection (Quadram Combustion Layout) |
| Displacement | 3.860 Liters / 3860 cc |
| Bore x Stroke | 98.4 mm x 127.0 mm |
| Cylinder Count & Valves per Cylinder | 4-Cylinder, 2-Valves per Cylinder (8 Valves Total) |
| Compression Ratio | 16.0:1 |
| Rated Power / Horsepower | 72 HP (53.7 kW) @ 2500 RPM / 62 HP Commercial Continuous |
| Maximum Engine Speed / Rated RPM | 2500 RPM |
| Maximum Torque | 245 Nm @ 1400 RPM |
| Fuel System & Injection Type] | Mechanical Lucas CAV Rotary Distributing Injection Pump |
| Governor Type | Mechanical All-Speed Governor |
| Electrical System Voltage & Alternator Output | 12V System, 65 Amp Heavy Duty Charging Alternator |
| Starting System | 12V Heavy Duty Electric Starter Motor |
| Cooling System Type | Freshwater Cooled Engine Circuit with Integrated Shell/Tube Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 8.0 Liters |
| Exhaust Diameter / Exhaust System Type | 63 mm / Waterjacketed Marine Wet Exhaust Manifold |
| Flywheel & Flywheel Housing Size | SAE 3 Flywheel Housing / Heavy Duty Mechanical Clutch Flywheel |
| Dry Weight without Marine Gear | 385 kg (848 lbs) |
| Dimensions L x W x H | 940 mm x 615 mm x 760 mm |
| Emission Certifications & Duty Rating | Pre-Tier Regulatory Controls / Heavy Duty Continuous Commercial & Heavy Cruising |
| Application | Commercial fishing trawlers, motor barges, heavy displacement yachts, work launches, and passenger ferries (Typical hull lengths 35-46 feet, optimized for low-speed heavy propulsion shaft loads). |
