Used Perkins T6354 165HP Marine Diesel Engine
$3,300.00
In Stock
Description
Used Perkins T6354 165HP Marine Diesel Engine

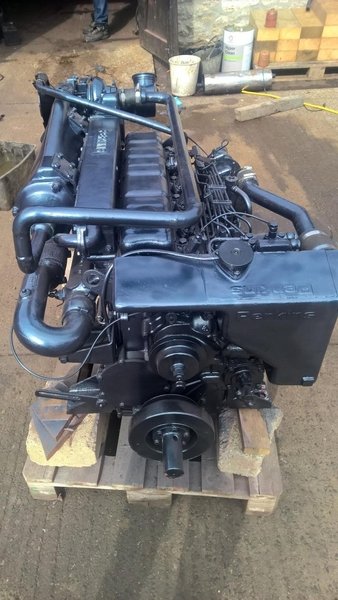

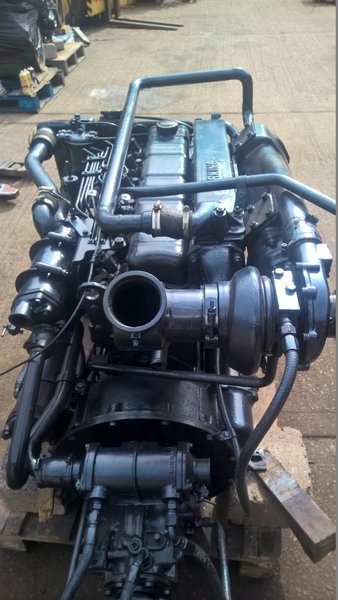

Used Perkins T6354 165hp 6 Cylinder Turbo Intercooled Marine Diesel Engine Complete With Borg Warner 1:1 Gearbox. Also Other Borg Warner Gearbox Ratio Options Available. One of a pair removed from a 45ft powerboat as they were felt to be too small for the size of boat which is going classic powerboat racing and were taken in as a part exchange on a pair of 400hp diesels. Both engines start and run well and will shortly be fully serviced, cleaned and repainted to a good standard by our workshops.
Manufacturer: Perkins
Year built: 1978
Power: 165
Motor: 123
Fuel: Diesel
Used Perkins T6354 165HP Marine Diesel Engine Specs
| Brand | Perkins |
| Full Model Code | T6.354 (6.354 Turbocharged Marine Build) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Perkins 354 Heavy-Duty Industry Line |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Turbocharged, Intake Scavenging Induction |
| Displacement | 5.800 Liters / 5800 cc |
| Bore x Stroke | 98.4 mm x 127.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (12 Valves Total) |
| Compression Ratio | 16.0:1 |
| Rated Power / Horsepower | 165 HP (123 kW) @ 2400 RPM |
| Maximum Engine Speed / Rated RPM | 2400 RPM |
| Maximum Torque | 515 Nm @ 1500 RPM |
| Fuel System & Injection Type] | Mechanical CAV DPA Rotary Distributor Fuel Injection Pump |
| Governor Type | Mechanical/Hydraulic Built-in Rotary Governor |
| Electrical System Voltage & Alternator Output | 12V System, 60 Amp Marine Grade Alternator |
| Starting System | 12V Heavy Duty Electric Starter Motor |
| Cooling System Type | Freshwater Cooled via Bowman Cooled Shell & Tube Integrated Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 13.5 Liters |
| Exhaust Diameter / Exhaust System Type | 90 mm / Water-Jacketed Cast Iron Wet Mixing Exhaust Pipeline |
| Flywheel & Flywheel Housing Size | SAE 3 Flywheel Housing Configuration |
| Dry Weight without Marine Gear | 518 kg (1142 lbs) |
| Dimensions L x W x H | 1125 mm x 660 mm x 815 mm |
| Emission Certifications & Duty Rating | Pre-Tier Regulatory Specifications / Continuous Commercial & Heavy Cruiser Duty |
| Application | Classic displacement trawlers, traditional wooden motor cruisers, offshore commercial fishing liners, and multi-passenger transport launches (Typical hull lengths 38-50 feet, optimized for conventional straight shaft drive). |
