Used Volvo Penta MD2030 29HP Marine Diesel Engine
Description

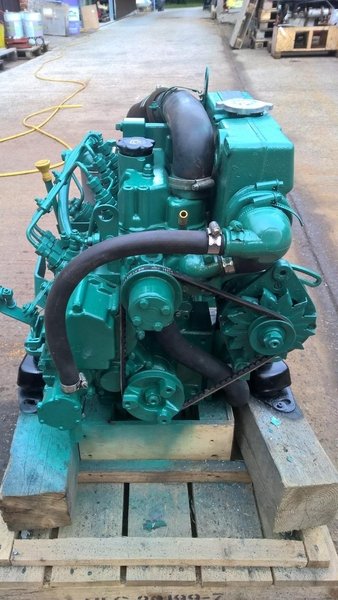

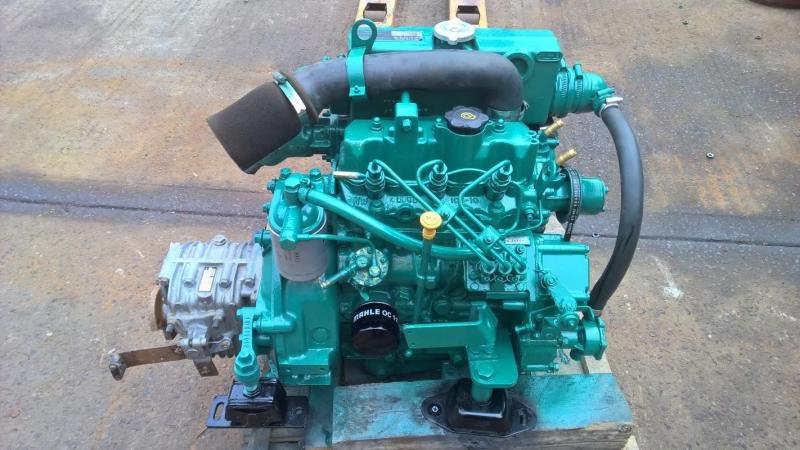

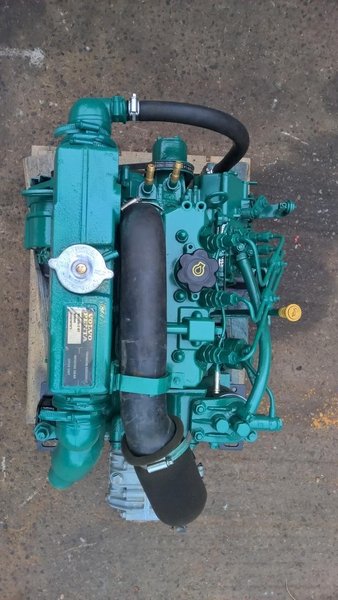

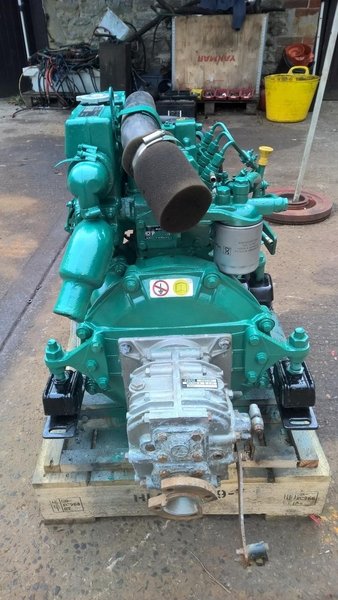

Used Volvo Penta MD2030 29HP Marine Diesel Engine
Used Volvo Penta 2030 29hp 3 Cylinder Heat Exchanger Cooled Marine Diesel Engine Complete With Volvo Penta MS10 Transmission, Control Panel & Wiring Loom. We have a number of these units available with hours ranging from 1200-2500 running time. All have been tested and inspected by our workshops and found to be in good order with any required repairs and renewals carried out. Available as a bobtail engines for Saildrive with gearbox for shaft drive. Saildrive legs also available if required. All have been tested, serviced, stripped, cleaned and re-painted in Volvo Green and ready for use.
Manufacturer: Volvo
Model: Volvo Penta MD2030 29hp Marine Diesel Engine Package
Year built: 1998
No. of cylinders: 3
Starter: Electric start
Cooling type: Fresh water
No. of previous owners: 1
Power: 29
Motor: 21
Fuel: Diesel
Used Volvo Penta MD2030 29HP Marine Diesel Engine Specs
| Brand | Volvo Penta |
| Full Model Code | MD2030 (Perkins/Shibaura 103-10 Base) |
| Country of Origin | United Kingdom / Sweden |
| Engine Family/Series | Volvo Penta MD2000 Comfort Series |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Smooth-Running Vertical Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Injection |
| Displacement | 0.954 Liters / 954 cc |
| Bore x Stroke | 75.0 mm x 72.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 29 HP (20.9 kW) @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 59 Nm @ 2400 RPM |
| Fuel System & Injection Type] | Mechanical Flange-Mounted Miniature In-line Injection Pump, Indirect Swirl |
| Governor Type | Mechanical Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System, 60 Amp Marine Alternator |
| Starting System | 12V Electric Starter Motor with Fast Preheat Glow Plug System |
| Cooling System Type | Freshwater Cooled Engine Circuit with Integrated Shell and Tube Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 3.5 Liters |
| Exhaust Diameter / Exhaust System Type | 45 mm / Cast Iron Water-Injected Wet Exhaust Mixing Bend |
| Flywheel & Flywheel Housing Size | Standard Mounting Flange for MS2 Marine Gearboxes or 120S Saildrive Matrix |
| Dry Weight without Marine Gear | 132 kg (291 lbs) |
| Dimensions L x W x H | 675 mm x 442 mm x 528 mm |
| Emission Certifications & Duty Rating | EU RCD 1 / Continuous Auxiliary Cruising Specification |
| Application | Mid-size coastal cruising sailboats, production cruising yachts, family river cruisers, and small displacement work launches (Typical hull lengths 28-36 feet, configured with rigid shaft or Saildrive layouts). |
