Used Perkins Perama M30 29HP Marine Diesel Engine
$1,792.00
In Stock
Description

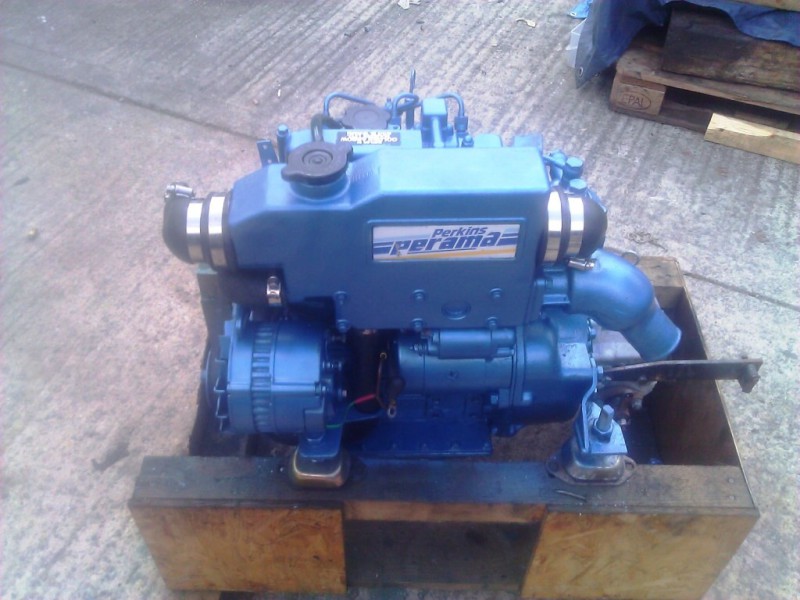

Used Perkins Perama M30 29hp Marine Diesel Engine
Used Perkins Perama M30 Three Cylinder 29hp Heat Exchanger Cooled Marine Diesel Engine complete with panel, loom and recent new Technodrive gearbox. Recently removed from a Moody 35 sailing yacht to make way for a larger Beta engine. Starts and runs nicely and has been fully cleaned and resprayed ready to go back to work.Manufacturer: PerkinsModel: Perkins Perama M30 29hp Marine Diesel EngineYear built: 1991Power: 29Motor: 21Fuel: Diesel
Used Perkins Perama M30 29HP Marine Diesel Engine Specs
| Brand | Perkins |
| Full Model Code | Perama M30 (Shibaura 103-15 Base) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Perama Compact Marine Series |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Injection |
| Displacement | 1.496 Liters / 1496 cc |
| Bore x Stroke | 84.0 mm x 90.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 22.5:1 |
| Rated Power / Horsepower | 29 HP (21.6 kW) @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 78 Nm @ 2200 RPM |
| Fuel System & Injection Type] | In-line Injection Pump, Indirect Injection into Swirl Chamber |
| Governor Type | Mechanical Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System, 55 Amp Alternator with Internal Regulator |
| Starting System | 12V Electric Starter Motor with Sheathed element Glow Plugs |
| Cooling System Type | Freshwater Cooled via Bowman-type Heat Exchanger Core |
| Lubricating Oil Capacity / Oil Pan Capacity | 6.0 Liters |
| Exhaust Diameter / Exhaust System Type | 50 mm / Water-Injected Wet Exhaust Mixing Elbow |
| Flywheel & Flywheel Housing Size | Custom Compact Pattern tailored for Hurth HBW/ZF Mechanical Gearboxes |
| Dry Weight without Marine Gear | 145 kg (320 lbs) |
| Dimensions L x W x H | 655 mm x 464 mm x 593 mm |
| Emission Certifications & Duty Rating | Pre-Emission Regulation Class / M4 Auxiliary Cruising Duty |
| Application | Auxiliary propulsion for sailing yachts, pocket cruisers, canal dayboats, and small traditional day-launches (Typical hull lengths 26-34 feet, running on traditional rigid shaft configurations or Saildrive). |
