Used Perkins Sabre M225TI 225HP Bobtail Marine Diesel Engine
$4,275.00
In Stock
Description

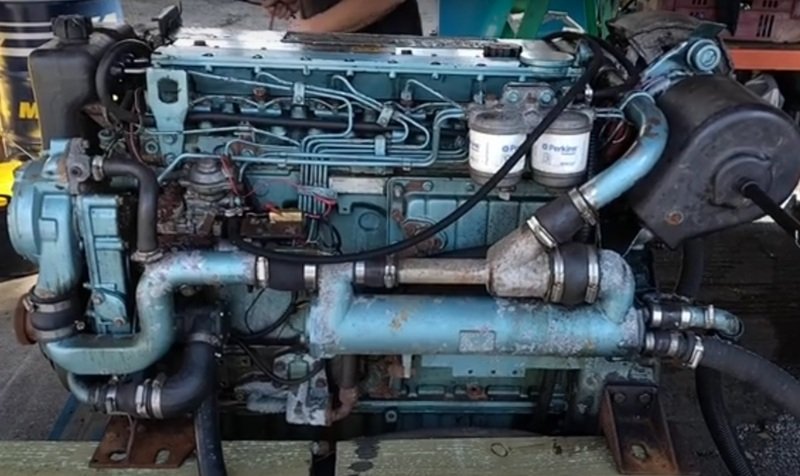

Used Perkins Sabre M225TI 225HP Bobtail Marine Diesel Engine
Used Perkins Sabre M225TI 225hp Six Cylinder Turbo Aftercooled Heat Exchanger Cooled Bobtail Marine Diesel Engine With Control Panel & Wiring Loom. Removed from a charter fishing vessel in full running order as part of a planned repower to a larger 280hp Iveco engine. Circa 5000hrs running time. Tested by our workshops. Starts and runs well from cold with no mechanical defects noted. 24V Electrics.
Manufacturer: Perkins
Year built: 1994
No. of cylinders: 6
Cylinder capacity: 6.0L
Starter: Electric start
Cooling type: Fresh water
No. of previous owners: 1
Power: 225
Motor: 167
Fuel: Diesel
Used Perkins Sabre M225TI 225HP Bobtail Marine Diesel Engine Specs
| Brand | Perkins Sabre |
| Full Model Code | M225TI (Perkins 1006 Series Base) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Perkins Sabre High-Performance Line |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Heavy-Duty Premium Diesel |
| Aspiration & Induction System | Turbocharged and Sea-Water Charge Air Cooled (Intercooled) |
| Displacement | 5.985 Liters / 5985 cc |
| Bore x Stroke | 100.0 mm x 127.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (12 Valves Total) |
| Compression Ratio | 16.0:1 |
| Rated Power / Horsepower | 225 HP (165 kW) @ 2500 RPM |
| Maximum Engine Speed / Rated RPM | 2500 RPM |
| Maximum Torque | 755 Nm @ 1600 RPM |
| Fuel System & Injection Type] | Mechanical Lucas/Stanadyne Rotary Injection Pump, Direct Injection Multi-Hole Nozzles |
| Governor Type | Mechanical All-Speed Governor |
| Electrical System Voltage & Alternator Output | 12V System (Optional 24V Build), 70 Amp Marine Alternator |
| Starting System | 12V Heavy Duty Electric Starter Motor |
| Cooling System Type | Freshwater Circuit via Modular Heat Exchanger and Raw-Water Gear-Driven Pump |
| Lubricating Oil Capacity / Oil Pan Capacity | 16.1 Liters |
| Exhaust Diameter / Exhaust System Type | 100 mm / Water-jacketed Turbocharged Wet Exhaust Output |
| Flywheel & Flywheel Housing Size | SAE 3 Flywheel Housing / SAE 10 or 11.5 Flywheel Array |
| Dry Weight without Marine Gear | 596 kg (1314 lbs) (Bobtail Base Unit - No Transmission Gear) |
| Dimensions L x W x H | 1179 mm x 736 mm x 842 mm |
| Emission Certifications & Duty Rating | IMO Tier I Compliant / Heavy Displacement Cruising & Medium Commercial Duty |
| Application | Semi-displacement motor yachts, commercial charter fishing boats, harbor workboats, passenger tenders, and heavy displacement offshore cruisers (Typical hull lengths 40-55 feet, Bobtail layout prepared for direct installation with ZF or Twin Disc transmission systems). |
