Used Ford Sabre 350C 350HP Marine Diesel Engine
$4,425.00
In Stock
Description

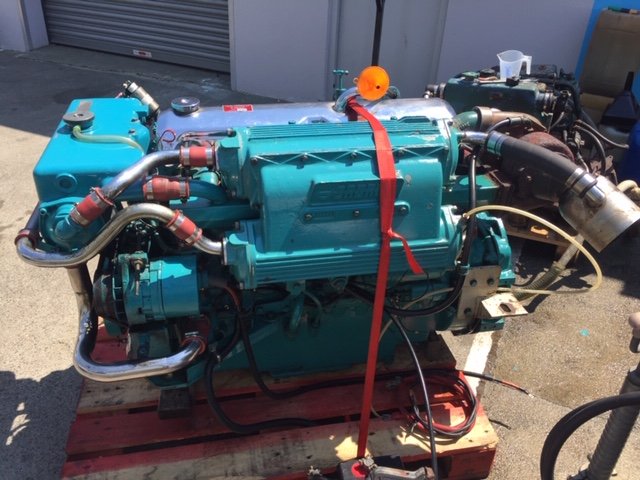

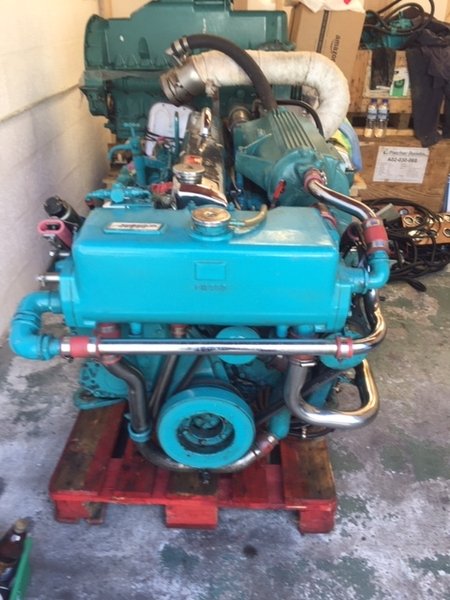

Used Ford Sabre 350C 350HP Marine Diesel Engine
Used Ford Sabre 350C 350hp Six Cylinder Turbo Intercooled Heat Exchanger Cooled Bobtail Marine Diesel Engine With Instrumentation. In very clean original condition having been removed from a classic powerboat as part of a planned refit. Hand built by Sabre and modified to 6.8L producing 350hp at 2600rpm. Extremely clean and original and were running well when removed at the end of last season.
Manufacturer: Ford
Model: Ford Sabre 350C 350hp Marine Diesel Engine (PAIR AVAILABLE)
Year built: 1987
No. of cylinders: 6
Cylinder capacity: 6.8
Starter: Electric start
Cooling type: Fresh water
No. of previous owners: 1
Power: 350
Motor: 260
Fuel: Diesel
Used Ford Sabre 350C 350HP Marine Diesel Engine Specs
| Brand | Ford Sabre |
| Full Model Code | Sabre 350C (Ford Otosan/Dover High-Output Platform) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Sabre High-Performance Performance Series |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Turbocharged Intercooled Marine Engine |
| Aspiration & Induction System | Freshwater Turbocharged, Raw-Water Two-Stage Charge Air Intercooled (Aftercooled) |
| Displacement | 5.950 Liters / 5950 cc |
| Bore x Stroke | 107.0 mm x 115.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (High-Flow Stellite Faced Valves) |
| Compression Ratio | 14.5:1 |
| Rated Power / Horsepower | 350 HP (261 kW) @ 2600 RPM |
| Maximum Engine Speed / Rated RPM | 2600 RPM |
| Maximum Torque | 980 Nm @ 1800 RPM |
| Fuel System & Injection Type] | High-Capacity Mechanical Bosch P-Type In-line Injection Pump with Boost Control |
| Governor Type | Mechanical/Hydraulic All-Speed Governor |
| Electrical System Voltage & Alternator Output | 12V or 24V Dual Option, 90 Amp High Output Alternator |
| Starting System | Electric Starter Motor (12V/24V) |
| Cooling System Type | Freshwater Loop with High-Capacity Marine Heat Exchanger, Gear-Driven Raw Water Pump |
| Lubricating Oil Capacity / Oil Pan Capacity | 16.0 Liters (Equipped with High-Efficiency Oil Cooler) |
| Exhaust Diameter / Exhaust System Type | 127 mm / Oversized Twin-Entry Water-Injected Wet Exhaust Elbow |
| Flywheel & Flywheel Housing Size | SAE 2 Flywheel Housing / Heavy Duty Drive Clutch Plate |
| Dry Weight without Marine Gear | 695 kg (1532 lbs) |
| Dimensions L x W x H | 1320 mm x 740 mm x 890 mm |
| Emission Certifications & Duty Rating | Pre-Tier Regulatory Controls / High-Output Pleasure Craft & Intermittent Fast Patrol Duty |
| Application | High-speed planing hulls, luxury motor yachts, customs/police patrol crafts, and fast offshore sportfishers (Typical hull lengths 36-50 feet, paired with high-performance ZF or Twin Disc reduction gears). |
