Used Yanmar 1GM10 9HP Marine Diesel Engine
$1,792.00
In Stock
Description

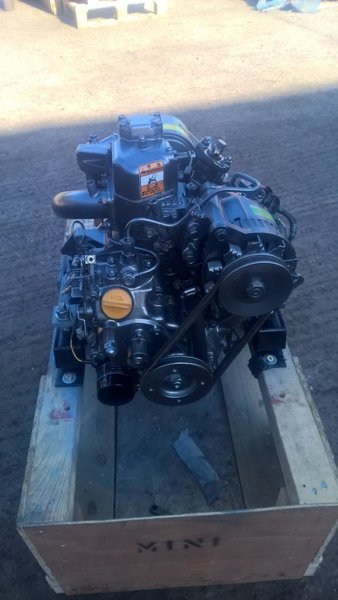

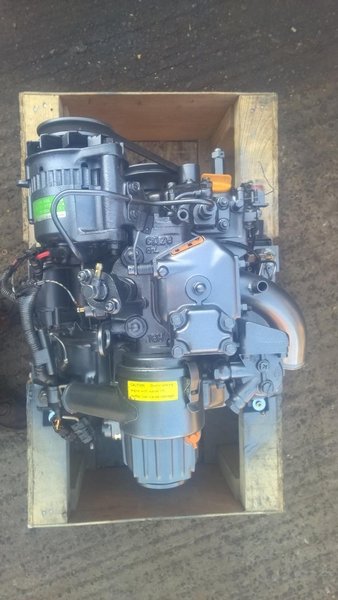

Used Yanmar 1GM10 9HP Marine Diesel Engine
Used Yanmar 1GM10 9hp Single Cylinder Seawater Cooled Marine Diesel Engine Complete With Gearbox, Good Engine Mounts, Control Panel and Wiring Loom. This engine was removed from a Contessa to be replaced with a larger twin cylinder as it was very underpowered for the boat. Year of build approximately 2005/2006 with very little use – estimated to be under 500hrs. The engine has been tested at our workshops and found to be in superb order. Now fully serviced, packaged and ready for any challenge. Rare to see a 1GM10 in genuinely good order.
Manufacturer: Yanmar
Year built: 2006
Power: 9
Motor: 7
Fuel: Diesel
Used Yanmar 1GM10 9HP Marine Diesel Engine Specs
| Brand | Yanmar |
| Full Model Code | 1GM10 |
| Country of Origin | Japan |
| Engine Family/Series | Yanmar GM Ultra-Lightweight Yacht Line |
| Engine Type & Configuration | Single Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Injection (Yanmar Special Swirl Chamber Layout) |
| Displacement | 0.318 Liters / 318 cc |
| Bore x Stroke | 75.0 mm x 72.0 mm |
| Cylinder Count & Valves per Cylinder | 1-Cylinder, 2-Valves (2 Valves Total) |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 9 HP (6.6 kW) @ 3600 RPM Continuous / 10 HP Max @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 19.8 Nm @ 2400 RPM |
| Fuel System & Injection Type] | Yanmar In-line Miniature Mechanical Deck Pump, Indirect Injection |
| Governor Type | Mechanical Centrifugal Variable Control Governor |
| Electrical System Voltage & Alternator Output | 12V System, 55 Amp Hitachi Belt-Driven Marine Alternator |
| Starting System | 12V Electric Starter Motor with Manual Backup Hand Crank & Decompression Lever |
| Cooling System Type | Direct Raw Seawater Cooled (Standard configuration) |
| Lubricating Oil Capacity / Oil Pan Capacity | 1.3 Liters |
| Exhaust Diameter / Exhaust System Type | 40 mm / Water-Injected Wet Mixing Exhaust Elbow |
| Flywheel & Flywheel Housing Size | Integrated Compact Housing Tailored for Yanmar KM2P Mechanical Gearbox |
| Dry Weight without Marine Gear | 71 kg (156 lbs) |
| Dimensions L x W x H | 527 mm x 402 mm x 475 mm |
| Emission Certifications & Duty Rating | EU RCD 1 / Light Auxiliary Pleasure Craft M5 Rating |
| Application | Pocket cruising yachts, small auxiliary sailboats, day-boats, and light wooden sailing tenders (Typical hull lengths 20-26 feet, running straight shaft line or compact saildrive beds). |
