Used Yanmar 3GM30F 24HP Marine Diesel Engine
$1,950.00
In Stock
Description

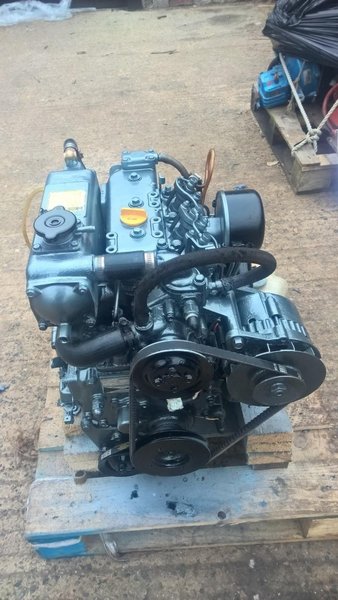

Used Yanmar 3GM30F 24HP Marine Engine
Used Yanmar 3GM30F 24hp Three Cylinder Heat Exchanger Cooled Marine Diesel Engine Package Complete With Gearbox, Control Panel, Wiring Loom & Flex Mountings. Removed as part of a planned repower and tested in good order. Starting well from cold and running exactly as it should. The engine is now packed on a pallet and ready for delivery.
Manufacturer: Yanmar
Year built: 1996
Power: 24
Motor: 18
Fuel: Diesel
Used Yanmar 3GM30F 24HP Marine Diesel Engine Specs
| Brand | Yanmar |
| Full Model Code | 3GM30F ('F' denotes Factory Freshwater/Heat Exchanger Cooled) |
| Country of Origin | Japan |
| Engine Family/Series | Yanmar GM Legendary Cruising Fleet |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Smooth-Running Inboard Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Swirl Chamber Injection |
| Displacement | 0.954 Liters / 954 cc |
| Bore x Stroke | 75.0 mm x 72.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 24 HP (17.7 kW) @ 3400 RPM Continuous / 27 HP Max @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 64 Nm @ 2400 RPM |
| Fuel System & Injection Type] | Mechanical Miniature In-line Injection Pump, Indirect Injection Matrix |
| Governor Type | Mechanical Centrifugal Variable Control System |
| Electrical System Voltage & Alternator Output | 12V System, 55 Amp Internal Regulated Charging Alternator |
| Starting System | 12V Electric Starter Motor with Manual Mechanical Decompression Levers |
| Cooling System Type | Freshwater Cooling Closed Circuit through Integral Shell & Tube Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 2.6 Liters |
| Exhaust Diameter / Exhaust System Type | 50 mm / Water-Injected Wet Overboard Mixing System |
| Flywheel & Flywheel Housing Size | Yanmar Production Block Flange Fitted for KM3P, KM3A Gearboxes or 120S Saildrive Beds |
| Dry Weight without Marine Gear | 130 kg (286 lbs) |
| Dimensions L x W x H | 715 mm x 450 mm x 533 mm |
| Emission Certifications & Duty Rating | EU RCD 1 / Medium-Duty Recreational Auxiliary Sailboat Specification |
| Application | Mid-size coastal cruising sailboats, popular yacht charter vessels, catamaran auxiliary beds, and displacement river craft (Typical hull lengths 28-36 feet, configured with rigid straight shafts or direct Saildrive units). |
