Used Ford 2715E 120HP Marine Diesel Engine
Description
Used Ford 2715E 120HP Marine Diesel Engine

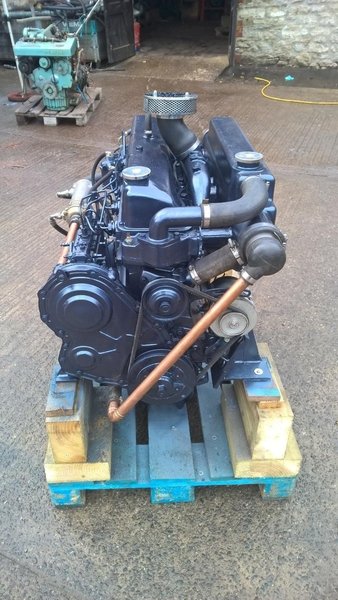

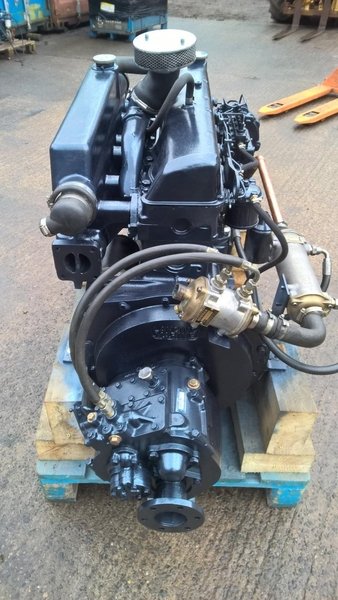

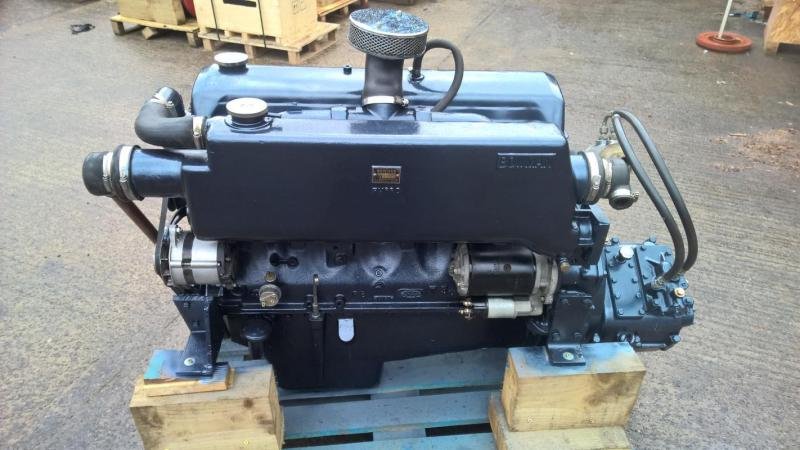

Used Ford 2715E 120hp Six Cylinder Naturally Aspirated Heat Exchanger Cooled Marine Diesel Engine Complete With PRM 301 Hydraulic Gearbox. Taken as a part exchange on a newer turbocharged engine in full running order. Removed from a privately owned cruiser so not used commercially. Running hours approx. 3500 from new. Gearbox removed to check input shaft seal and rear crankshaft oil seal, both of which appeared leak free. No leaks, knocks or strange noises observed during a 1 hour test run. Starts on the button and runs nicely. Marinised by Lancing Marine using the combination manifold heat exchanger with bowman engine and gearbox oil coolers. Serviced, cleaned and repainted by our workshops, ready for work or play.
Manufacturer: Ford
Year built: 1981
Power: 120
Motor: 89
Fuel: Diesel
Used Ford 2715E 120HP Marine Diesel Engine Specs
| Brand | Ford |
| Full Model Code | 2715E (Dorset Series Base) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Ford Dorset Heavy-Duty Engine Family |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Direct Injection |
| Displacement | 6.220 Liters / 6220 cc |
| Bore x Stroke | 107.2 mm x 114.3 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (12 Valves Total) |
| Compression Ratio | 16.0:1 |
| Rated Power / Horsepower | 120 HP (89.5 kW) @ 2500 RPM |
| Maximum Engine Speed / Rated RPM | 2500 RPM |
| Maximum Torque | 385 Nm @ 1600 RPM |
| Fuel System & Injection Type] | Mechanical Simms/Minimec In-line Injection Pump, Multi-Hole Nozzles |
| Governor Type | Mechanical All-Speed Governor |
| Electrical System Voltage & Alternator Output | 12V System, 55 Amp Marine Grade Alternator |
| Starting System | 12V Heavy Duty Electric Starter Motor |
| Cooling System Type | Freshwater Cooled via Bowman-type Shell and Tube Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 16.2 Liters |
| Exhaust Diameter / Exhaust System Type | 76 mm / Water-Cooled Wet Exhaust Elbow |
| Flywheel & Flywheel Housing Size | SAE 3 Flywheel Housing / SAE 10 or 11.5 Flywheel |
| Dry Weight without Marine Gear | 520 kg (1146 lbs) |
| Dimensions L x W x H | 1165 mm x 640 mm x 825 mm |
| Emission Certifications & Duty Rating | Pre-Emission Regulation Era / Continuous Commercial & Heavy Pleasure Duty |
| Application | Heavy displacement trawler yachts, commercial fishing boats, displacement cruisers, and workboats (Typical hull lengths 36-48 feet, conventional shaft drive setup). |
