Used Volvo Penta TAMD122D 480HP Marine Diesel Engine
Description

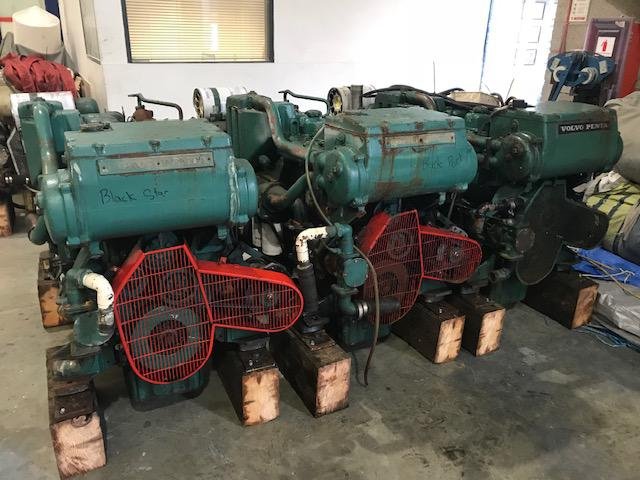

The Used Volvo Penta TAMD122D 480hp @ 2050RPM. Six Cylinder Turbo Intercooled with Heat Exchanger Cooling. We have a number of these engines available with remarkably low running hours (sub 3000 from new). Removed from training vessels as part of a planned upgrade. Engines were sea trialled prior to removal and performed without fault in heavy weather.
The rear of the engines are fitted with PTO flanges which then drove into V drive Twin Disc gearboxes (also available). PTO Flanges can easily be removed to allow fitment of a suitable conventional gearbox. We have four of these units in total and will consider selling single units. They can be supplied in “as removed” condition or fully serviced and repainted dependant on buyers requirements. Instrumentation, extension looms and V drive Twin Disc gearboxes also available by separate negotiation.
Manufacturer: Volvo
Model: Volvo Penta TAMD122D 480hp Marine Diesel – Selection Available
Year built: 1994
Power: 480
Motor: 358
Fuel: Diesel
Used Volvo Penta TAMD122D 480HP Marine Diesel Engine Specs
| Brand | Volvo Penta |
| Full Model Code | TAMD122D |
| Country of Origin | Sweden |
| Engine Family/Series | Volvo Penta 120 Heavy High-Performance Series |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Heavy Duty Direct Injection Marine Diesel |
| Aspiration & Induction System | Turbocharged and Seawater Charge Air Cooled (Intercooled) |
| Displacement | 11.980 Liters / 11980 cc |
| Bore x Stroke | 130.2 mm x 150.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (12 Valves Total) |
| Compression Ratio | 14.8:1 |
| Rated Power / Horsepower | 480 HP (353 kW) @ 2200 RPM (Pleasure Craft Rating) / 400 HP Commercial |
| Maximum Engine Speed / Rated RPM | 2200 RPM |
| Maximum Torque | 1780 Nm @ 1400 RPM |
| Fuel System & Injection Type] | Mechanical Bosch Multi-Plunger In-line Injection Pump, Multi-Hole Injectors |
| Governor Type | Mechanical All-Speed Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 24V System, 60 Amp Marine Grade Charging Alternator |
| Starting System | 24V Heavy Duty Electric Starter Motor |
| Cooling System Type | Freshwater Cooled with High-Flow Cupro-Nickel Tube and Shell Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 35.0 Liters |
| Exhaust Diameter / Exhaust System Type | 150 mm / Twin-Wall Waterjacketed Turbocharged Wet Exhaust Output |
| Flywheel & Flywheel Housing Size | SAE 1 Flywheel Housing Standard Configuration |
| Dry Weight without Marine Gear | 1290 kg (2844 lbs) |
| Dimensions L x W x H | 1445 mm x 892 mm x 1105 mm |
| Emission Certifications & Duty Rating | Pre-Tier Regulatory Controls / Continuous Commercial Heavy Duty or Fast Pleasure Yacht |
| Application | Commercial fishing vessels, offshore charter hulls, pilot boats, passenger ferries, and heavy motor yachts (Typical hull lengths 45-65 feet, running high-torque heavy shaft lines or deep ratio transmissions). |
