Used Volvo Penta TMD40B 136HP Marine Diesel Engine
$3,367.00
In Stock
Description

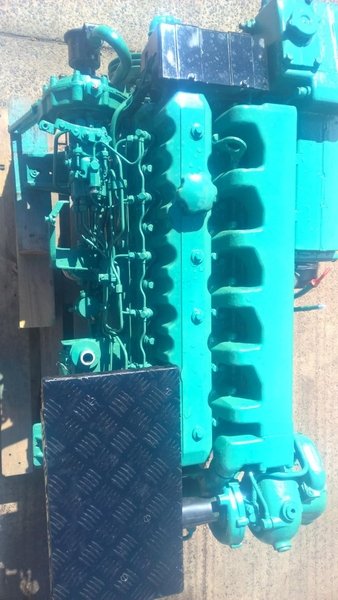

Used Volvo Penta TMD40B 136HP Marine Diesel Engine
Used Volvo Penta TMD40B 136hp Six Cylinder Turbocharged 3.6L Heat Exchanger Cooled Marine Diesel Engine Package Complete With PRM 401 2:1 Reduction Hydraulic Gearbox & Control Panel (12V Electrics). Removed from a small workboat having run approx. 4000Hrs from new and in full working order. It has been run at our workshops where it started and ran nicely with good oil pressure and no smoke at all. It has undergone a full service and has also been steam cleaned and repainted to a good standard. It is now packaged on a transport stand and ready for delivery to a new owner.
Manufacturer: Volvo
Model: Volvo Penta TMD40B 136hp Marine Diesel Engine Package
Year built: 1979
Power: 136
Motor: 101
Fuel: Diesel
Used Volvo Penta TMD40B 136HP Marine Diesel Engine Specs
| Brand | Volvo Penta |
| Full Model Code | TMD40B (40 Series Refined Classic) |
| Country of Origin | Sweden |
| Engine Family/Series | Volvo Penta 40 Series Smooth-Running Marine Range |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Turbocharged |
| Displacement | 3.590 Liters / 3590 cc |
| Bore x Stroke | 92.0 mm x 90.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (12 Valves Total) |
| Compression Ratio | 21.0:1 (Swirl Pre-Chamber Layout) |
| Rated Power / Horsepower | 136 HP (100 kW) @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 315 Nm @ 2200 RPM |
| Fuel System & Injection Type] | Mechanical Bosch VE Rotary Distributor Pump, Indirect Injection (Pre-combustion Chambers) |
| Governor Type | Mechanical Centrifugal Variable Control Governor |
| Electrical System Voltage & Alternator Output | 12V System, 60 Amp Alternator with Internal Regulator |
| Starting System | 12V Electric Starter Motor with Quick Preheat Engine Controls |
| Cooling System Type | Freshwater Cooled Closed Loop Core with Interlinked Sea-Water Heat Exchanger (Improved Core Flow) |
| Lubricating Oil Capacity / Oil Pan Capacity | 11.0 Liters |
| Exhaust Diameter / Exhaust System Type | 90 mm / Cast Iron Water-Injected Marine Wet Mixing Elbow Assembly |
| Flywheel & Flywheel Housing Size | Standard Matrix Interface for MS3C / MS4A Gearboxes or 290 Aquamatic Sterndrives |
| Dry Weight without Marine Gear | 415 kg (915 lbs) |
| Dimensions L x W x H | 1095 mm x 610 mm x 725 mm |
| Emission Certifications & Duty Rating | Pre-Tier Regulatory Controls Era / Standard Recreational Pleasure Craft Duty Layout |
| Application | Classic twin-engine sports cruisers, semi-displacement family yachts, and traditional displacement motor vessels (Typical hull lengths 32-42 feet, engineered for clean, exceptionally low-vibration performance on a standard straight shaft layout). |
