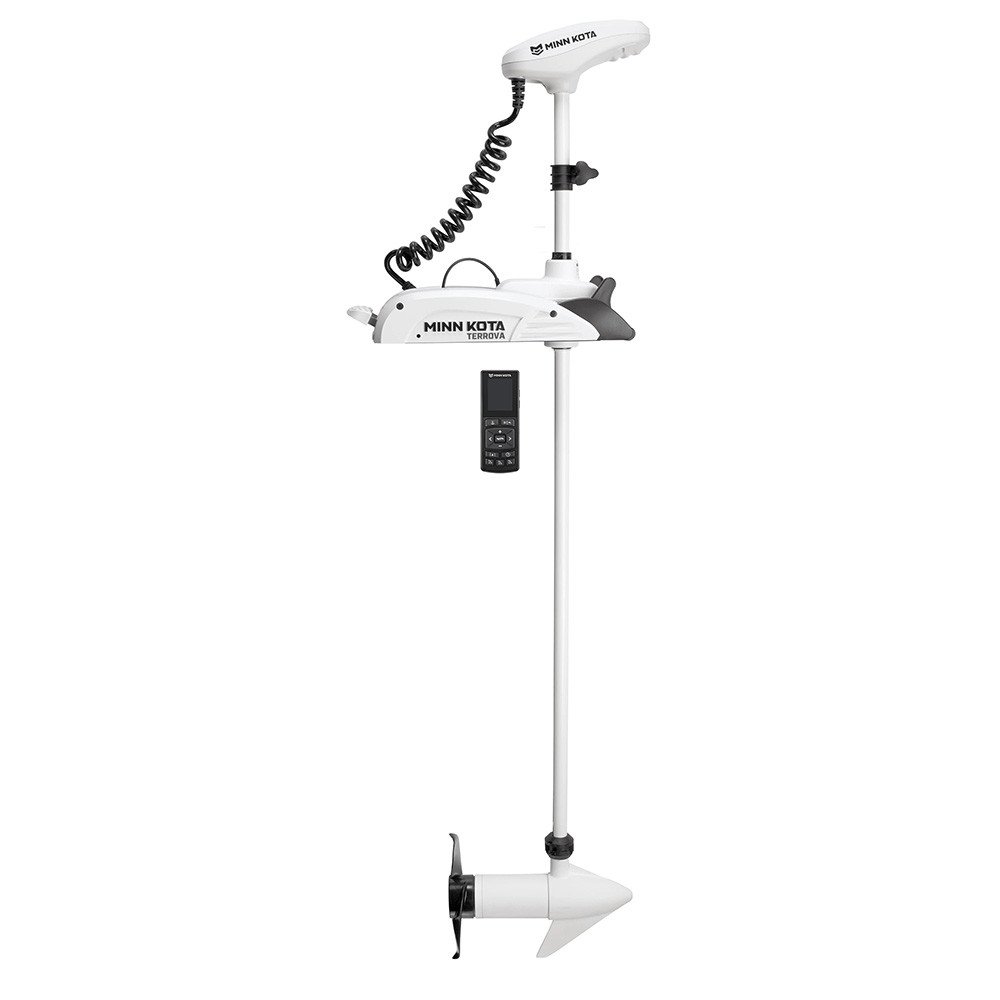

Minn Kota Riptide Terrova 55 Trolling Motor

Description

Eliminate inshore boat drift using the Minn Kota Riptide Terrova 55 Motor, delivering precise GPS Spot-Lock virtual anchoring for coastal flats skiffs and bay boats. Supplying 55 lbs of thrust on an efficient 12V DC electrical system, this 54-inch bow-mount motor powers shallow-water anglers through mangrove shorelines without saltwater galvanic corrosion.

An extruded aluminum pivot mount secures the lower unit, treated with multi-layer epoxy powder coating and an integrated sacrificial zinc anode to resist salt spray. The indestructible composite shaft flexes upon oyster reef impacts without structural delamination. Weighing 43 lbs dry, this 12V motor demands a maximum continuous draw of 50A across a stowed foredeck boundary measuring 65 inches long by 11 inches wide.

Key Features of Minn Kota Riptide Terrova 55

Coastal fishermen who buy Minn Kota Riptide Terrova 55 motor hardware acquire dependable boat control for saltwater GPS anchor motor installations. Its wireless handheld remote provides full autopilot steering from poling platforms or casting decks, freeing anglers to cast toward shoreline docks hands-free.

• 55 lbs of peak thrust controls shallow flats skiffs against stiff winds and tidal outflows.
• 54-inch composite shaft keeps the lower unit submerged through coastal boat wakes and rolling chop.
• Spot-Lock GPS virtual anchor locks vessel positions within feet using real-time satellite position correction.
• Advanced corrosion protection includes grit-blasted aluminum housings and thermal-bonded epoxy powder coatings.
• Riptide Terrova 55 inshore bow motor features an ergonomic wireless remote control with an illuminated display screen.
• Digital Maximizer speed modulation draws energy only as needed to extend battery runtime fivefold.
• Weedless Wedge 2 propeller features swept-back blades that push through floating grass mats without bogging.
• Lift-assist mechanism reduces physical deployment pull force in half using internal nitrogen gas spring cylinders.

Thrust Curves Battery Amp Draw

Generating 55 lbs of static thrust at maximum speed, this 12V motor draws 50A under wide-open throttle, running efficiently on digital PWM circuits. Powered by a single 12V 100Ah deep-cycle marine lithium battery, it sustains over 7 continuous hours of trolling at half throttle. The motor pod operates quietly underwater, generating under 38 dB(A) to avoid spooking wary redfish in crystal-clear shallows.

Bow Deck Installation Geometry Clearances

Mount the aluminum base directly to the forward gunwale using six marine-grade stainless machine bolts, ensuring 4 inches of forward overhang beyond the rubrail. Wire the system through an approved 50A manual-reset waterproof marine circuit breaker using 6 AWG tinned copper wire. The base plate matches standard Terrova quick-release pucks.

Deck Usability Rigging Inspection Tasks

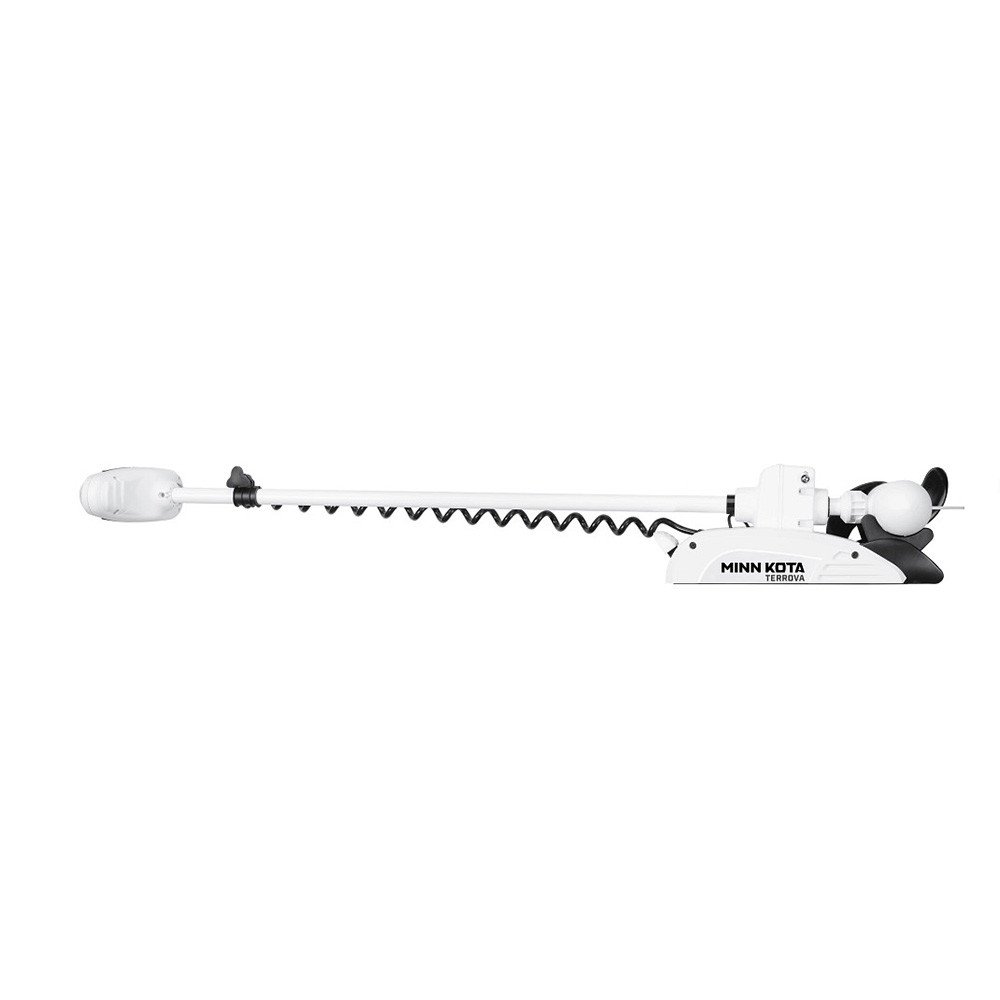

Deploying the motor requires pressing the master release lever and guiding the composite shaft forward into vertical locked position. This 12V motor is not engineered for deep-draft fiberglass offshore vessels, commercial tugs, or multi-species boats with bow freeboards exceeding 28 inches.

• Rinse the entire motor assembly, shaft, and pivot bracket thoroughly with freshwater after each outing.
• Inspect the sacrificial zinc anode for oxidation wear and replace when half depleted.
• Inspect compact battery connections and test 50A circuit breaker contacts every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota backs this saltwater motor with a 2-Year limited warranty and a lifetime composite shaft guarantee. The factory shipment includes the Minn Kota Riptide Terrova 55 motor, wireless remote, heading sensor puck, Weedless Wedge 2 prop, sacrificial zinc anode, and mounting hardware kit.
