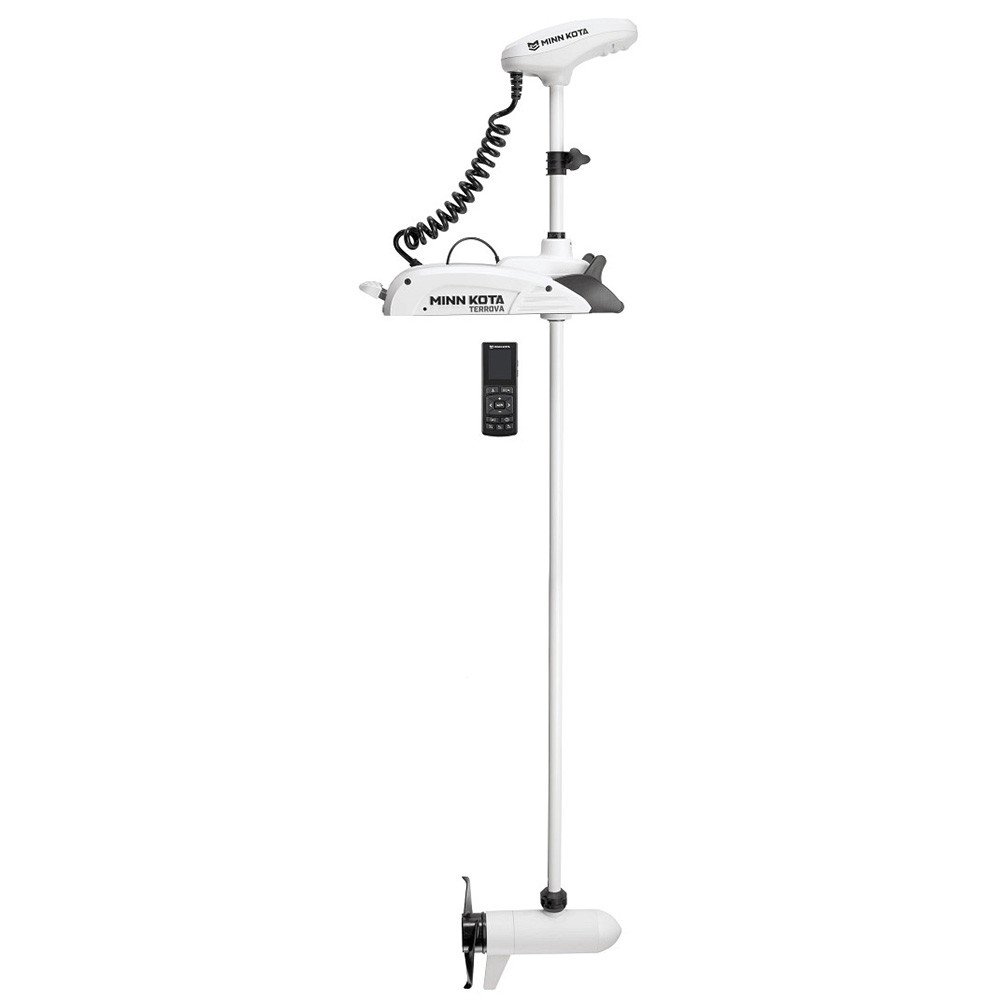

Minn Kota Riptide Terrova 80 Trolling Motor

Description

Ripping ocean passes blow skiffs off structure, making the Minn Kota Riptide Terrova 80 Motor the premier GPS-enabled bow propulsion system for coastal bay boats and offshore center consoles. Delivering 80 lbs of thrust on a clean 24V DC electrical architecture with an extra-long 72-inch composite shaft, this motor holds heavy hulls over submerged wrecks without anchor chain noise.

An anodized aluminum pivot mount supports an indestructible composite shaft designed to flex upon underwater obstruction impacts without structural fracture. The lower unit features fully encapsulated control boards sealed in marine-grade urethane to isolate circuits from coastal salt air. Weighing 52 lbs dry, this 24V motor draws 56A at wide-open throttle, occupying a stowed boundary measuring 82 inches long by 12 inches wide.

Key Features of Minn Kota Riptide Terrova 80

Offshore guides who buy Minn Kota Riptide Terrova 80 motor packages secure pro-grade boat positioning for saltwater GPS anchor motor setups. Advanced GPS algorithms eliminate anchor drift, allowing anglers to hold position over deep rock piles while pitch-baiting pelagic gamefish in choppy ocean swells.

• 80 lbs of peak thrust controls bay boats and center consoles against heavy tidal rip currents.
• 72-inch composite shaft maintains propeller immersion through four-foot ocean swells without cavitation blowout.
• Spot-Lock GPS virtual anchor locks vessel positions within feet using real-time satellite position correction.
• Advanced corrosion protection includes grit-blasted aluminum housings and thermal-bonded epoxy powder coatings.
• Riptide Terrova 80 saltwater bow motor platform features an ergonomic wireless remote control with an illuminated screen.
• Digital Maximizer speed modulation draws energy only as needed to conserve 24V battery capacity.
• Weedless Wedge 2 propeller features swept-back blades that push through hydrilla mats without bogging.
• Lift-assist stow mechanism cuts physical deployment force in half using internal nitrogen gas springs.

Thrust Curves Battery Amp Draw

Generating 80 lbs of static thrust on 24V DC power, this motor pulls 56A under full load while maintaining cool operating temperatures inside the motor pod. Operating on two 12V 100Ah lithium batteries provides over 14 continuous hours of inshore drift control at 50 percent throttle. The high-torque armature slices through thick vegetation without tripping breakers, holding sound levels under 38 dB(A).

Bow Deck Installation Geometry Clearances

Secure the extruded aluminum base to the forward boat deck using six marine-grade stainless steel machine bolts, allowing 4.5 inches of forward overhang past the rubrail. Ensure seamless connection to a 60A waterproof manual-reset marine circuit breaker using 6 AWG tinned marine copper wire. The base plate matches standard offshore deck mounting bolt patterns.

Deck Usability Rigging Inspection Tasks

Stowing the motor involves depressing the master release lever and sliding the composite shaft upward into the deck cradle until it latches. This 72-inch motor is not engineered for low-freeboard bass boats, shallow river canoes, or vessels with bow gunwales lower than 24 inches.

• Rinse the entire motor assembly, shaft, and pivot bracket thoroughly with freshwater after each outing.
• Inspect the sacrificial zinc anode for oxidation wear and replace when half depleted.
• Verify 24V series jumper cable integrity and check terminal tightness every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota covers this saltwater unit with a 2-Year limited warranty and a lifetime composite shaft guarantee. The carton delivers the Minn Kota Riptide Terrova 80 motor, wireless remote, heading sensor puck, Weedless Wedge 2 prop, sacrificial zinc anode, mounting hardware kit, and user guide.
