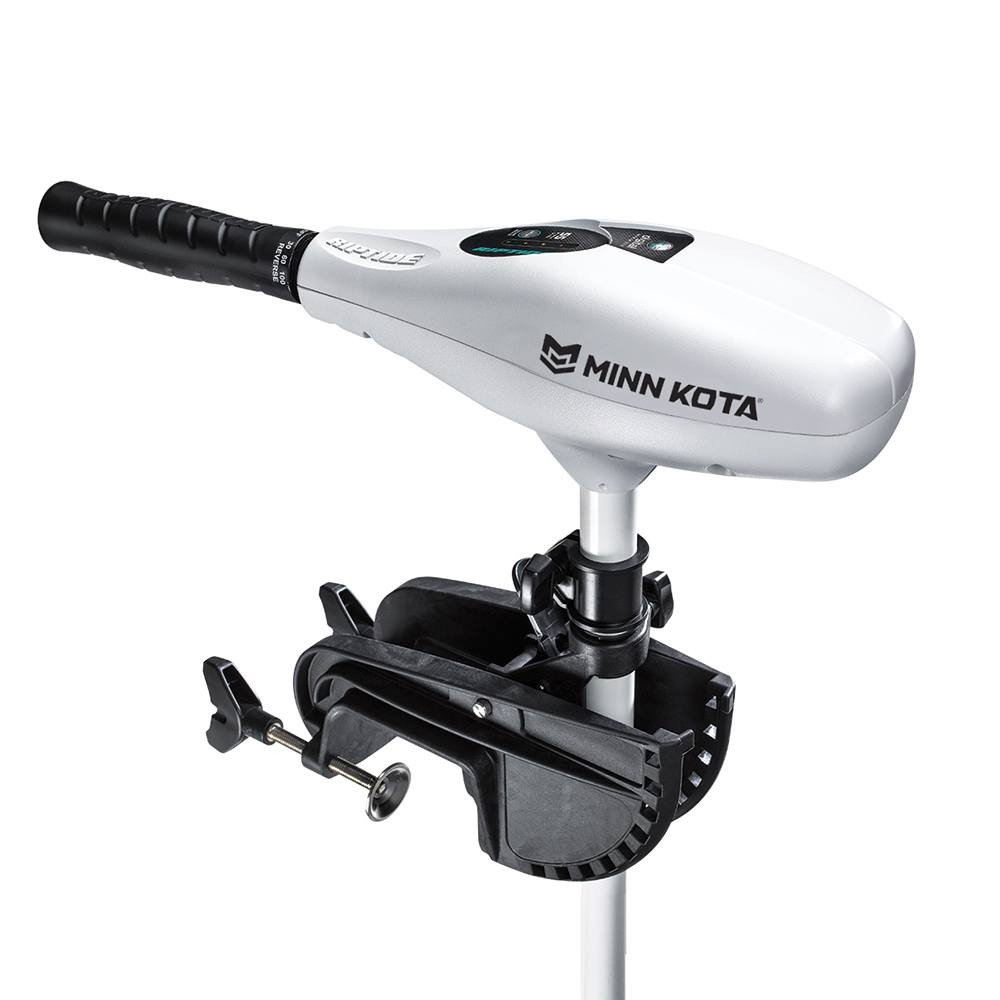

Minn Kota Riptide RT80 Trolling Motor Saltwater Transom Mount

Description

During strong coastal inlet tide changes, the Minn Kota Riptide RT80 Transom Motor delivers heavy-duty 24V thrust to hold displacement hulls and coastal skiffs against ripping saltwater currents. Producing 80 lbs of thrust with a 42-inch composite shaft, this transom-mount motor powers skiffs through narrow mangrove channels without electrical overheating.

A heavy-duty machined aluminum transom bracket with dual stainless steel clamp screws provides rock-solid holding power under maximum reverse thrust. The fully encapsulated lower unit utilizes high-grade copper windings and an integrated sacrificial zinc anode. Weighing 42 lbs dry, this 24V motor pulls a maximum of 56A at full throttle, mounting securely onto boat transoms up to 3 inches thick.

Key Features of Minn Kota Riptide RT80 Transom

Charter guides who buy Minn Kota Riptide RT80 transom motor units secure rugged auxiliary boat control for saltwater skiff rigging. Its Quick Tilt Cam bracket features ten position stops, allowing captains to tilt the lower unit out of the water quickly when approaching shallow sandbars.

• 80 lbs of peak thrust moves loaded 18-foot to 21-foot skiffs and coastal work tenders through heavy tidal rip currents.
• 42-inch composite shaft withstands brutal oyster bar strikes without cracking or kinking under load.
• 24V DC electrical design balances high thrust output with efficient energy draw across long fishing shifts.
• Telescoping tiller handle extends six inches to provide comfortable steering control from any cockpit position.
• Riptide RT80 transom mount motor features Digital Maximizer variable speed selection for precise boat positioning.
• Machined aluminum transom bracket incorporates ten tilt positions and a quick-release depth collar.
• Sacrificial zinc anode mounted to the lower unit prevents galvanic pitting in high-salinity coastal waters.
• Weedless Wedge 2 propeller features swept-back blades that push through floating grass mats without bogging.

Thrust Output Amp Draw Efficiencies

Generating 80 lbs of static thrust on 24V DC power, this motor pulls 56A under full load while maintaining cool operating temperatures inside the motor pod. Operating on two 12V 100Ah lithium batteries provides over 14 continuous hours of inshore drift control at 50 percent throttle. The high-torque armature slices through thick vegetation without tripping breakers, holding sound levels under 38 dB(A).

Transom Mounting Bracket Geometry Clearances

Clamp the heavy-duty aluminum bracket onto the boat transom using dual stainless steel clamp screws, ensuring 2 inches of clearance between the propeller and hull bottom. Run 6 AWG tinned copper wire from the battery compartment to an approved 60A manual-reset marine circuit breaker. The clamp bracket mounts securely to flat transoms up to 3 inches thick.

Deck Usability Rigging Inspection Tasks

Adjusting running depth involves loosening the quick-release depth collar and sliding the composite shaft to the desired water depth. This 24V transom motor is not engineered for bow-mount applications, high-freeboard center consoles, or vessels displacing over 3500 lbs.

• Rinse the entire motor assembly, shaft, and clamp bracket thoroughly with freshwater after each outing.
• Inspect the sacrificial zinc anode for oxidation wear and replace when half depleted.
• Verify 24V series jumper cable integrity and check terminal tightness every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota backs this motor with a 2-Year limited warranty and a lifetime composite shaft guarantee. The factory package contains the Minn Kota Riptide RT80 Transom motor, tiller handle assembly, Weedless Wedge 2 prop, sacrificial zinc anode, and operator manual.
