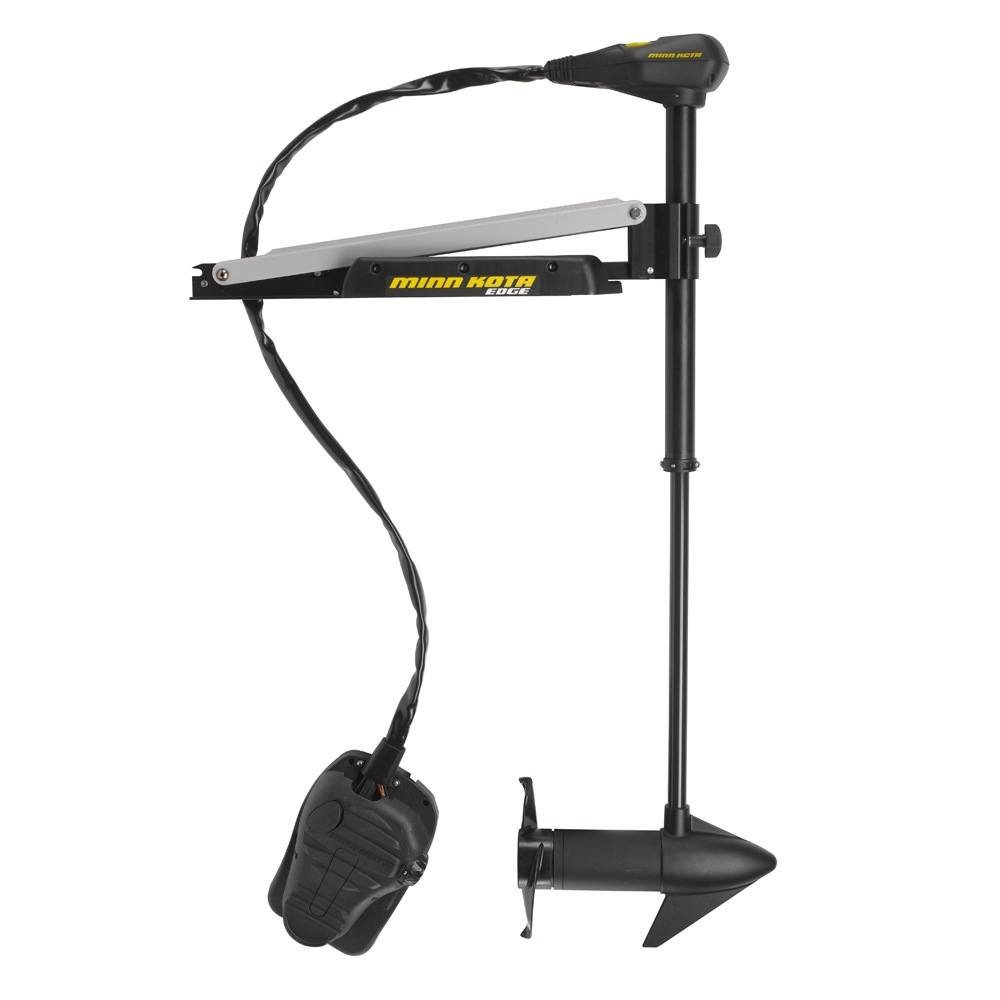

Minn Kota Edge 70 Trolling Motor

Description

Seeking heavy 24V cable-steer bow control? The Minn Kota Edge 70 Trolling Motor delivers rugged mechanical steering and 70 lbs of thrust to control medium-sized tournament bass boats through heavy lake chop. Equipped with a 52-inch composite shaft, this 24V motor powers forward casting decks through thick weed mats without hesitation.

Constructed around a heavy-duty extruded aluminum upper arm, the latch-and-door bracket eliminates flex during sudden directional reversals. The composite shaft bends under severe underwater stump impacts, springing back straight without permanent damage. Weighing 42 lbs dry, this 24V motor draws 42A at wide-open throttle, occupying a stowed deck boundary measuring 62 inches long by 11 inches wide.

Key Features of Minn Kota Edge 70

Anglers who buy Minn Kota Edge 70 trolling motor units secure powerful 24V mechanical steering for freshwater bass boat rigging. Operating on two series-connected marine batteries, this motor delivers prolonged fishing endurance, maintaining steady headway against stiff river currents through full day tournament shifts.

• 70 lbs of peak thrust moves loaded 18-foot to 20-foot fiberglass bass boats through heavy reservoir current.
• 52-inch composite shaft keeps the propeller submerged during choppy waves on windy main lake points.
• 24V DC electrical design balances high thrust output with moderate 42A peak current consumption.
• Mechanical cable-steer foot pedal provides zero-latency steering response for precise dock shooting.
• Edge 70 tournament bow mount system features five forward speeds to match shoreline trolling speeds.
• Extruded aircraft aluminum mount provides rigid support during full-throttle propulsion maneuvers.
• Power Prop pushes through floating milfoil and hyacinth mats without stalling the motor armature.
• Illuminated directional indicator head shows prop direction clearly in pitch-black morning launch conditions.

Thrust Output Amp Draw Efficiencies

Delivering 70 lbs of static thrust on 24V power, this motor pulls 42A at speed five, running significantly cooler than high-amp 12V systems. Powered by two 12V 100Ah marine batteries, it yields over 14 continuous hours of fishing operation at speed three. The balanced motor armature dissipates heat effectively through the aluminum housing, emitting under 39 dB(A) of underwater sound.

Bow Deck Installation Geometry Clearances

Secure the aluminum mounting channel to the forward deck using six stainless machine bolts, allowing 4 inches of forward overhang beyond the rubrail. Wire the power leads to an inline 50A or 60A manual-reset marine circuit breaker using 6 AWG copper cable. The bracket matches standard Minn Kota bow mounting profiles.

Deck Usability Rigging Inspection Tasks

Stowing the motor involves pulling the latch cord to disengage the locking bar and swinging the lower unit onto the deck ramp. This 24V cable-steer motor is not engineered for offshore saltwater center consoles, deep-draft ocean hulls, or vessels requiring wireless GPS virtual anchoring.

• Check behind the prop hub for weed buildup and clean the drive pin after each outing.
• Wash mud and debris from the foot pedal slider tracks with clean water after each outing.
• Verify 24V series jumper cable integrity and check terminal tightness every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota protects this motor with a 2-Year limited warranty and a lifetime composite shaft guarantee. The crate includes the Minn Kota Edge 70 motor, cable foot pedal, Power Prop, mounting hardware kit, hold-down strap, and instruction manual.
