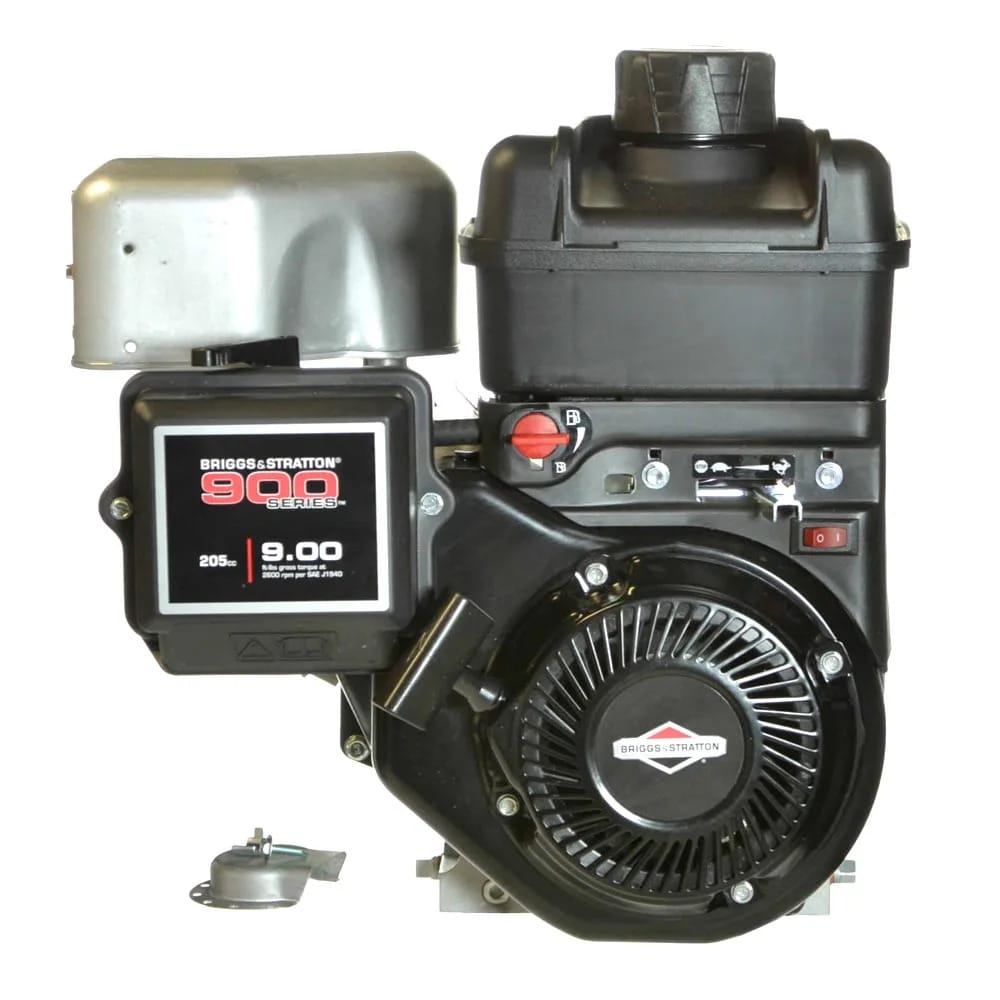

Briggs & Stratton 12S402-0028-F8 205cc Engine

Description

The Briggs & Stratton 12S402-0028-F8 horizontal engine solves commercial equipment repower challenges through universal mounting dimensions and reliable overhead valve torque. Commercial contractors face lost revenue when utility power units fail during critical concrete pours or trench pumping operations. This 205cc 900 Series engine provides dependable mechanical power, running steadily under heavy continuous throttle without overheating or dropping RPM.

An efficient combustion chamber burns fuel thoroughly, keeping carbon deposits off the intake and exhaust valve faces. Internal splash lubrication feeds continuous oil to the connecting rod journal and piston pin, protecting bearing surfaces during full-load operations. The heavy-duty recoil starter uses an automatic mechanical decompressor that vents cylinder pressure during cranking, making pull-starts smooth and quick on cold mornings.

Engine Architecture of Briggs & Stratton 12S402-0028-F8

• 205cc Overhead Valve Powerplant: Produces 9.00 gross torque ft-lbs for commercial construction and utility equipment.
• Universal Horizontal PTO Shaft: Matches standard industrial drive couplings, clutches, and pulleys across various machinery.
• Mechanical Automatic Decompression: Reduces recoil pull effort so operators start the engine quickly in cold weather.
• Heavy-Duty Crankcase Sump: Holds ample oil volume to dissipate thermal energy during long commercial runs.
• Maxi-Clean Air Cleaner Assembly: Seals out abrasive dust to protect the cylinder bore and maintain engine compression.
• Sound-Dampening Aluminized Muffler: Lowers operational noise levels to comply with municipal decibel restrictions.

Commercial Utility Stamina & Lifespan

Engineered for continuous commercial operation where equipment failure halts company revenue, this platform delivers reliable mechanical output.

• A rigid aluminum crankcase casting maintains shaft alignment under severe belt drive tension.
• High combustion efficiency lowers fuel burn per jobsite shift, cutting daily operating expenses.
• Equipment rental businesses and general contractors secure dependable power for diverse jobsite tools.

Chassis Integration & Industrial Fitment

Weighing 33 pounds with a standard universal four-bolt horizontal base pattern, this engine fits commercial plate compactors, concrete finishing tools, dewatering trash pumps, and agricultural sprayers without adapter plates.

Commercial Warranty & Field Maintenance

• Factory warranty terms provide two years of commercial and consumer coverage on all core mechanical assemblies.

Change oil after the first 20 operating hours, then maintain 100-hour service intervals using 10W-30 oil. Tap clean the air filter element weekly on dusty jobsites, and check the spark plug gap at 0.030 inches. Order the Briggs & Stratton 12S402-0028-F8 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
