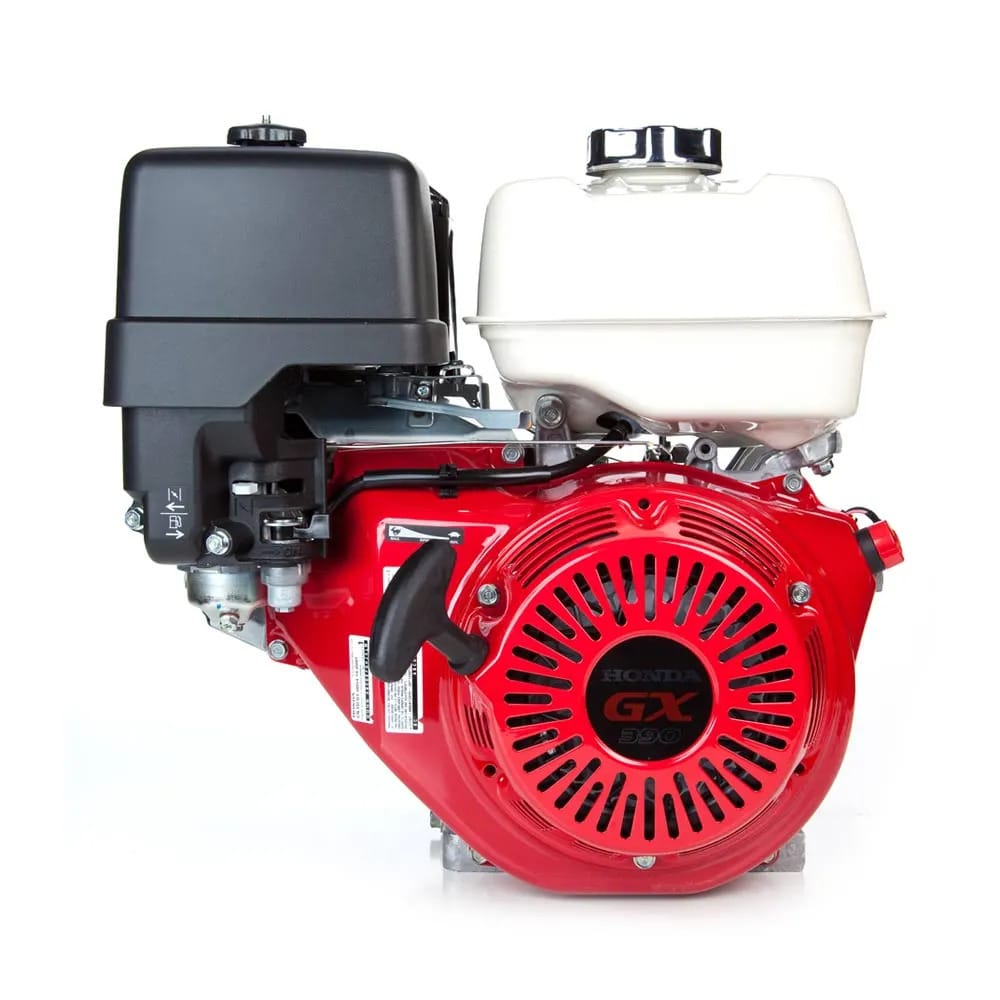

Honda GX390 11.7HP 389cc Engine – 1in Shaft, Forced Air Cooled (ID 18215)

Description

Pressure washing contractors relying on the Honda GX390 horizontal engine (ID 18215) eliminate unexpected pump stalls and heat-related power loss during all-day surface cleaning jobs. Direct-drive triplex water pumps running at 4000 PSI transmit intense back-pressure resistance back into the engine crankshaft, warping light-duty powerheads and cracking crankcase flanges. Honda equips this 389cc 11.7HP engine with an oversized 1-inch straight output shaft, heavy-duty insert bearings, and cast-iron cylinder liners engineered to absorb harsh load spikes.

An oversized dual-element air cleaner stops fine mist and airborne debris from reaching the intake tract, keeping valve faces sealed across long washing shifts. Splash lubrication channels continuous oil to connecting rod journals, preventing metal-on-metal friction under sustained full-throttle operation. The heavy-duty manual recoil starter uses an automatic mechanical decompressor that vents cylinder pressure during cranking, making pull-starts smooth and quick on cold mornings.

Core Mechanical Specifications of Honda GX390 (ID 18215)

• 389cc 11.7HP Commercial OHV Engine: Delivers crisp throttle response and high thermal efficiency for pressure washing equipment.
• 1-Inch Straight Keyed Shaft: Standard commercial diameter matches direct-drive triplex water pumps and multi-groove pulleys.
• Heavy Cast-Iron Cylinder Sleeves: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual Ball Bearing Crank Support: Stabilizes the PTO crankshaft end against severe lateral belt tension and chain drive whip.
• Dual-Stage Commercial Air Cleaner: Traps fine dust particles across two media layers to preserve cylinder wall compression.
• Integrated Honda Oil Alert: Protects internal mechanical parts by shutting off spark if crankcase fluid levels drop.
• 6.4-Quart Metal Fuel Tank: Includes an internal debris strainer and fuel shutoff valve for safe equipment transport.

Contractor Benefits & Long-Term Reliability

This single-cylinder commercial engine delivers high turning force to keep pressure washing crews productive on tight project schedules.

• A reinforced crankcase base casting absorbs vibrational harmonics from continuous high-pressure pumping.
• Clean fuel combustion keeps carbon out of piston ring grooves, preserving compression and reducing oil consumption.

Machinery Compatibility & Chassis Mounting

Weighing 69 pounds dry with a standard commercial horizontal mounting pattern and 1-inch shaft, this engine bolts onto cold-water pressure washers, commercial turf sprayers, hydraulic power packs, and utility generators without frame alterations.

Factory Warranty Terms & Service Guidelines

• Honda backs this engine with 3-Year limited warranty coverage for commercial and consumer service.

Field maintenance includes checking oil levels before each morning shift, changing oil every 100 hours with 10W-30 oil, inspecting the air filter cartridge, and setting spark plug electrode gap to 0.028 to 0.031 inches. Order the Honda GX390 horizontal shaft engine (ID 18215) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
