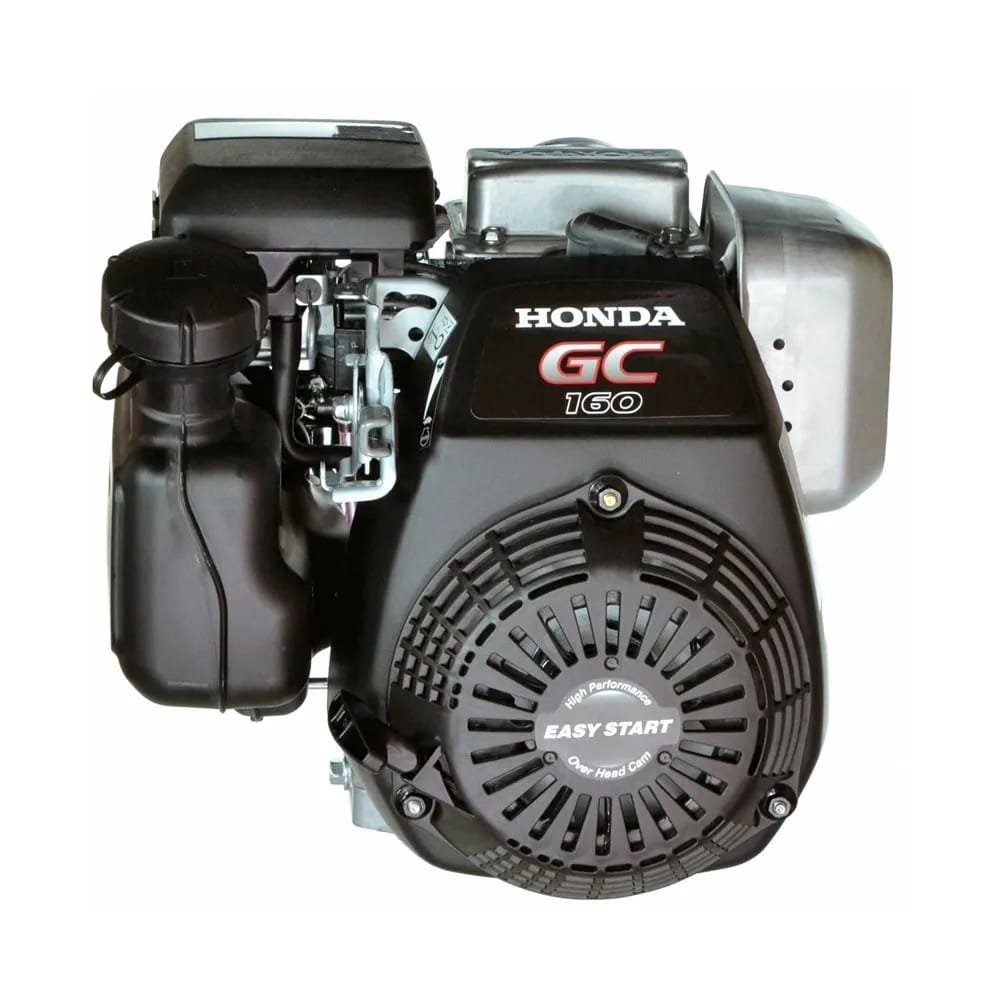

Honda GC160-MHAB 4.6HP Horizontal Engine
$161.00
In Stock
Honda GC160-MHAB Technical Specs
| Brand | Honda |
| Full Model Code | GC160-MHAB |
| Country of Origin | USA/Japan Design |
| Engine Orientation | Horizontal Shaft |
| Engine Type | 4-Stroke, OHC, Single Cylinder |
| Displacement | 160 cc |
| Bore x Stroke | 64 x 50 mm |
| Compression Ratio | 8.5:1 |
| Maximum Output | 3.4 kW (4.6 HP) @ 3600 RPM |
| Maximum Torque | 9.4 Nm (6.9 lbs-ft) @ 2500 RPM |
| Specific Fuel Consumption | 1.1 L/hr @ 3600 RPM |
| Fuel Induction System | Butterfly Carburetor (Fixed Speed Config) |
| Ignition System | Transistorized Magneto |
| Start System | Recoil Start |
| Shaft Specification | 7/8" (22.2 mm) Straight Keyway Shaft |
| Fuel Tank Capacity | 1.8 Liters |
| Oil Capacity & Type | 0.58 Liters / SAE 10W-30 |
| Cooling System | Forced Air Cooled |
| Dry Weight | 11.5 kg |
| Dimensions | 337 x 362 x 331 mm |
| Standard Warranty | 2 Years (Consumer) |
| Primary Application | OEM Pressure Washers, Specialized Utility Equipment |
Honda GC160-MHAB Engine Included:
- 1x New GC160-MHAB 4.6HP Horizontal Engine
- 1x Specialized Inside Threaded Internal Tapered Shaft
- 1x High Performance Overhead Cam OHC Design
- 1x High Efficiency Compact Resin Camshaft Internal
- 1x Reliable Mechanical Flyweight Governor Control System
- 1x Compact Maintenance Free Integrated Fuel Tank
- 1x Official Honda Engines Limited Warranty Card
- 1x Technical Replacement Engine Operation Manual Guide
