Used Vetus M2.04 11HP Marine Diesel Engine
$1,575.00
In Stock
Description

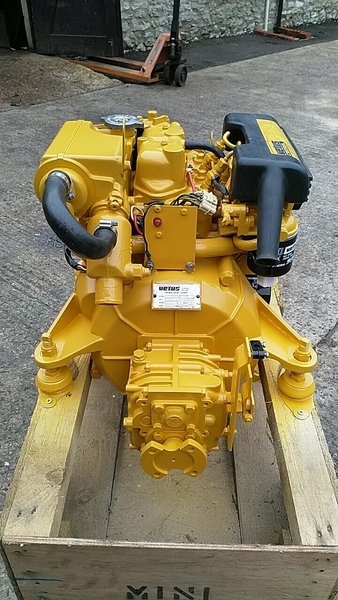

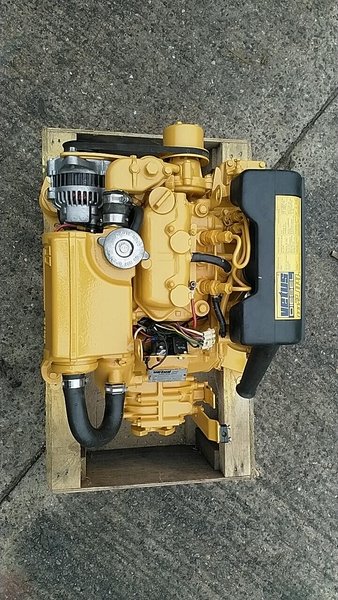

Used Vetus M2.04 11HP Marine Diesel Engine
Used Vetus M2.04 11hp Twin Cylinder Heat Exchanger Cooled Marine Diesel Engine Package With Hurth 2:1 Gearbox, Control Panel & Extension Loom. Taken in part exchange against a larger Vetus M3.29 package in full running order. Very low hours from new and in excellent order with a recent new heat exchanger assembly. Test run, cleaned and repainted and fully serviced ready to go to work. Based on a Mitsubishi industrial engine, these units are very light and compact – ideal for tight spaces.
Manufacturer: Vetus
Model: Vetus M2.04 11hp Marine Diesel Engine Package
Year built: 1986
Power: 11
Motor: 8
Fuel: Diesel
Used Vetus M2.04 11HP Marine Diesel Engine Specs
| Brand | Vetus |
| Full Model Code | M2.04 (Mitsubishi L2E Base) |
| Country of Origin | Netherlands |
| Engine Family/Series | Vetus M-Line Propulsion Series |
| Engine Type & Configuration | Inline 2-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Indirect Swirl Chamber Injection |
| Displacement | 0.635 Liters / 635 cc |
| Bore x Stroke | 76.0 mm x 70.0 mm |
| Cylinder Count & Valves per Cylinder | 2-Cylinder, 2-Valves per Cylinder (4 Valves Total) |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 11 HP (8.1 kW) @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM |
| Maximum Torque | 33.8 Nm @ 2400 RPM |
| Fuel System & Injection Type] | Mechanical Bosch-Type In-line Injection Pump, Indirect Injection |
| Governor Type | Mechanical Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System, 75 Amp Alternator with Internal Regulation |
| Starting System | 12V Electric Starter Motor with Fast Preheat Glow Plugs |
| Cooling System Type | Freshwater Cooled via High-Efficiency Shell and Tube Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 2.4 Liters |
| Exhaust Diameter / Exhaust System Type | 40 mm / Water-Injected Wet Exhaust Mixing Elbow |
| Flywheel & Flywheel Housing Size | Custom Compact Vetus Adapter Housing Pattern |
| Dry Weight without Marine Gear | 78 kg (172 lbs) |
| Dimensions L x W x H | 489 mm x 425 mm x 490 mm |
| Emission Certifications & Duty Rating | EU RCD 1, EPA Tier 2 Compliant / M5 Recreational Pleasure Craft Duty |
| Application | Auxiliary propulsion for pocket sailing yachts, day-boats, small displacement river craft, and tender vessels (Typical hull lengths 18-25 feet, shaft drive or Saildrive alignment). |
