Used Nanni 5.250TDI 85HP Marine Diesel Engine
$3,300.00
In Stock
Description

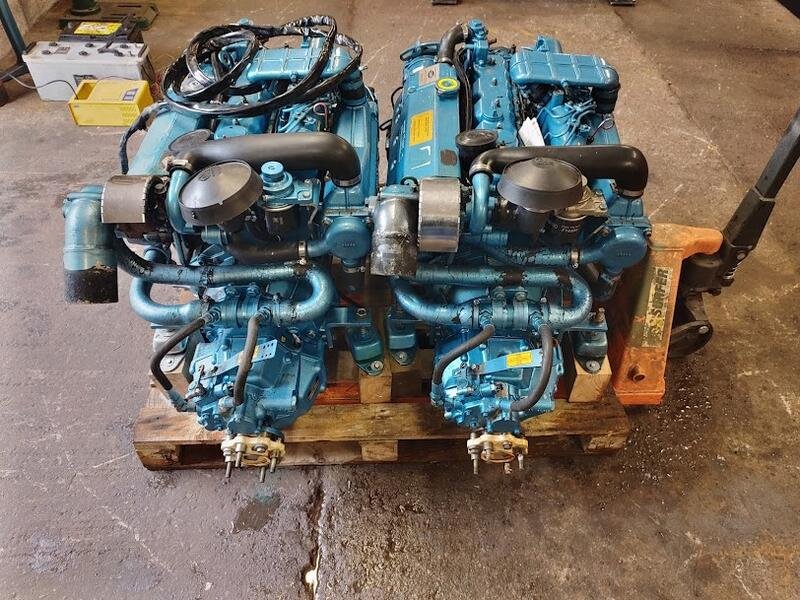

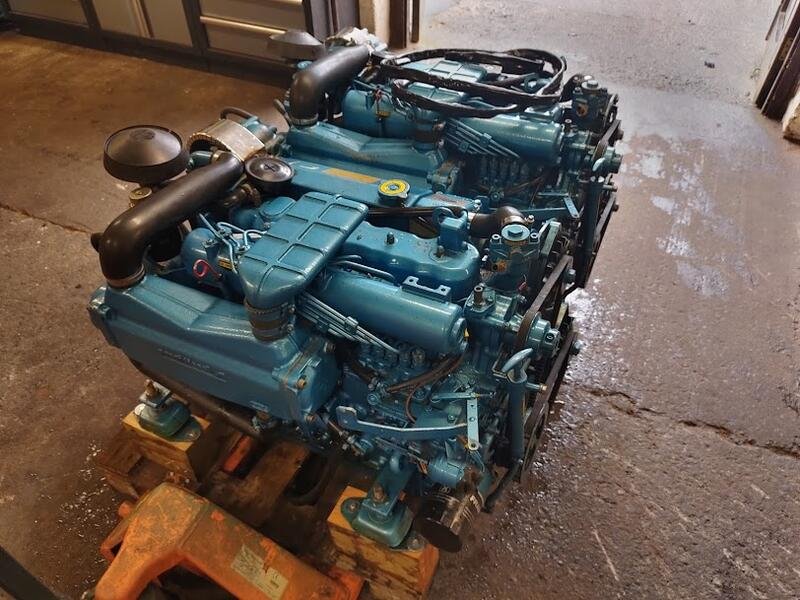

Used Nanni 5.250TDI 85hp Five Cylinder Turbo Intercooled, Heat Exchanger Cooled Marine Diesel Engine Complete With Gearbox, Control Panel & Wiring Harness. We have a choice of three of these units available, all in full working order having been changed as part of a fleet repower project. All three engines have been operated in fresh water so coolers etc are in excellent condition. All three have run circa 7500hrs and have been meticulously maintained with original Nanni parts by the same operators from new. Engines are running 12V electrical systems and are fitted with twin alternators.
Manufacturer: Nanni
Model: Nanni 5.250TDI 85hp Marine Diesel Engine
Year built: 2004
Power: 85
Motor: 63
Fuel: Diesel
Used Nanni 5.250TDI 85HP Marine Diesel Engine Specs
| Brand | Nanni Diesel |
| Full Model Code | 5.250TDI (Kubota F2803-TE Base) |
| Country of Origin | France |
| Engine Family/Series | Nanni Turbocharged Cruising Line |
| Engine Type & Configuration | Inline 5-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Turbocharged, Intercooled via Seawater Charge Air Heat Exchanger |
| Displacement | 2.746 Liters / 2746 cc |
| Bore x Stroke | 87.0 mm x 92.4 mm |
| Cylinder Count & Valves per Cylinder | 5-Cylinder, 2-Valves per Cylinder (10 Valves Total) |
| Compression Ratio | 21.0:1 |
| Rated Power / Horsepower | 85 HP (62.5 kW) @ 2800 RPM |
| Maximum Engine Speed / Rated RPM | 2800 RPM |
| Maximum Torque | 245 Nm @ 2000 RPM |
| Fuel System & Injection Type] | Mechanical Bosch In-line Injection Pump, E-TVCS Indirect Injection |
| Governor Type | Mechanical Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System, 100 Amp High Output Marine Alternator |
| Starting System | 12V Heavy Duty Electric Starter |
| Cooling System Type | Freshwater Circuit via High-Efficiency Cupro-Nickel Tube Core Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 9.5 Liters |
| Exhaust Diameter / Exhaust System Type | 76 mm / Water-Injected Wet Marine Exhaust Elbow |
| Flywheel & Flywheel Housing Size | SAE 4 Flywheel Housing / SAE 10 Flywheel Configuration |
| Dry Weight without Marine Gear | 295 kg (650 lbs) |
| Dimensions L x W x H | 965 mm x 522 mm x 670 mm |
| Emission Certifications & Duty Rating | EU RCD 1, EPA Tier 2 Compliant / M4 Medium Duty Pleasure & Charter Yacht Rating |
| Application | Mid-size blue water cruising sailboats, displacement motor cruisers, twin-engine river yachts, and traditional fishing sloops (Typical hull lengths 36-46 feet, adapted for shaft or hydraulic drive setups). |
