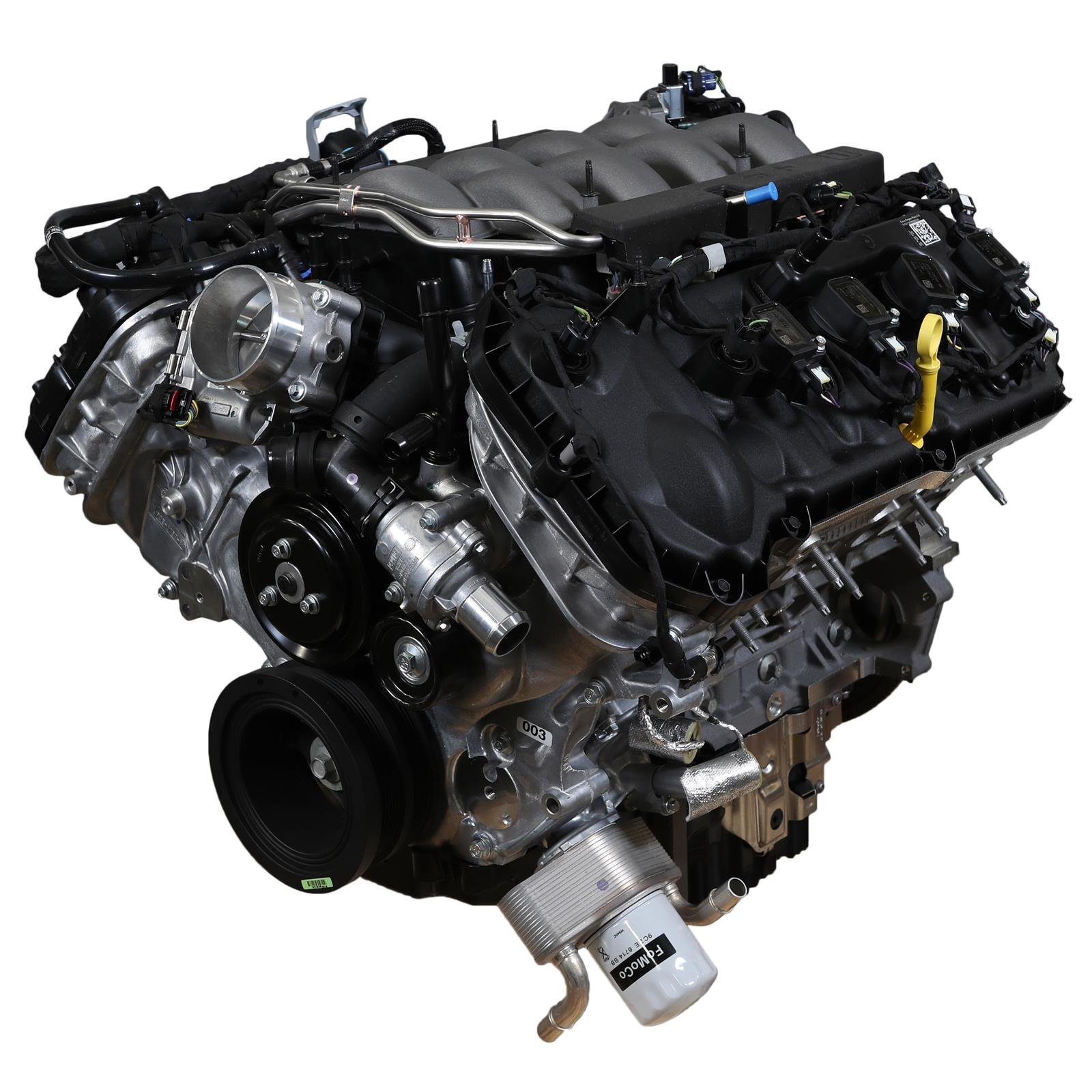

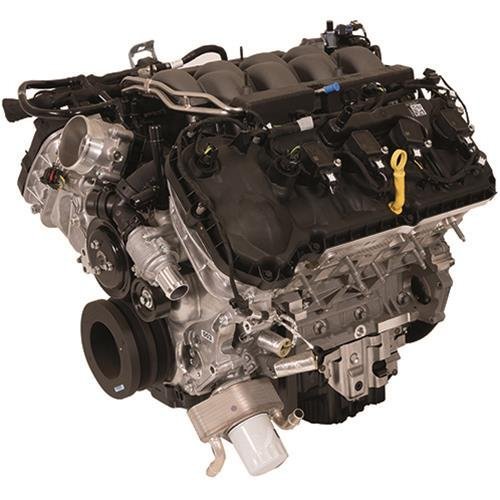

Ford Performance M-6007-M50SB Gen 3 NMRA Coyote Sealed Crate Engine

Description

High-rpm valvetrain resonance and cylinder bore wash destroy competitive track vehicles during protracted circuit events. The Ford Performance M-6007-M50SB Gen 3 NMRA Coyote Sealed Crate Engine stops mechanical race fatigue through a precision commercial long block repower. This 5.0L 8-Cylinder build develops 460HP, requiring installers to verify race sanctioning seal wire integrity before installation.

Cast from high-grade A319 aluminum with plasma-transferred wire arc cylinder liners, this Ford Performance engine core houses four-valve DOHC heads and a forged steel crank. Cold starter draw pulls 170A at 12V. Dry engine mass equals 445 lbs inside 28in length, 28in width, 27in height dimensions with 10.0 quarts oil capacity.

Key Features of Ford Performance M-6007-M50SB

Sanctioned competitors buy Ford Performance M-6007-M50SB Gen 3 NMRA Coyote Sealed Crate Engine packages to secure verified factory power while meeting rigid technical inspection rules. Spec tamper-evident security seals lock cam covers and timing components to guarantee fair competition across every race field.

• Displacement measures 307ci utilizing a 3.660in bore and 3.650in stroke forged rotating group.
• Dual high-pressure direct and low-pressure port fuel injection optimizes combustion under high load.
• Four-valve aluminum DOHC cylinder heads sustain maximum volumetric efficiency past 7000 RPM.
• Plasma-transferred wire arc cylinder liners reduce weight while improving bore thermal transfer.
• M-6007-M50SB commercial core dynamic balancing protects main bearings from high-rpm harmonic distortion.
• Forged steel connecting rods and floating pin pistons withstand severe high-speed inertial tension.
• Tamper-evident sanctioning body security seals guarantee factory spec compliance for class racing.

Bench Dynamometer Load Statistics

Hot bench runs measure performance parameters on each M-6007-M50SB long block engine before dispatch. The engine develops 460HP at 7000 RPM alongside 420 ft-lbs torque at 4600 RPM. Sump oil gallery pressure stabilizes at 60 PSI at 200°F operating temperature. Cylinder compression gauges show 205 PSI across all ports with 3% variance. Crankshaft runout checks at 0.0002in TIR. Dynamic exhaust gas temp stabilizes at 1360°F under peak load.

Bay Constraints Maintenance Schedule

Drive-by-wire electronic pedal resistance measures 4 lbs force. This factory-sealed NMRA race engine is NOT engineered for street emissions testing compliance, low-octane standard pump fuels, or modified non-sealed competition classes.

• Change break-in motor oil and install a fresh high-efficiency filter after the first race heat.
• Inspect high-pressure direct injection fuel rail fittings and lines after every 10 track hours.
• Verify composite oil pan drain plug torque at 19 ft-lbs during routine lubrication changes.

Commercial Warranty Freight Contents

Protected under the Ford Performance assembly standard, this sealed crate engine features dedicated factory technical documentation. The heavy shipping crate holds the sealed long block engine, composite oil pan, production water pump, spark plugs, ignition coils, and NMRA verification papers.
