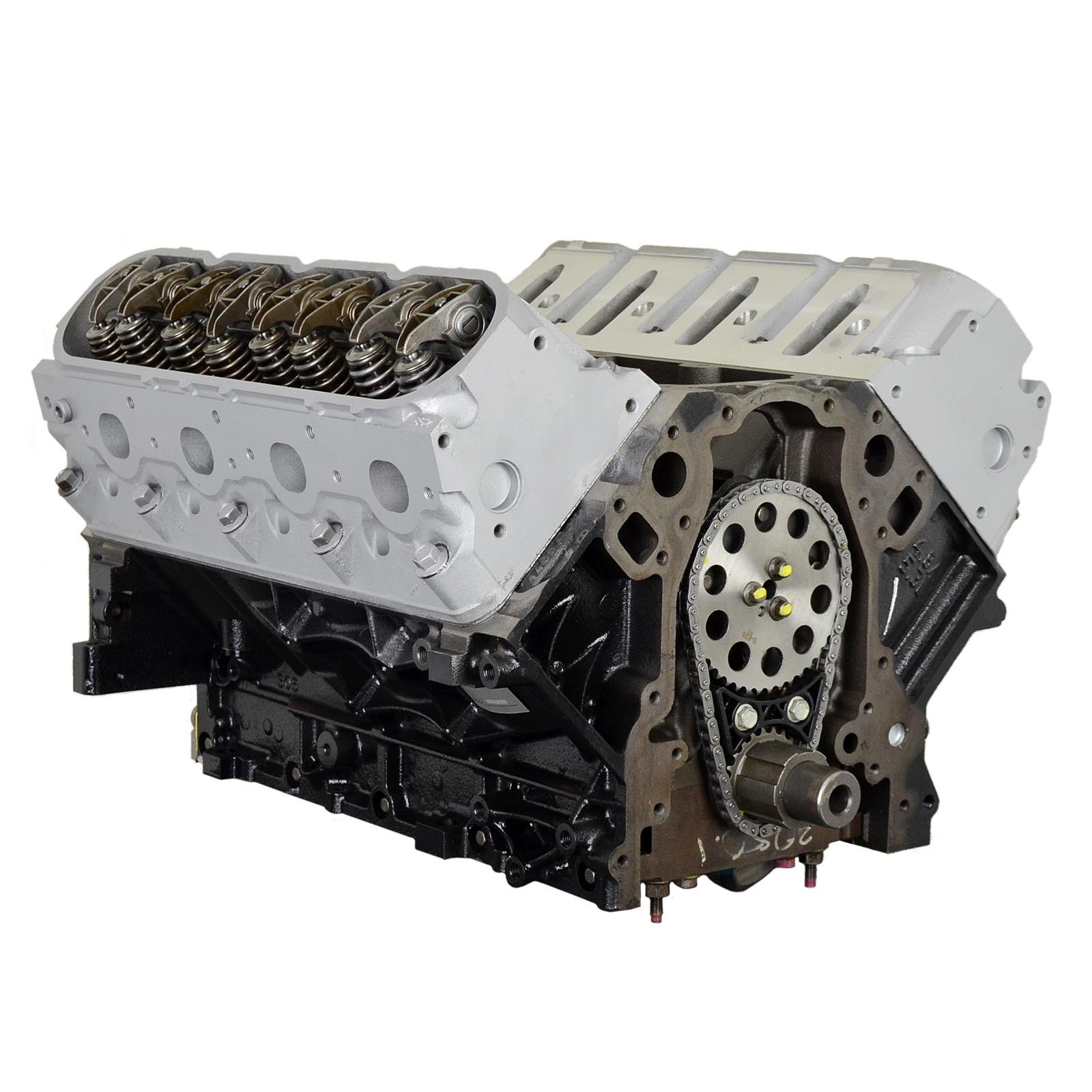

ATK GM LM7/LS1 383ci 515 HP LM7-LB-3 Stage 1 Engine
Swap this heavy duty ATK GM 383 515HP iron LS block straight into your drift chassis. Generates 515 plus horsepower with aluminum heads and a stroker crankshaft. Plug in your custom computer. Drift local tracks.
- Six point three liters build heavy mid-range torque
- Aluminum cylinder heads flow incredible exhaust volumes
- Internal balance prevents high speed crank failure
- Modern one piece main seal eliminates blowby leaks
- Ten point three compression requires premium pump fuel
Description
The heavily stroked 6.3L rotating assembly of the ATK GM LM7/LS1 383ci 515 HP LM7-LB-3 Stage 1 Engine resolves inadequate low-end torque in standard LS swaps. Command brutal off-the-line acceleration during weekend drag racing events. This build utilizes an indestructible cast iron foundation to output 515 HP reliably.
Key Features of ATK GM LM7/LS1 383ci 515 HP LM7-LB-3
- Cast Iron LM7 Engine Block (Clearanced): Secures the rotating assembly with extreme clamping force to prevent block flex under massive stroker torque loads.
- High-Performance Aluminum Cylinder Heads: Sheds significant front-end weight while optimizing combustion chamber thermal efficiency for maximum power.
- Forged 4340 Steel Stroker Crankshaft (4.000″ Stroke): Extends the piston travel to deliver instant low-end torque throughout a broad and highly usable RPM band.
- Hydraulic Roller Camshaft Assembly: Eliminates flat-tappet wear concerns while delivering a deeply aggressive muscle car idle on the street.
- Forged Pistons (10.3:1 Compression): Maximizes the mechanical energy extracted from every combustion cycle on premium pump gas.
Component Breakdown: Base Long Block Configuration
This assembled base long block provides a formidable big-displacement LS foundation for high performance swaps.
- A precision machined cast iron block houses a robust hydraulic roller camshaft designed to deliver massive torque for drag and street performance.
- Lightweight aluminum cylinder heads improve overall thermal efficiency while strict block cleaning procedures ensure reliable head gasket sealing over the life of the engine.
Vehicle Fitment & Compatibility Matrix
Designed to drop seamlessly into spacious engine bays this 6.3L block aligns perfectly with standard LS motor mounts. Sourcing one of our custom built LS stroker engines modernizes your vehicle’s reliability instantly.
- Fits 1999-2007 Chevrolet Silverado 1500 models looking for an aggressive power upgrade.
- Fits 2000-2006 Chevrolet Suburban platforms acting as a direct fit performance replacement.
- Fits 1998-2002 Chevrolet Camaro F-body chassis replacing tired factory LS1 blocks perfectly.
- Fits custom LS restomod swaps requiring a highly durable 383 CID cast-iron foundation.
Fuel & Ignition System Requirements
Feeding this high-horsepower LS engine demands proper fuel tuning and reliable high-voltage ignition components.
- An upgraded electronic fuel injection system or high flow intake is required to supply the heads while utilizing 91 Octane premium pump gas prevents pre-ignition under load.
- Upgraded aftermarket coil packs and heavy duty spark plug wires must be utilized to maintain a powerful spark across the RPM band.
Installation, Break-In Oil & Priming Instructions
Proper initial startup procedures ensure the longevity of the hydraulic roller lifters and internal bearings.
- Transfer your existing intake manifold and oil pan using fresh gaskets before manually priming the oil system with a dedicated LS priming tool.
- Fill the crankcase with a high zinc break in oil and perform a varied RPM heat cycle before driving conservatively for the first 500 miles.
USA Warranty, Emissions & Logistics
Investing in this ATK High Performance crate engine secures peace of mind through comprehensive manufacturer backing.
- Backed by a strict 1-Year manufacturer warranty this engine provides excellent protection against internal manufacturing defects when installed properly.
- This assembly is not legal for sale or use on pollution controlled motor vehicles in California and ships securely via LTL freight.
ATK High Performance GM LM7/LS1 383CI 515+ HP Stage 1 Long Block Crate Engines LM7-LB-3 Specs
| Brand | ATK High Performance Engines |
|---|---|
| Manufacturer's Part Number | LM7-LB-3 |
| Part Type | Crate Engines |
| Product Line | ATK High Performance GM LM7/LS1 383CI 515+ HP Stage 1 Long Block Crate Engines |
| Summit Racing Part Number | HPE-LM7-LB-3 |
| UPC | 653517541254 |
| Crate Engine Family | Chevy LS |
| Actual Engine Displacement | 6.3L/383 |
| Crate Engine Cylinder Head Material | Aluminum |
| Engine Block Material | Cast iron |
| Advertised Compression Ratio | 10.3:1 |
| Assembled | Yes |
| Engine Balance | Internal |
| Cam Style | Hydraulic roller, OE roller |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | No |
| Cylinder Heads Included | Yes |
| Carburetor Included | No |
| Throttle Body Included | No |
| Distributor Included | No |
| Oil Pan Included | No |
| Valve Covers Included | No |
| Timing Cover Included | No |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| Supercharger Included | No |
| Quantity | Sold individually. |
