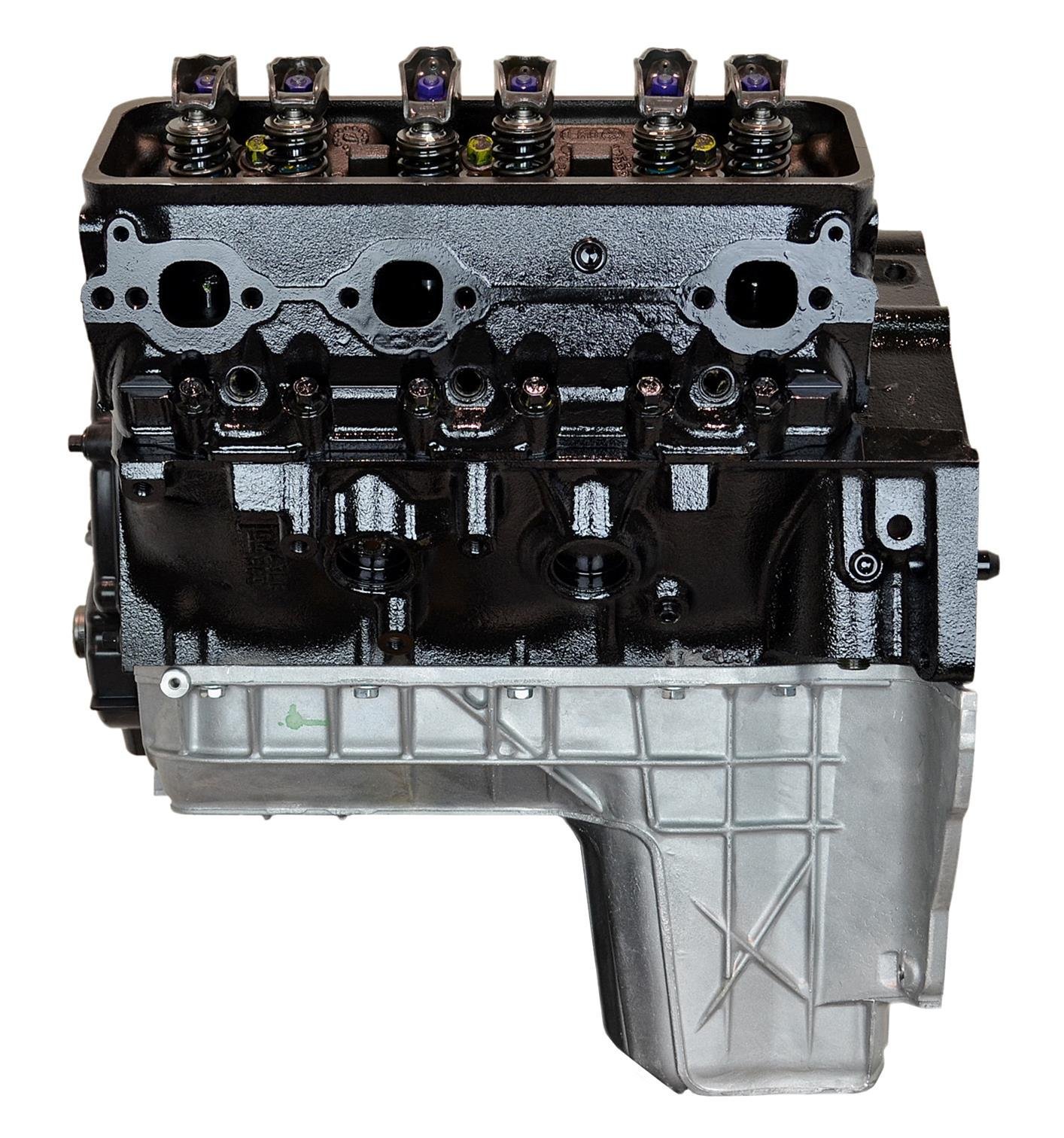

VEGE Remanufactured VCK9 4.3L 262ci Car Truck Long Block Engine

Description

Lower intake gasket deterioration allows cooling fluid to contaminate crankcase oil on high-mileage delivery vans. The VEGE Remanufactured VCK9 4.3L 262ci Car Truck Long Block Engine eliminates coolant-induced journal scuffing during commercial long block repower overhauls. This 6-Cylinder 190HP Vortec powerplant requires balance shaft drive gear dot alignment before securing the front timing chain.

ASTM A48 Class 35 cast iron forms the monolithic 90-degree V6 block and heavy cast iron cylinder heads. A nodular iron crankshaft spins in tri-metal copper-lead bearings, balanced with an internal gear-driven balance shaft. This VEGE engine core draws a 12V 165A starter load during sub-zero test cranks. Total dry weight is 350 lbs, measuring 25in length, 24in width, 26in height, with a 4.5 quarts oil capacity.

Key Features of VEGE Remanufactured VCK9

Municipal fleet mechanics buy VEGE Remanufactured VCK9 Car Truck Long Block Engine builds to cure chronic fleet breakdown cycles. Our industrial engine rebuild standard incorporates revised intake sealing lands and high-clamp cylinder head fasteners.

• Cylinder bores measure 4.000in with diamond plateau hone cross-hatch finishes.
• Main bearing journal clearance holds at 0.0014in across the four main journals.
• Hydraulic roller lifters prevent camshaft lobe scuffing under severe stop-start driving.
• Gear-driven balance shaft assemblies eliminate second-order engine vibration harmonics.
• Multi layer steel head gaskets prevent fire ring leaks between adjacent combustion chambers.
• This VCK9 commercial core features precision deck resurfacing flat within 0.0003in.
• Stellite faced exhaust valves resist seat wear under sustained heavy cargo hauling.

Certified Dyno Load Performance

Automated test cell instrumentation records that this VCK9 long block engine delivers 190 continuous BHP and 250 ft-lbs of torque at 3400 continuous load RPM. Main gallery oil pressure stabilizes at 52 PSI while oil sump temp levels at 192°F under full brake load. Exhaust gas temp tops at 1260°F along the exhaust runner. Compression values register between 172 PSI and 180 PSI across all six cylinders. Crankshaft center journal runout holds at 0.0003in TIR.

Field Placement Setup Boundaries

Transmission detent kickdown cables demand 5 lbs of pull force to maintain proper downshift control under vehicle acceleration. This V6 motor is not intended for forced induction racing craft, marine stern propulsion, or continuous stationary pump rigs.

• Evacuate initial break-in petroleum motor oil after 500 miles or 30 run hours.
• Check hydraulic roller lifter preload at zero lash plus one full turn down.
• Torque cylinder head bolts in three stages to 65 ft-lbs final torque specification.

Commercial Protection Crate Contents

Our dependable VEGE assembly standard provides a 3-Year 100,000-mile commercial warranty. Every pallet crate carries the complete remanufactured long block core, steel oil pan, front timing cover, stamped steel valve covers, oil pickup tube, and signed dynamometer test documentation.
