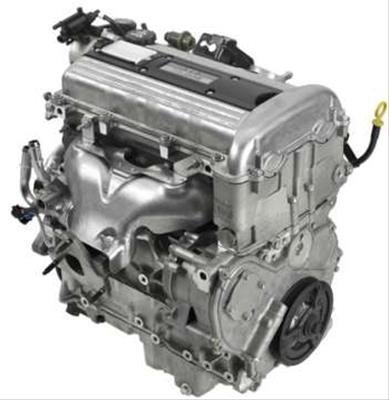

Chevrolet 89060390 2.2L 134ci Remanufactured Long Block

Description

Blown head gaskets at the rear cylinder fire ring cause sudden cooling system overpressurization on light delivery trucks. The Chevrolet 89060390 2.2L 134ci Remanufactured Long Block cures head gasket separation throughout this commercial long block repower. This 4-Cylinder 120HP pushrod motor demands timing chain tensioner shoe inspection prior to front cover installation.

ASTM A48 Class 30 gray iron forms the engine block casting paired with an aluminum cross-flow cylinder head. A precision-ground nodular iron crankshaft spins in tri-metal copper-lead bearings inside two-bolt main caps. This Chevrolet engine core demands a 12V 140A starter draw during cold morning starts. Total dry weight is 235 lbs, measuring 23in length, 21in width, 25in height, with a 4.0 quarts oil capacity.

Key Features of Chevrolet 89060390

Light fleet mechanics buy Chevrolet 89060390 Remanufactured Long Block inventory to eliminate chronic route breakdown calls. Every industrial engine rebuild utilizes diamond-resurfaced deck planes and revised multi layer steel head gaskets.

• Cylinder bores measure 3.504in with diamond plateau hone cross-hatch finishes.
• Main bearing journal clearance holds at 0.0013in across the entire crankshaft.
• Hydraulic roller lifters eliminate camshaft lobe wear under continuous urban stop-and-go driving.
• Revised multi layer steel head gaskets eliminate combustion leaks into coolant passages.
• Hardened valve seat inserts resist unleaded gasoline recession wear.
• This 89060390 commercial core features cylinder head deck resurfacing flat to 0.0003in.
• High-strength pushrods maintain true concentricity under full spring loads.

Brake Cell Output Metrics

Automated brake cell test logs demonstrate that this 89060390 long block engine produces 120 continuous BHP and 140 ft-lbs of torque at 3600 continuous load RPM. Internal oil gallery pressure measures 50 PSI while oil sump temp levels at 190°F under full thermal loading. Exhaust gas temp tops at 1220°F down the test manifold collector. Cylinder compression measures between 172 PSI and 180 PSI across all four cylinders. Crankshaft center journal runout measures 0.0002in TIR.

Installation Guidelines Operational Boundaries

Accelerator cable return springs require 4 lbs of pull force to guarantee complete throttle plate closure at idle. This pushrod engine is not designed for turbocharged drag cars, marine inboard hulls, or stationary generator pump skids.

• Evacuate initial break-in petroleum motor oil after 500 miles or 25 operating hours.
• Check non-adjustable hydraulic roller lifter preload at 0.020in to 0.040in cold.
• Torque cylinder head bolts in sequence to 46 ft-lbs plus 90 degrees rotation.

Verified Warranty Packaging Terms

Each engine certified under the Chevrolet assembly standard includes a 3-Year 100,000-mile parts warranty. Every sealed wooden crate holds the remanufactured long block core, stamped steel oil pan, front timing cover, stamped valve cover, oil pickup tube, and signed dyno load sheet.
