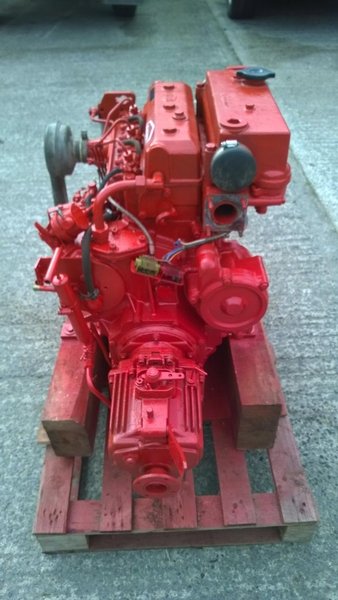

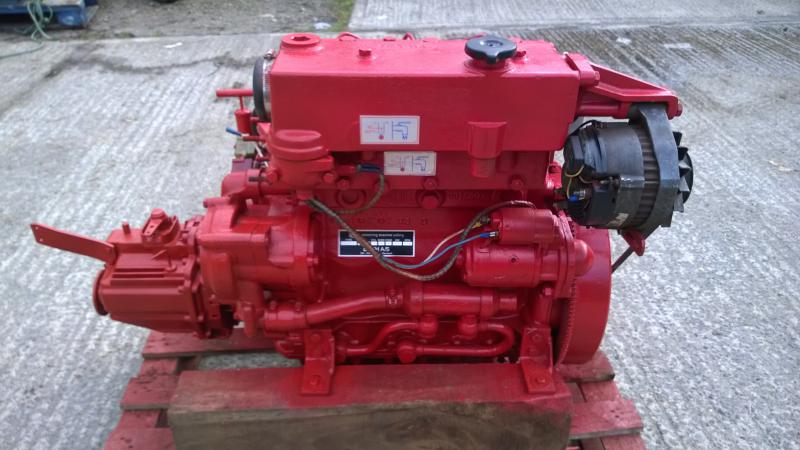

Used Bukh DV36 36HP Keel Cooled Narrowboat Engine
Description
Used Bukh DV36 36HP Keel Cooled Narrowboat Engine
Used Bukh DV36 RME 36hp Three Cylinder Keel Cooled Marine Diesel Engine Package Including Gearbox, Control Panel & Loom. Propellers, shafts and couplings to suit are also available at extra cost. This is the current model, and still sold today. We have a selection of these units available, all removed from ships lifeboats and as such all have run less than 250hrs from new and been very well maintained. In many cases these engines will have run less than 100hrs from new!! They have also been running on closed circuit cooling so have never even tasted salt water. These engines are specially built for skin tank and keel cooling systems so make ideal replacement engines for narrowboats, offering a traditional engine design and yet still a current model engine at a fraction of the new cost. They have all been test run in our workshops, serviced, cleaned, painted and are ready to drop in and use.
Manufacturer: Bukh
Year built: 1997
Starter: Electric start
Cooling type: Salt water
No. of previous owners: 1
Power: 36
Motor: 27
Fuel: Diesel
Used Bukh DV36 Keel Cooled Narrowboat Specs
| Brand | Bukh |
| Full Model Code | DV36 ME / RME (Narrowboat Config) |
| Country of Origin | Denmark |
| Engine Family/Series | DV Heavy-Duty 3-Cylinder Series |
| Engine Type & Configuration | Inline 3-Cylinder, 4-Stroke, Low-Vibration Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Direct Injection with Rotating Mass Counter-Balancing System |
| Displacement | 1.447 Liters / 1447 cc |
| Bore x Stroke | 85.0 mm x 85.0 mm |
| Cylinder Count & Valves per Cylinder | 3-Cylinder, 2-Valves per Cylinder (6 Valves Total) |
| Compression Ratio | 18.5:1 |
| Rated Power / Horsepower | 36 HP (26.5 kW) @ 3600 RPM |
| Maximum Engine Speed / Rated RPM | 3600 RPM (Often governed to lower RPM for Narrowboat setups) |
| Maximum Torque | 90 Nm (9.2 Kpm) @ 1800 RPM |
| Fuel System & Injection Type] | Bosch Distributor Injection Pump with Automatic Timing Device |
| Governor Type | Mechanical Fuel-Limiting Governor |
| Electrical System Voltage & Alternator Output | 12V System, 50 Amp Charging Alternator (Often retrofitted with secondary domestic alternators) |
| Starting System | 12V Heavy Duty Electric Starter Motor |
| Cooling System Type | Keel Cooled Skin Tank Configuration (Indirect Freshwater Loop without Raw Water Intake) |
| Lubricating Oil Capacity / Oil Pan Capacity | 5.5 Liters |
| Exhaust Diameter / Exhaust System Type | 50 mm / Dry Exhaust System with Silencer Block |
| Flywheel & Flywheel Housing Size | Open Flywheel Configuration with Heavy Inertia Wheel |
| Dry Weight without Marine Gear | 265 kg (585 lbs) |
| Dimensions L x W x H | 815 mm x 490 mm x 620 mm |
| Emission Certifications & Duty Rating | BSO Stage I, Inland Waterways Compliant / Heavy Continuous Commercial Duty Rating |
| Application | Inland waterways narrowboats, canal barges, and heavy displacement river craft (Optimal for 35-55ft steel canal boats requiring continuous low-RPM high-torque propulsion). |
