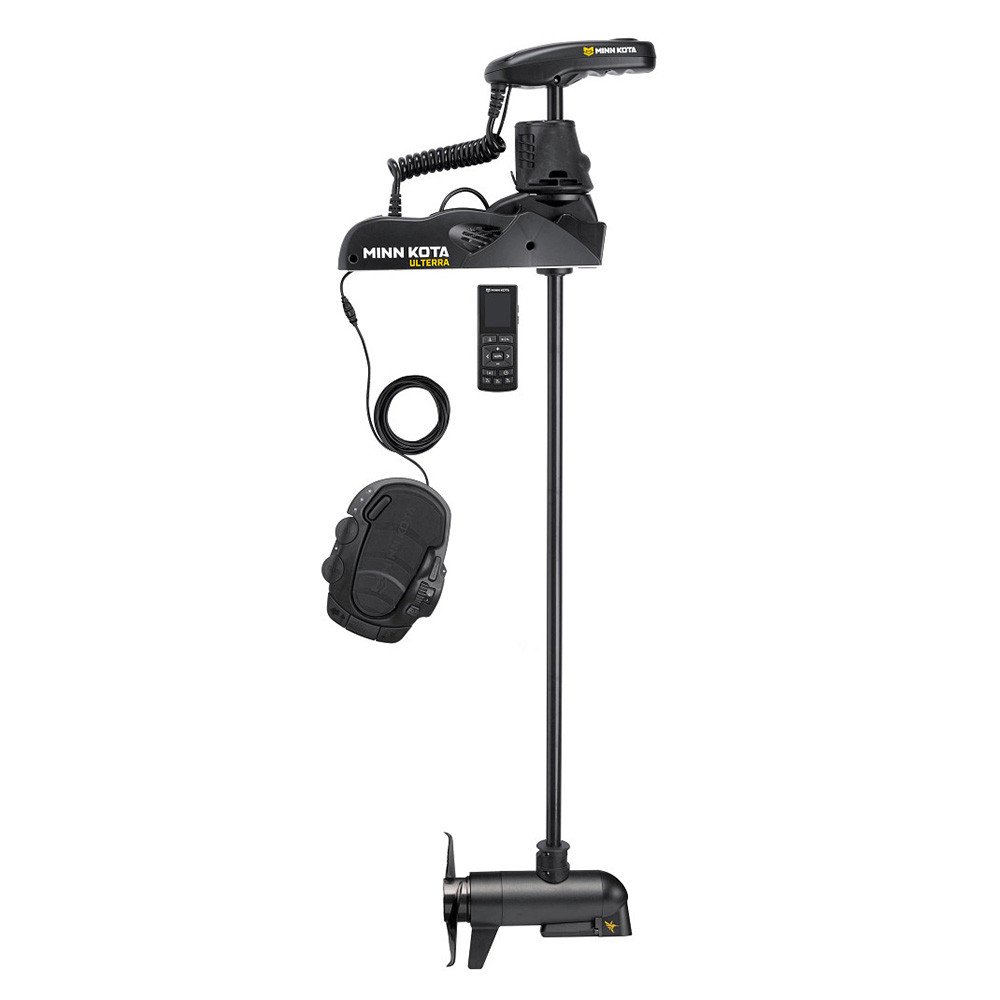

Minn Kota Ulterra 112 Trolling Motor

Description

Seeking automated push-button stow and deploy? The Minn Kota Ulterra 112 Trolling Motor delivers motorized deployment and power trim directly from wireless remotes or foot pedals. Supplying 112 lbs of thrust on a 36V DC electrical architecture with a 60-inch composite shaft, this motor eliminates physical bow trips, allowing solo anglers to control boat positioning from the helm.

An automated motorized gear carriage encases internal lift motors and power trim mechanisms within an impact-resistant composite housing. The indestructible composite shaft absorbs log strikes in shallow coves without cracking or kinking. Weighing 65 lbs dry, this 36V motor pulls 52A at wide-open throttle, occupying a stowed boundary measuring 72 inches long by 14 inches wide.

Key Features of Minn Kota Ulterra 112

Captains who buy Minn Kota Ulterra 112 trolling motor units secure hands-free motorized operation for freshwater bass boat rigging. Its motorized power trim allows anglers to adjust motor depth on the fly, lifting the lower unit when approaching shallow weed flats without leaving the driver console.

• 112 lbs of thrust provides massive power to maneuver 21-foot fiberglass tournament rigs through wind.
• 60-inch composite shaft keeps the propeller submerged during choppy waves on windy main lake points.
• Auto Stow and Deploy motorized mechanism lowers and raises the motor into the water with push-button ease.
• Power Trim technology adjusts lower unit motor depth electronically from the foot pedal or wireless remote.
• Ulterra 112 automated bow mount motor platform includes an illuminated wireless remote with real-time motor readouts.
• Spot-Lock GPS virtual anchor locks vessel positions within feet using real-time satellite position correction.
• Digital Maximizer speed modulation draws energy only as needed to conserve 36V battery capacity.
• Weedless Wedge 2 propeller features swept-back blades that push through hydrilla mats without bogging.

Thrust Curves Battery Amp Draw

Producing 112 lbs of static thrust on 36V power, this motor draws 52A at wide-open throttle, delivering unmatched pushing power through thick emergent weed beds. Connected to three 12V 100Ah lithium iron phosphate batteries, it provides over 16 continuous hours of aggressive fishing at mid-range throttle. The motor pod dissipates heat rapidly into surrounding water, emitting under 38 dB(A).

Bow Deck Installation Geometry Clearances

Secure the motorized aluminum base channel to the bow deck using six stainless machine bolts, allowing 4.5 inches of forward overhang beyond the rubrail. Wire the power leads to an inline 60A manual-reset marine circuit breaker using 6 AWG copper cable. The bracket matches standard Ulterra and Terrova quick-release pucks.

Deck Usability Rigging Inspection Tasks

Stowing and deploying functions execute via electronic switches on the foot pedal or remote, requiring zero physical lifting force. This motorized auto-stow trolling motor is not engineered for shallow river kayaks, small canoes, or vessels with obstructed bow decks that block motor rotation.

• Inspect the propeller shear pin and clean weed wrap behind the prop drive hub after each outing.
• Inspect the drive belt mechanism and wipe debris from the motorized gear track after each outing.
• Verify all 36V battery series connections and test circuit breaker function every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota protects this motor with a 2-Year limited warranty and a lifetime composite shaft guarantee. The factory package contains the Minn Kota Ulterra 112 motor, electric foot pedal, wireless remote, heading sensor puck, Weedless Wedge 2 prop, mounting hardware, and user guide.
