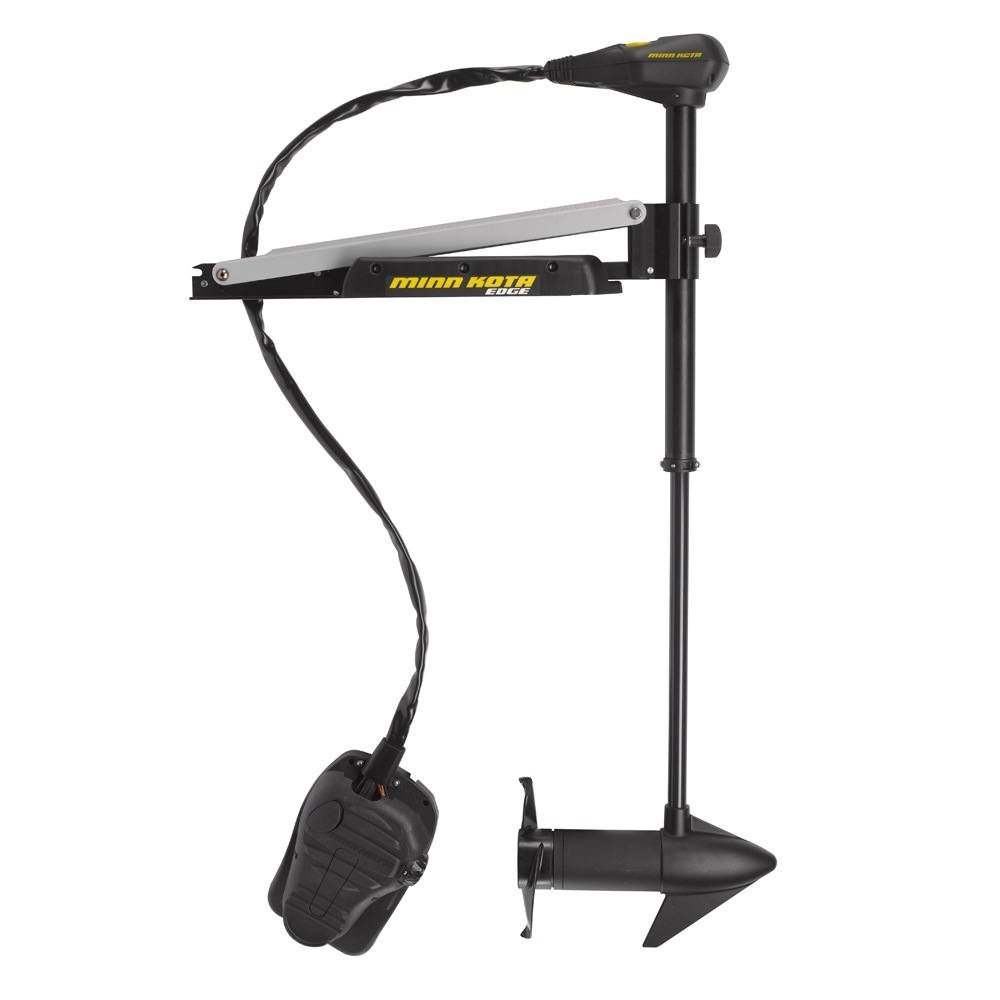

Minn Kota Edge 55 Trolling Motor

Description

During windy reservoir bass fishing shifts, the Minn Kota Edge 55 Trolling Motor delivers responsive mechanical cable control to maneuver aluminum bass hulls along rocky shorelines. Producing 55 lbs of thrust on a single 12V DC electrical battery bank, this 45-inch motor powers forward casting decks through choppy points without circuit overloads.

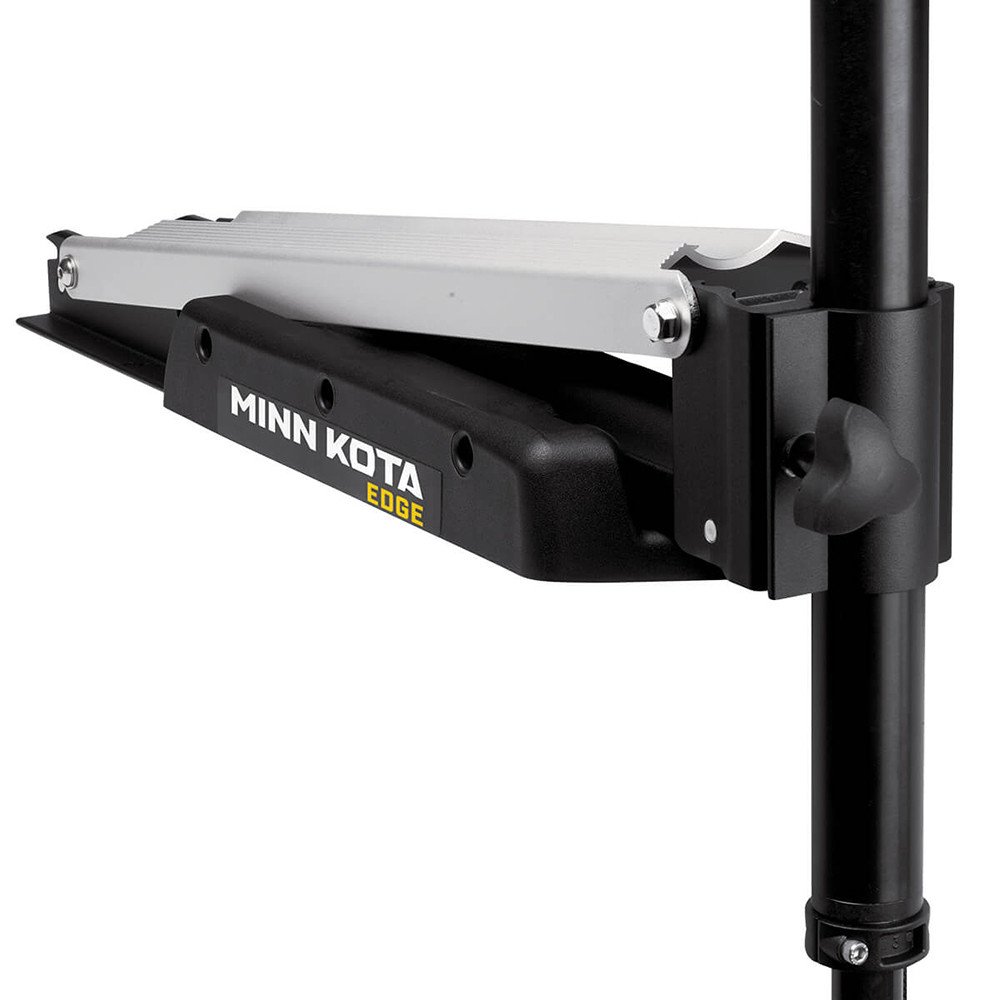

Built on an extruded aircraft aluminum scissor frame, the latch-and-door bracket provides rigid support under heavy directional changes. The indestructible composite shaft absorbs log strikes in shallow coves without cracking or kinking. Weighing 37 lbs dry, this 12V motor demands 50A at wide-open throttle, fitting inside a stowed deck boundary measuring 55 inches long by 10 inches wide.

Key Features of Minn Kota Edge 55

Weekend tournament anglers who buy Minn Kota Edge 55 trolling motor hardware obtain responsive cable steering for freshwater bass boat rigging. Its high-torque lower unit delivers steady propulsion, allowing anglers to hold position against 15-knot winds while pitching jigs to deep laydown timber.

• 55 lbs of peak thrust maximizes single-battery 12V power output to push 16-foot to 18-foot fishing boats.
• 45-inch composite shaft flexes upon impact with underwater logs to protect lower unit seals.
• Mechanical cable-steer foot pedal provides instantaneous direction changes with zero electronic delay.
• Five forward speed positions permit tailored speed selection for slow shoreline pitching or fast search cranking.
• Edge 55 cable steer bow motor includes an extruded aluminum upper arm that eliminates bracket flex.
• Latch and door bracket design simplifies motor removal for maintenance or locked garage storage.
• Power Prop propeller design generates high rotational thrust to push through surface duckweed patches.

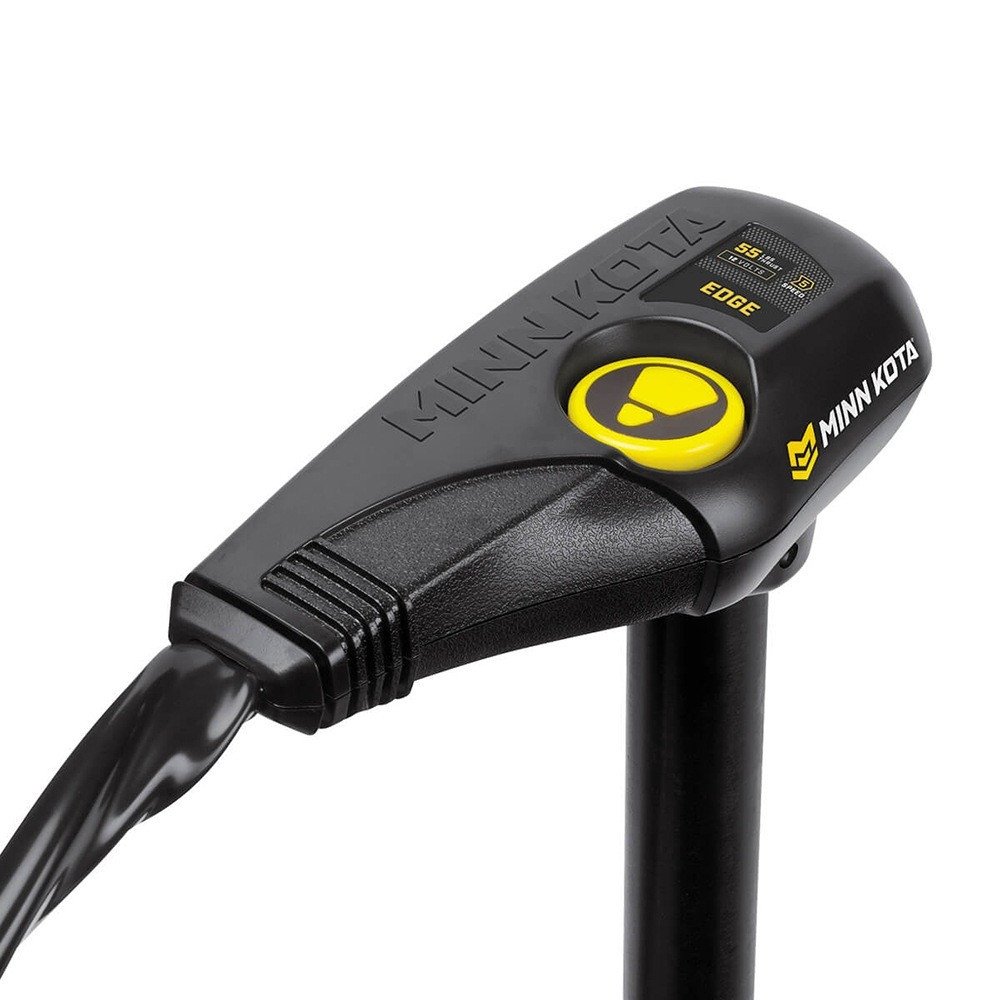

• Lighted directional indicator on the head cap shows prop orientation clearly during night tournament blast-offs.

Thrust Output Amp Draw Efficiencies

Generating 55 lbs of thrust at maximum throttle, this 12V motor pulls 50A under continuous full load, requiring robust battery capacity. Connected to a high-capacity 12V 100Ah lithium battery, it provides over 7 continuous hours of shoreline maneuvering at speed three. The lower unit runs cool in shallow water, holding sound output below 40 dB(A) to avoid startling bedding fish.

Bow Deck Installation Geometry Clearances

Fasten the extruded aluminum base to the bow casting deck using four stainless machine bolts, ensuring 3.5 inches of clearance past the rubrail. Wire the motor using 6 AWG tinned copper wire linked to a 50A manual-reset waterproof marine circuit breaker. The base plate matches standard Edge and Maxxum bow hole patterns.

Deck Usability Rigging Inspection Tasks

Deploying the unit requires pulling the latch release cable and guiding the composite shaft forward into vertical lock. This 12V motor is not engineered for deep-draft fiberglass tournament rigs over 19 feet, high-freeboard bay boats, or saltwater coastal applications lacking zinc protection.

• Remove the propeller nut to check for wrapped fishing line around the armature shaft after each outing.
• Rinse lake silt and sand from the foot pedal rack and pinion gears after each outing.
• Inspect 12V battery terminal connections and test circuit breaker contacts every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota covers this motor with a 2-Year limited warranty and a lifetime composite shaft guarantee. The shipping carton delivers the Minn Kota Edge 55 motor, foot pedal assembly, Power Prop, mounting hardware pack, hold-down strap, and operating instructions.
