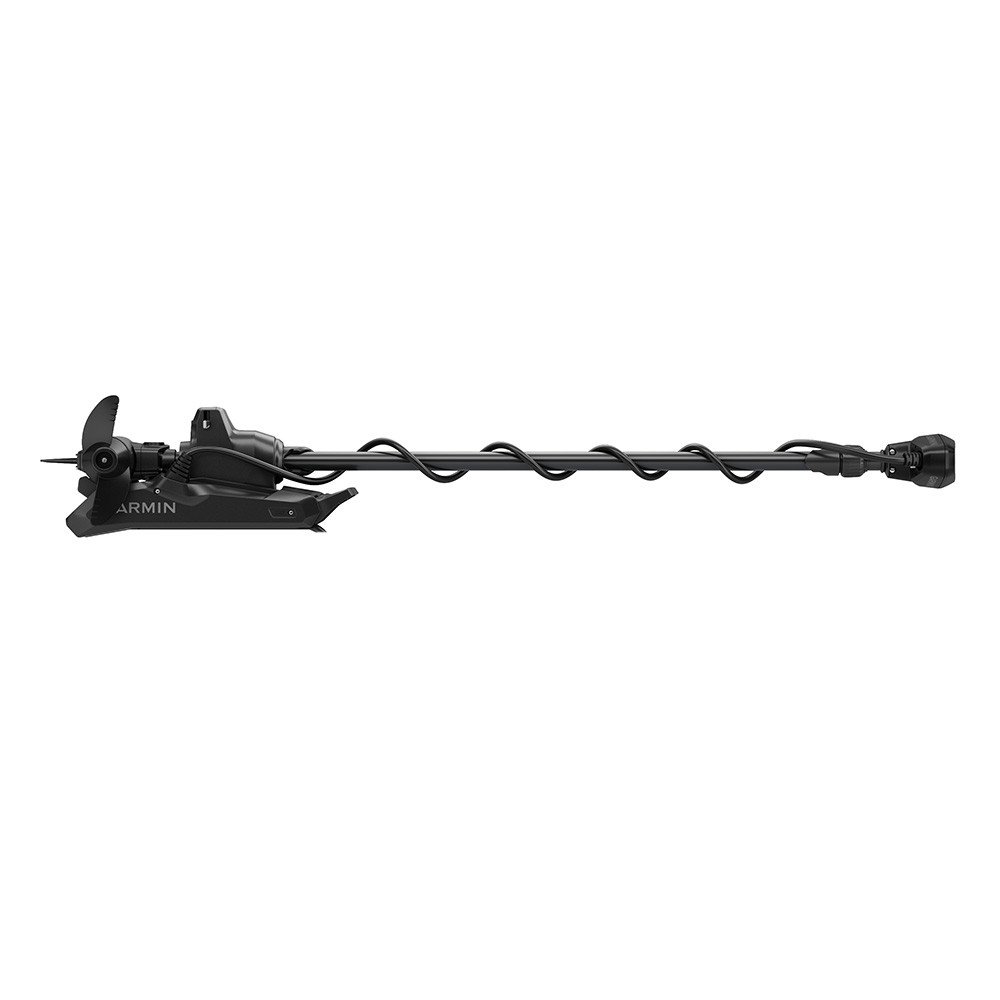

Garmin Force Kraken Trolling Motor

Description

Eliminate offshore wind drift using the Garmin Force Kraken Trolling Motor, delivering high-thrust brushless propulsion across dual 24V and 36V DC electrical architectures. Equipped with a 75-inch composite shaft and an integrated GT56UHD transducer, this pivot-style bow motor holds deep-V center consoles on offshore waypoints without transducer cable clutter or motor brush interference.

A powder-coated extruded aluminum pivot mount secures the high-efficiency brushless motor pod, resisting saltwater galvanic corrosion across extended seasons. The indestructible composite shaft flexes upon underwater obstruction impact without structural delamination. Operating on 24V or 36V battery banks, this 58-lb motor pulls a maximum of 60A at full throttle while stowing within a foredeck boundary measuring 82 inches long by 14 inches wide.

Key Features of Garmin Force Kraken

Offshore anglers who buy Garmin Force Kraken trolling motor units acquire tournament-grade boat control for saltwater GPS anchor motor setups. Its brushless motor design operates without electrical brush friction, eradicating sonar clutter on high-frequency side-scan chartplotters while optimizing onboard lithium battery endurance.

• 100 lbs of peak thrust on 36V power holds heavy center consoles over deep wrecks against ripping ocean currents.
• 75-inch composite shaft maintains propeller immersion through four-foot ocean swells without cavitation blowout.
• Brushless motor pod eliminates carbon commutator brush wear and mechanical clatter to keep fish undisturbed.
• GT56UHD integrated transducer delivers ultra-high-definition ClearVu and SideVu sonar signals straight through the shaft.
• Force Kraken offshore GPS motor platform incorporates point-and-go gesture steering via an ergonomic wireless handheld remote.
• Multi-band GPS anchor lock calculates real-time satellite position data to pin vessel headings within three feet.
• Pivot-style bracket mechanism reduces physical stowage effort on high-freeboard offshore vessels.
• NMEA 2000 network connectivity enables full autopilot route control through compatible Garmin marine chartplotters.

Thrust Output Amp Draw Efficiencies

Producing over 100 lbs of static thrust at 36V wide-open throttle, this motor consumes 60A under extreme load while running cooler than conventional brushed alternatives. Connected to a 36V 60Ah lithium iron phosphate battery bank, it sustains over 18 continuous hours of trolling at 40 percent power. The brushless driver board handles dense sargassum weed chop without thermal rollback, keeping acoustic underwater noise output below 34 dB(A).

Bow Deck Installation Geometry Clearances

Mount the heavy-duty cast aluminum base to forward gunwales using six grade-316 stainless steel through-bolts, allowing 5 inches of forward overhang beyond the rubrail. Run continuous 6 AWG tinned marine wire from the battery compartment to a 60A waterproof manual-reset circuit breaker. The base plate matches standard offshore deck mounting bolt patterns.

Deck Usability Rigging Inspection Tasks

Stowing the motor requires lifting the shaft until the pivot carriage automatically latches into its horizontal transport cradle. This 75-inch trolling motor is not engineered for shallow-draft flats skiffs, small aluminum jon boats, or vessels with bow freeboard heights under 25 inches.

• Inspect the propeller drive nut and clear braided fishing line from the shaft after each outing.
• Rinse the composite shaft, pivot hinge pins, and transducer face with freshwater after each outing.
• Inspect all high-amp battery connections and test circuit breaker trip response every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Garmin protects this motor with a 3-Year limited marine warranty alongside a lifetime composite shaft guarantee. The heavy shipping box contains the Garmin Force Kraken motor core, GT56UHD transducer, wireless remote control, heading sensor puck, prop assembly, mounting hardware, and installation guide.
