Lowrance Recon FW Trolling Motor
Description
Next-Level Control: Lowrance Recon FW 72-Inch Freshwater Trolling Motor
Revolutionize your freshwater fishing experience with the Lowrance Recon FW 72-Inch (000-16175-001). Built for massive freshwater vessels and high-bow multi-species boats, this motor delivers the industry’s most advanced steering technology paired with elite brushless power. Featuring a high-torque 24/36V dual-voltage motor, the Recon FW ensures you have up to 115 lbs of thrust to conquer heavy winds and currents, while the integrated HDI Nosecone provides crystal-clear DownScan and CHIRP sonar directly to your Lowrance displays.
The standout feature of the Recon series is the FreeSteer™ Joystick Remote, providing 360-degree precision control with the flick of a thumb. This model also includes a wireless foot pedal that is fully customizable, offering the tactile response of a traditional pedal without the clutter of cables. The extra-long 72-inch carbon-fiber reinforced shaft is engineered to maintain depth in heavy big-water swells, ensuring constant traction when other motors would be cavitating at the surface.
Full System Integration and Precision Anchor Lock
Dominate your favorite fishing spots with the ultra-precise Anchor Lock, holding your boat on a dime using high-accuracy GPS. The Recon FW integrates seamlessly with the Lowrance ecosystem via NMEA 2000®, allowing you to control steering, speed, and navigation from your HDS Pro, HDS LIVE, or Elite FS fish finders. With its near-silent brushless operation and zero electromagnetic interference, your sonar images remain crisp, letting you see fish arches and structure with professional clarity.

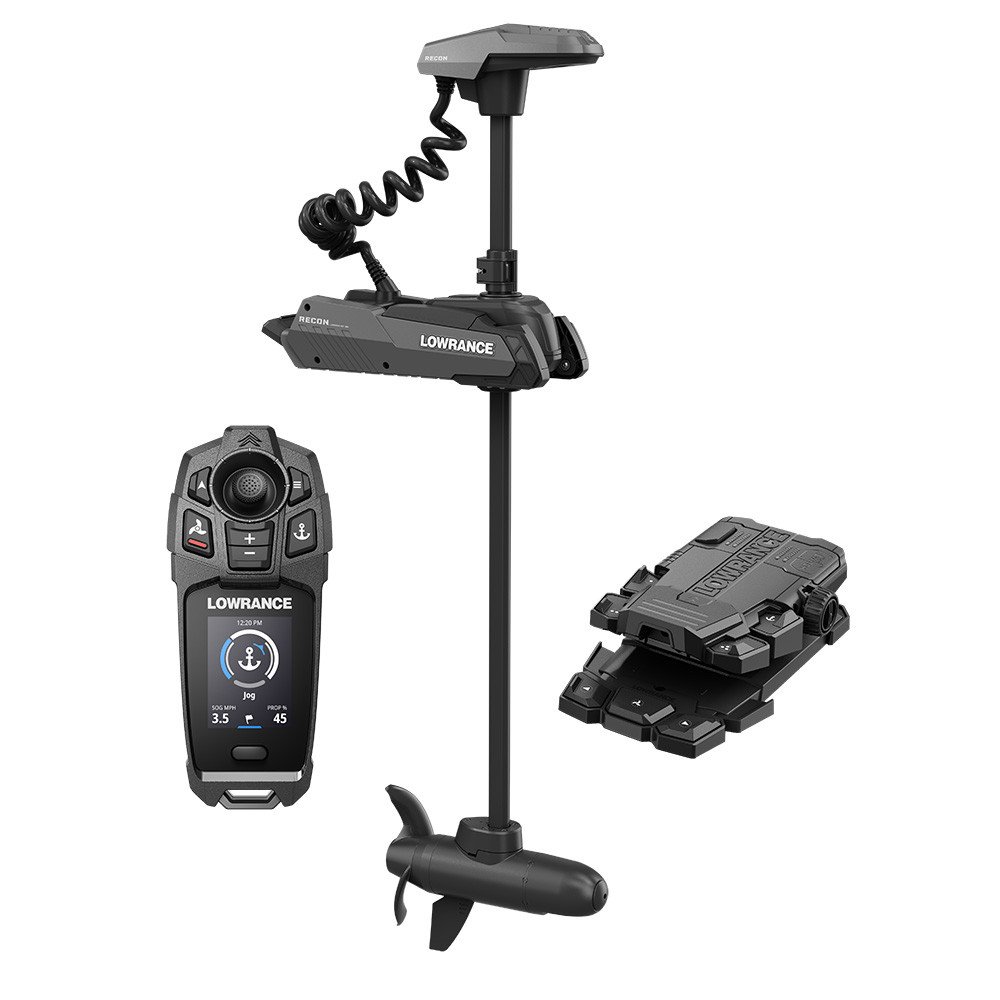

- FreeSteer™ Joystick Remote: Tactical, handheld control with a built-in display for total boat command.
- Wireless Foot Pedal Included: Customizable, low-profile pedal for hands-free operation from anywhere on the deck.
- Integrated HDI Nosecone: Factory-installed CHIRP and DownScan imaging for high-definition underwater views.
- 72-Inch Composite Shaft: Engineered for durability and optimized for large multi-species and deep-V boats.
- Brushless Efficiency: Delivers 115 lbs (36V) or 90 lbs (24V) of thrust with 30% longer battery runtime.
Lowrance Recon FW 72" w/ FreeSteer Specs
| Technical Parameter | Official Specification |
|---|---|
| Brand & Series | Lowrance Recon Series (Freshwater) |
| Full SKU/Model | 000-16175-001 (72") |
| Mount Location | Bow-Mount (Pivot Style) |
| Motor Type | Brushless (High-Efficiency) |
| Peak Thrust | 115 lbs (36V) / 90 lbs (24V) |
| Operating Voltage | 24V or 36V DC |
| Max Amp Draw | 50 Amps |
| Recommended Circuit Breaker | 60 Amp (Manual Reset) |
| Minimum Wire Gauge | 6 AWG |
| Shaft Length | 72 Inches (183 cm) |
| Shaft Material | Carbon-Fiber Composite (Lifetime Warranty) |
| Propeller Type | 3-Blade High-Efficiency Prop |
| Propeller Pitch/Diameter | Standard Recon Series |
| Steering Type | Electric Steer w/ FreeSteer Joystick Remote |
| Speed Control | Variable (Digital Maximizer Equivalent) |
| Deployment System | Manual Assist with Gas Spring |
| GPS Integrated Navigation | Yes (High-Accuracy GPS) |
| Anchor Mode/Spot-Lock | Yes (Anchor Lock) |
| Sonar Compatibility | Integrated HDI Nosecone (CHIRP/DownScan) |
| Bluetooth/Mobile App | Yes (Lowrance App Integration) |
| Saltwater/Freshwater Rating | Freshwater Only |
| Digital Maximizer | Yes (Brushless Efficiency) |
| Heading Sensor Included | Yes (Integrated) |
| Battery Indicator System | Yes (Remote & MFD) |
| Total Unit Weight | ~76.5 lbs (Boxed) / ~64 lbs (Unit) |
| Max Boat Length/Weight | Large Deep-V Walleye/Multi-Species Hulls |
| Mounting Bolt Pattern | Standard Lowrance Pivot Pattern |
| Commercial/Residential Warranty | 3-Year Motor / Lifetime Shaft |
| Replacement Propeller SKU | Lowrance 3-Blade Replacement |
| SEO Usage Profile | Great Lakes Fishing; Multi-Species Deep-V; Joystick Precision |
