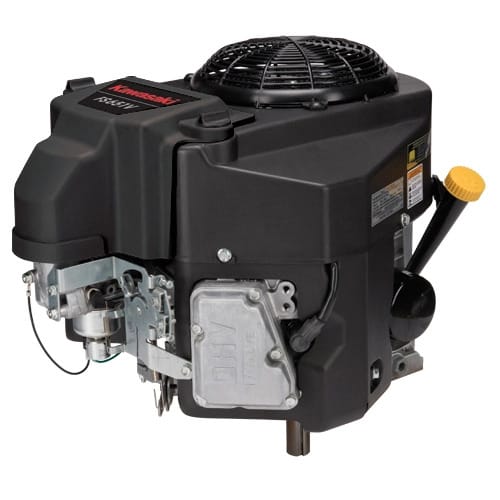

Kawasaki FS651V-S07-S 21.5HP 726cc V-Twin Engine – 1-1/8in Shaft

Description

Displacing 726cc across two cylinders, the Kawasaki FS651V-S07-S vertical engine sustains constant rotational torque under heavy commercial turf resistance. Commercial lawn tractors and stand-on mowers face severe deck drag when clearing overgrown grass, causing lesser engines to overheat and lose RPM. This 21.5HP commercial engine features an overhead valve V-twin layout, an electric starter, and an oversized 1-1/8-inch vertical drive shaft that matches heavy-duty commercial clutches.

A precision-machined 1-1/8-inch vertical output shaft couples straight to commercial electric clutches and ground-drive belt pulleys without custom adapter shims. Full-pressure lubrication circulates filtered motor oil directly to high-load rod bearings, ensuring uninterrupted fluid barrier protection during continuous full-throttle mowing. The dual-barrel carburetor meters fuel with precision across varying load demands, preventing engine hesitation when mower decks encounter thick, wet turf patches.

Technical Specifications of Kawasaki FS651V-S07-S

• 726cc 21.5HP Commercial OHV V-Twin: Produces 21.5 rated horsepower to drive wide commercial cutting decks without engine bog.
• 1-1/8-Inch Heavy-Duty Vertical Shaft: Oversized commercial diameter matches heavy electric blade clutches and transmission drive pulleys.
• Full-Pressure Lubrication with Spin-On Filter: Keeps rod journals and camshaft lobes coated in pressurized motor oil.
• Durable Cast-Iron Cylinder Sleeves: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• 12-Volt Key-Start Electric Motor: Spins the engine flywheel with key activation to eliminate manual starting effort.

Jobsite Performance & Wear Resistance

Designed for professional commercial mowing contractors, this vertical engine delivers reliable shaft power with low fuel consumption.

• A rigid aluminum crankcase casting and precision-machined shaft journals resist side-load belt stress under high tension.
• Overhead valve efficiency delivers clean fuel combustion to reduce carbon accumulation on valve faces.
• Commercial lawn care contractors and estate groundskeepers gain dependable power for high-hour machinery.
• Standard base bolt dimensions allow fast drop-in repower swaps without deck drilling or fabrication delays.

Target Machinery & Drop-In Fitment

Weighing 85 pounds dry with an industry-standard vertical mounting base and 1-1/8-inch shaft, this motor repowers 54-inch and 60-inch commercial zero-turn mowers, stand-on turf cutters, and lawn tractors without frame modifications.

Commercial Warranty & Preventive Maintenance

• Commercial purchasers receive 3-Year limited factory warranty coverage for industrial use.
• Consumer buyers receive 3-Year comprehensive manufacturer warranty protection.

Drain engine oil after the initial 20 operating hours, then service every 100 hours with SAE 30 or 10W-30 oil and a new filter. Inspect the air filter weekly on dry cutting routes, and maintain spark plug gaps at 0.030 inches. Order the Kawasaki FS651V-S07-S vertical shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
