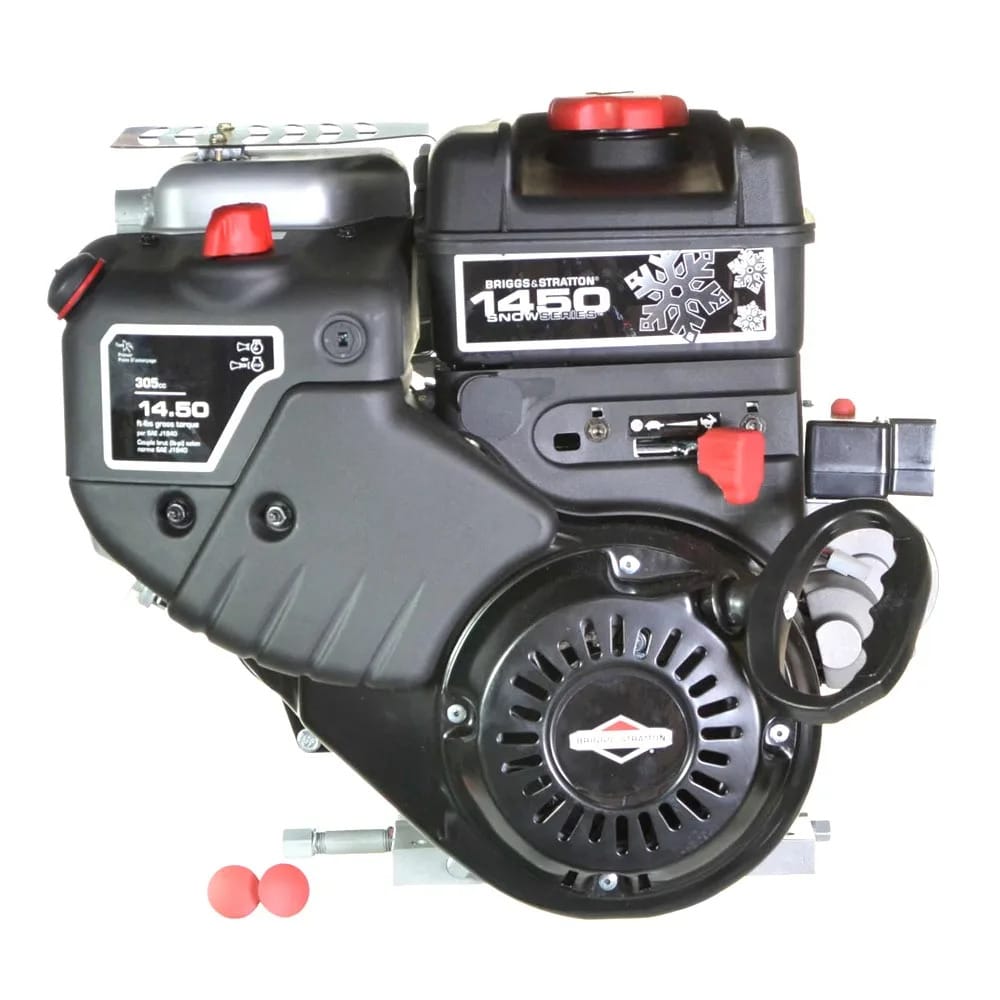

Briggs & Stratton 20M307-0001-F1 14.50 GT 306cc Snow Engine
$291.00
In Stock
Briggs & Stratton 20M307-0001-F1 (Snow Series) Technical Specs
| Brand | Briggs & Stratton |
| Full Model Code | 20M307-0001-F1 |
| Country of Origin | USA/Global |
| Engine Orientation | Horizontal Shaft |
| Engine Type | 4-Stroke, OHV Single Cylinder (Winterized) |
| Displacement | 306 cc |
| Bore x Stroke | 82 x 58 mm |
| Compression Ratio | 8.5:1 |
| Maximum Output | Approx. 10 HP |
| Maximum Torque | 19.6 Nm (14.50 GT) @ 2600 RPM |
| Specific Fuel Consumption | 2.9 L/hr @ 3600 RPM |
| Fuel Induction System | Winter-Specialized Carburetor |
| Ignition System | Magnetron® Electronic Ignition |
| Start System | Electric Start (110V) & Recoil |
| Shaft Specification | 3/4" (19.05 mm) Straight Keyway |
| Fuel Tank Capacity | 3.0 Liters |
| Oil Capacity & Type | 1.1 Liters / SAE 5W-30 (Synthetic Recommended) |
| Cooling System | Air Cooled |
| Dry Weight | 26.5 kg |
| Dimensions | 321 x 402 x 443 mm |
| Standard Warranty | 2 Years |
| Primary Application | Snow Blowers, Winter Maintenance Equipment |
Briggs 20M307 Snow Included:
- Briggs & Stratton 20M307-0001-F1 306cc Snow Series Engine
- Manual Recoil Starter Assembly with Cold-Weather Shell Protection
- Specialized Cold-Weather Super Mitt Recoil Starter Grip Handle
- Extended Oil Drain and Oversized Controls for Gloved Operation
- Freeze-Resistant Guard and Protective Control Enclosures
- Cast Iron Cylinder Sleeve, Muffler Guard, and Ignition Switch
- User Manual
- Official Briggs & Stratton Limited Warranty Card
