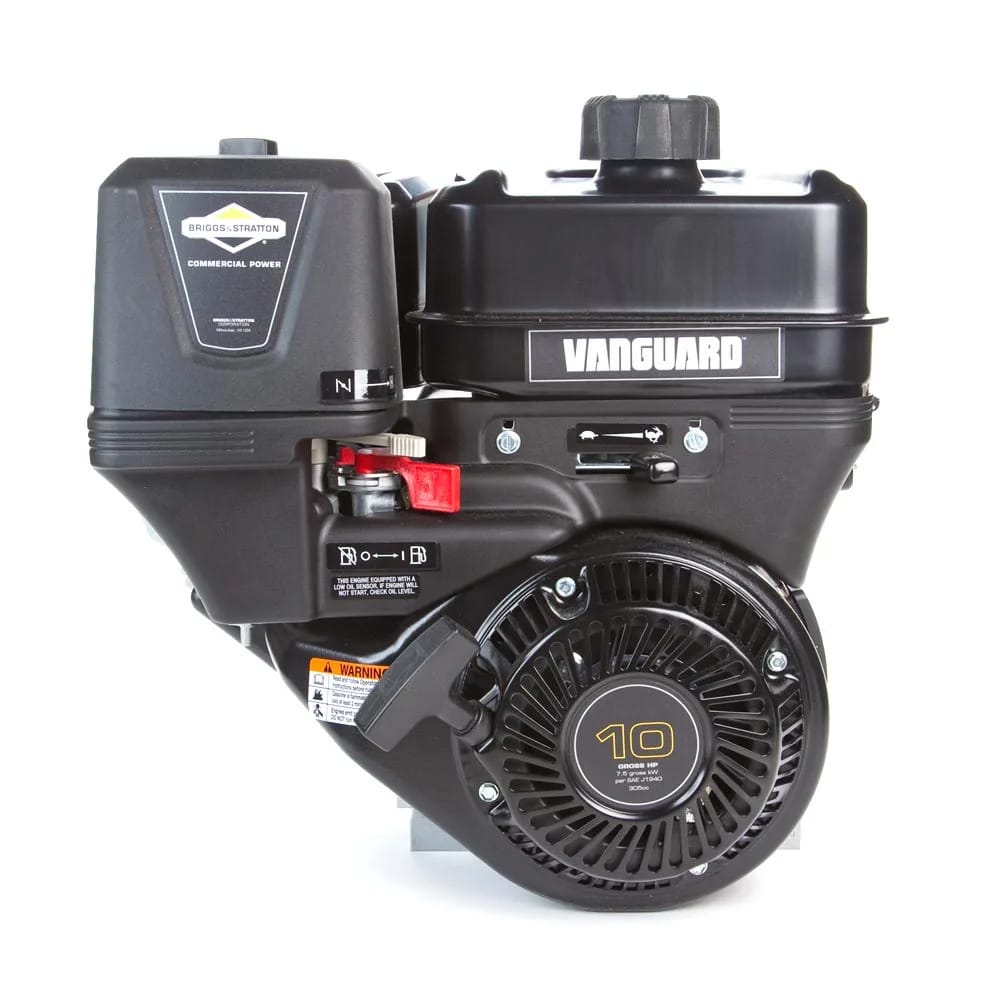

Briggs & Stratton 19L232-0036-F1 10HP 306cc Engine – 1in Shaft

Description

Cast with a heavy iron cylinder liner, the Briggs & Stratton 19L232-0036-F1 horizontal shaft engine withstands high-torque continuous resistance on demanding contractor machinery. Portable sawmills and large hydraulic log splitters create severe continuous resistance that bakes lightweight utility engines and throws connecting rods. Briggs & Stratton builds this 306cc commercial engine with an induction-hardened 1-inch output shaft, forged connecting rods, and an overhead valve cylinder head engineered to dissipate heat.

Dual ball bearings anchor the 1-inch PTO shaft against excessive side-load belt tension, protecting the crankcase oil seal from premature leakage. Splash lubrication coats the lower rod journal and wrist pin in an unbroken oil barrier, shielding moving metal from friction wear under continuous full-load operation. The high-capacity commercial air cleaner blocks abrasive silica dust, preserving factory compression over hundreds of hours on remote timber sites.

Technical Specifications of Briggs & Stratton 19L232-0036-F1

• 306cc Commercial OHV Powerplant: Produces 10.0 rated horsepower and high torque displacement to handle heavy timber and hydraulic loads.
• 1-Inch Straight Keyed Shaft: Built to withstand severe torsional shock loads on portable sawmills and commercial log splitters.
• Durable Cast-Iron Cylinder Sleeve: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual Ball Bearing Crank Support: Stabilizes the PTO crankshaft end against severe lateral belt tension and chain drive whip.
• Dual-Element Commercial Air Cleaner: Traps fine dust particles across two media layers to preserve cylinder wall compression.
• Heavy-Duty Manual Recoil Starter: Features high-strength cord and steel ratchet pawls for dependable hand starting.
• All-Steel Fuel Tank with Filter: Stores gasoline securely with an internal screen to keep tank debris out of fuel lines.
• Mechanical Governor System: Holds engine RPM steady when hydraulic or saw blade resistance spikes during operation.

Operational Reliability in Commercial Service

This engine delivers dependable commercial utility stamina while handling severe torsional shock loads on heavy equipment frames.

• An oversized 1-inch output shaft handles high radial belt tension and direct coupling shocks without bending.
• Centrifugally cast iron cylinder lining and thick crankcase casting prevent thermal distortion during continuous operation.
• Sawmill operators and tree care professionals gain dependable power for high-hour processing machinery.
• Standard base bolt dimensions allow fast drop-in repower swaps without frame drilling or fabrication delays.

Machinery Compatibility & Chassis Mounting

Weighing 55 pounds dry with an industry-standard 4-bolt horizontal mounting base and 1-inch shaft, this motor powers portable band sawmills, commercial log splitters, heavy hydraulic power packs, and high-GPM trash pumps without frame modifications.

Warranty Coverage & Preventive Maintenance

• Commercial fleet operators receive 2-Years of limited factory warranty coverage against component defects.
• Residential and estate owners receive 2-Years of complete consumer warranty protection.

Maintain peak performance by changing oil every 100 hours with standard 10W-30 engine oil, cleaning the foam pre-filter weekly on logging sites, and checking the spark plug gap at 0.030 inches. Order the Briggs & Stratton 19L232-0036-F1 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
