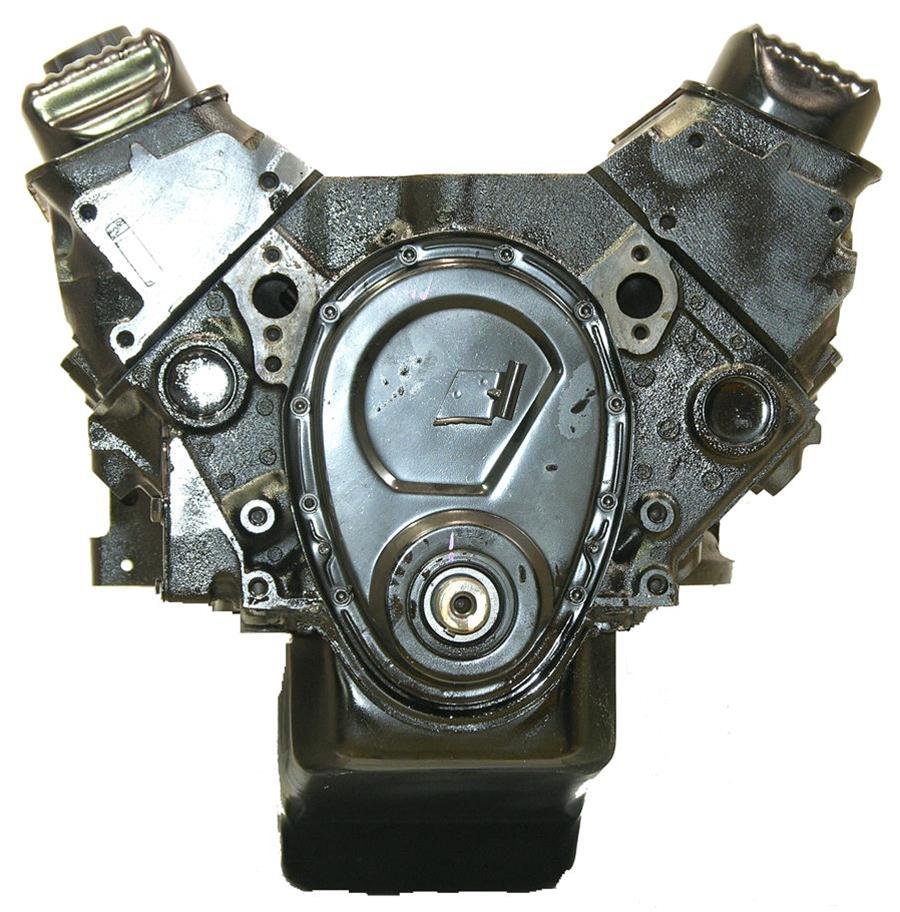

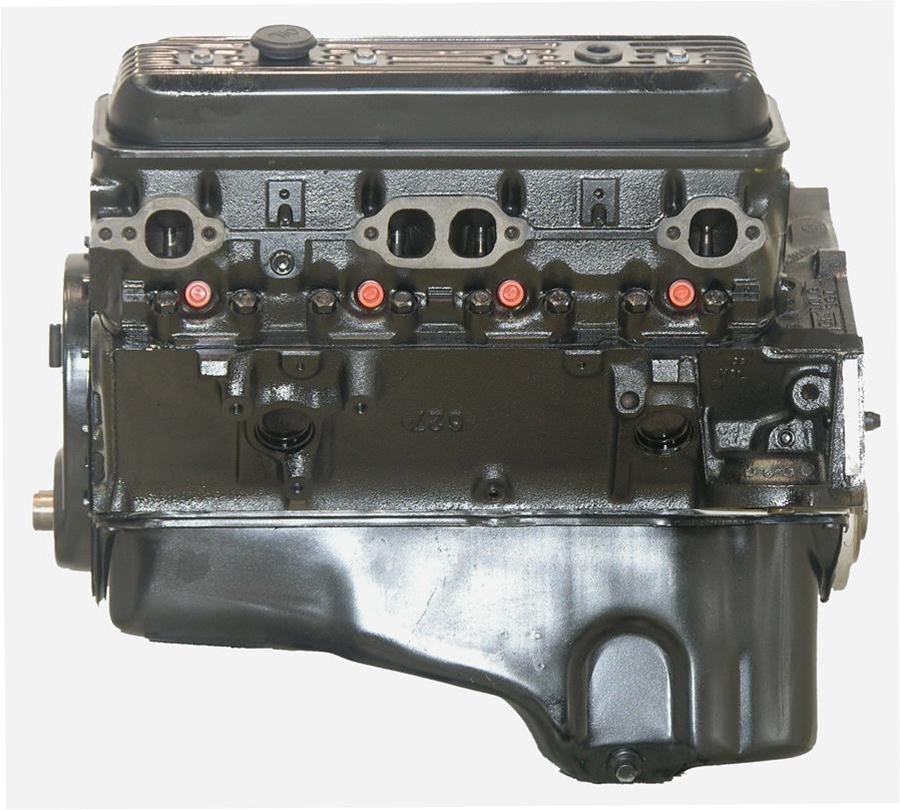

VEGE Remanufactured VCA9 5.0L 305ci High Output Long Block Engine

Description

Facing recurring valvetrain fatigue? Select the VEGE VCA9 High Output Long Block Engine for your critical commercial long block repower. This 5.0L 305ci 8-Cylinder powerplant generates 225HP for delivery van fleets. Install technicians must inspect dipstick tube entry orientation because side block tube holes change driver and passenger side entry points between model years.

High structural density ASTM Class 30 gray iron composes the engine block casting. This VEGE engine core utilizes a balanced nodular iron crankshaft and forged AISI 1141 connecting rods. Heat treated 21-4N intake and stellite faced exhaust valves resist thermal fatigue. The 12V direct starter draws 170A during initial bench testing. Total dry weight registers 460 lbs within an envelope of 28in length, 26in width, 27in height, with 5.0 quarts oil capacity.

Key Features of VEGE VCA9

Shop owners buy VEGE VCA9 High Output Long Block Engine packages to accomplish an industrial engine rebuild with minimum technician downtime. Computerized cylinder boring ensures uniform bore perpendicularity to prevent ring taper wear under sustained route operation.

• A reliable 5.0L 305ci displacement balances fuel efficiency with strong low-end pulling torque.
• Diamond plateau cylinder honing provides optimal cross-hatch angles for instant piston ring seating.
• Hardened exhaust valve seat inserts prevent seat erosion during high temperature highway transit.
• The VCA9 commercial core features a hydraulic camshaft profiled for wide torque distribution.
• Tri-metal engine bearings absorb transient peak loads to protect connecting rod journals.
• A heavy duty dual link timing chain maintains exact camshaft synchronization through all gear shifts.
• Multi layer cylinder head gaskets prevent fire ring degradation under high combustion heat.

Dynamometer Verification Operational Thresholds

Dynamometer testing proves this VCA9 long block engine delivers 225HP and 295 ft-lbs of torque at 4,000 RPM. Continuous dynamometer runs hold 2,300 RPM while engine oil gallery pressure stays between 46 PSI and 60 PSI. Oil sump temperature levels out at 190°F with exhaust gas temperatures peaking at 1,210°F. Bench compression gauges read 180 PSI in all eight cylinders with variance under 4%. Crankshaft journal runout remains under 0.0003in TIR to protect main bearings from friction wear.

Field Installation Maintenance Protocols

Carburetor or throttle body linkages must produce 5 lbs return force to prevent sticky throttle travel. Do not install this commercial replacement engine into high RPM racing skids or industrial pump stations lacking variable governors. Plant service personnel must carry out vital maintenance routines.

• Drain break-in lubricants and replace the oil filter element at 500 miles or 25 run hours.
• Check cold hydraulic valve lash to set zero lash plus one-half turn down on the rocker nuts.
• Inspect cooling system hoses and thermostat to confirm coolant circulation at 195°F.

Crate Manifest Coverage Terms

Engine rebuilding adheres to the established VEGE assembly standard supported by a 3-Year 100,000-mile parts warranty. Inside the durable shipping crate lies the assembled long block core, sealed oil pan, timing cover, steel valve covers, oil pump pickup tube, and the inspector sign-off documentation.
