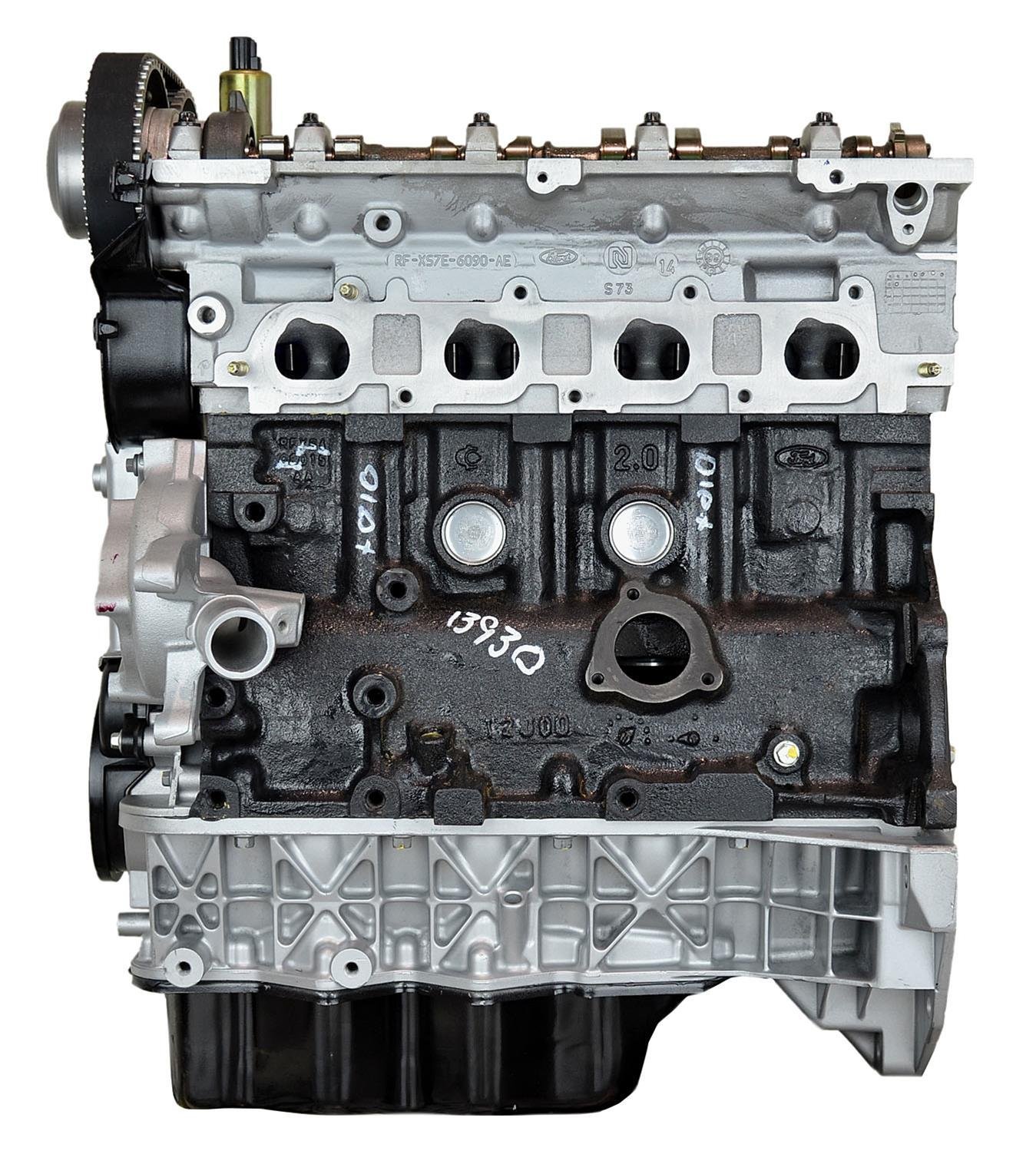

VEGE Remanufactured DFYE 2.0L 121ci Multi Purpose Long Block Engine

Description

Intake tumble flap rod wear and keyless crank timing slip trigger rough idling and power loss in courier hatchbacks. The VEGE Remanufactured DFYE 2.0L 121ci Multi Purpose Long Block Engine eliminates timing slip through an industrial engine rebuild. This 2.0L 4-Cylinder DOHC build develops 136HP, but mechanics must verify diamond friction washer placement on the crankshaft snout.

Cast from ASTM A319 aluminum alloy with cast-in iron liners, this VEGE engine core houses a 16-valve aluminum head and an induction-hardened forged steel crankshaft. Starter draw measures 140A on 12V circuits. Bare engine weight reaches 250 lbs within 22in length, 21in width, 24in height dimensions holding 4.5 quarts oil.

Key Features of VEGE DFYE

Courier fleet managers buy VEGE Remanufactured DFYE 2.0L 121ci Multi Purpose Long Block Engine packages to maintain urban parcel fleets without expensive vehicle replacements. Diamond-coated friction washers locked between timing sprockets maintain precise camshaft synchronization under rapid stop-and-go throttle transitions.

• Displacement measures 121ci utilizing a 3.445in bore and 3.270in stroke rotating assembly.
• Diamond-coated friction washers lock the keyless crankshaft timing components to prevent timing drift.
• Dual overhead camshaft architecture provides rapid throttle response across urban traffic speeds.
• Cast-in iron cylinder liners maintain bore roundness under severe continuous engine temperatures.
• DFYE commercial core line-boring guarantees true crankshaft journal rotation under heavy loads.
• Hydraulic valve buckets provide silent valvetrain operation without frequent shim adjustments.
• Cast aluminum pistons maintain exact skirt clearance to stop cylinder bore scuffing under load.

Shop Test Stand Tolerances

Hot test protocols record vital statistics on every DFYE long block engine before dispatch. The assembly generates 136HP at 6000 RPM alongside 133 ft-lbs torque at 4250 RPM. Sump oil gallery pressure stabilizes at 50 PSI at 195°F operating temperature. Cylinder compression gauges show 180 PSI across all ports with 3% variance. Crankshaft runout checks at 0.0002in TIR. Dynamic exhaust gas temp stabilizes at 1240°F under dyno loading.

Installation Demands Maintenance Guidelines

Electronic throttle pedal pull resistance checks out at 4 lbs force. This DOHC four-cylinder engine is NOT designed for turbocharged conversions, longitudinal rear-wheel-drive configurations, or machinery running non-synthetic engine oils.

• Drain break-in motor oil and renew the filter element after 500 highway transit miles.
• Inspect crankshaft pulley bolt torque using factory angle-yield protocol after initial dyno runs.
• Check cam cover perimeter fastener torque to 80 in-lbs following initial temperature cycles.

Factory Guarantee Crate Inclusions

Protected under the dependable VEGE assembly standard, this remanufactured unit features a 3-Year 100,000-mile commercial warranty. The sturdy transport crate contains the long block engine, oil pan, valve covers, timing cover, oil pump with screen, and signed quality inspection sheet.
