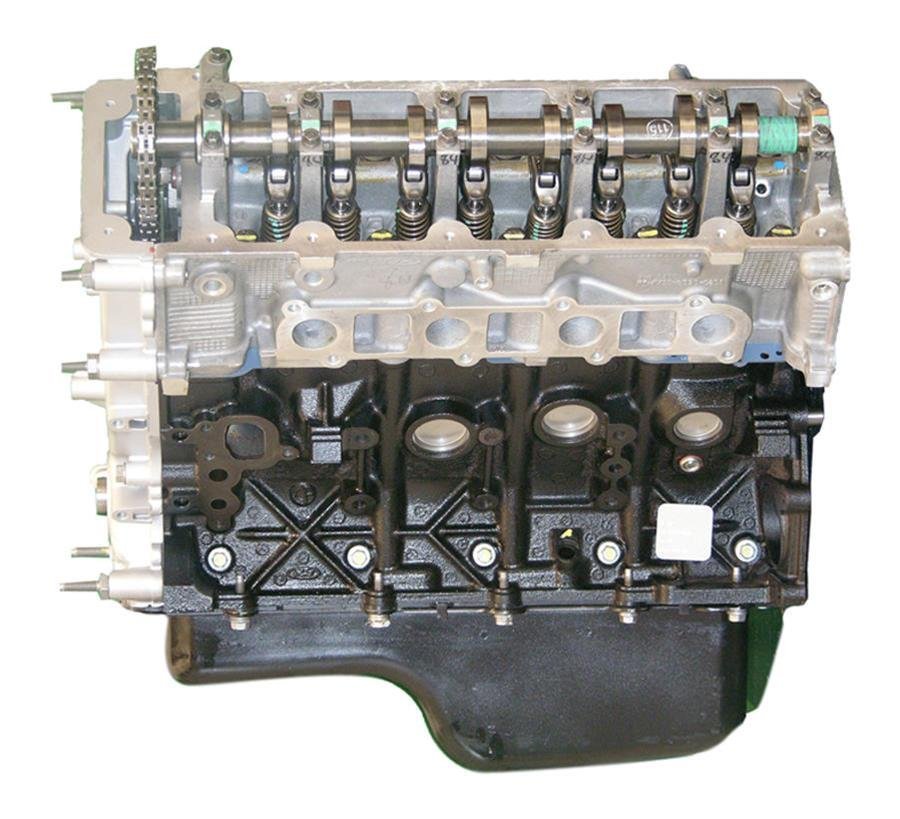

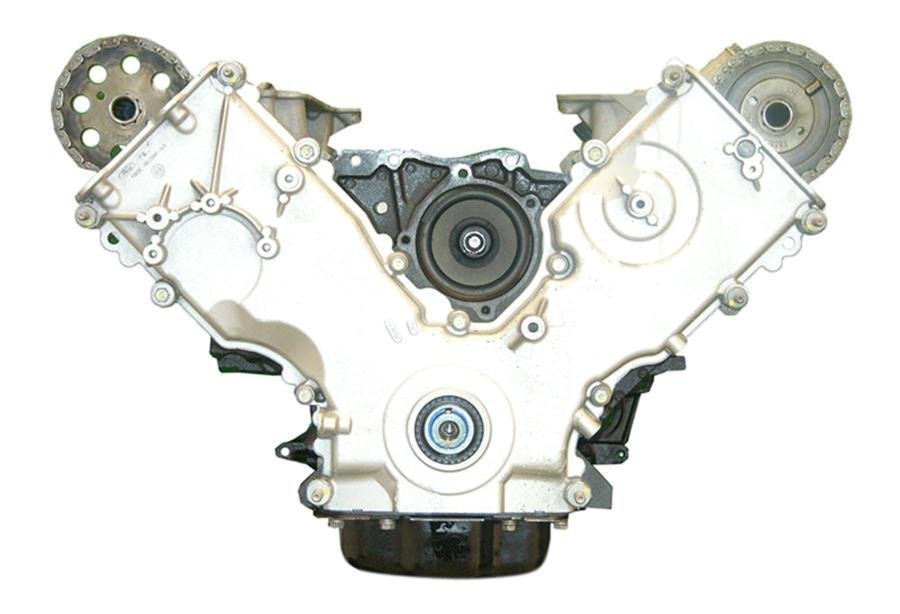

VEGE Remanufactured DFY4 5.4L 330ci Industrial Grade Long Block Engine

Description

Exhaust manifold stud shearing and shallow spark plug thread blowouts terminate once mechanics mount the VEGE Remanufactured DFY4 5.4L Long Block Engine. Delivering 255HP from a 330ci 8-Cylinder commercial long block repower format, this unit powers commercial transit equipment. Mechanics must verify cylinder head spark plug thread insert engagement depth prior to installing ignition coil packs.

Constructed from high-tensile ASTM A48 Class 30 gray iron, the engine block resists torsional chassis twist under heavy cargo loads. The VEGE engine core utilizes induction-hardened forged steel crankshaft journals and stellite-faced valves. Cranking starter demand requires 12V 185A. Engine dry weight reaches 525 lbs inside a 28in length, 27in width, 28in height mounting stance holding 6.0 quarts oil.

Key Features of VEGE DFY4

Commercial transport fleets buy VEGE DFY4 commercial long block packages to upgrade fleet reliability during demanding delivery schedules. Assembly cells maintain verified industrial engine rebuild clean-room assembly practices throughout production.

• Forged micro-alloy steel crankshaft features fillet-radiused journals holding 0.0003in TIR runout limits.
• Revised spark plug port threads feature full thread depth to eliminate cylinder head plug blowouts.
• Multi-layer steel cylinder head gaskets maintain combustion chamber seal integrity under severe thermal cycling.
• Plateau-honed cylinder walls provide optimal oil retention to seat steel compression rings without blowby.
• High-flow rotor oil pump delivers 55 PSI steady pressure to protect high-RPM camshaft journals.
• DFY4 commercial core includes revised oil return channels to accelerate crankcase drainback under heavy loads.
• Tri-metal bearings feature copper-lead backing to absorb abrasive debris particles safely under heavy loads.

Dynamometer Load Verification Bench Data

Certified dyno testing confirms 255 continuous BHP and 350 ft-lbs torque output at 3500 RPM continuous test load. Pressure gauges register 55 PSI oil gallery pressure at 195°F oil sump temperature, while exhaust gas temp levels off at 1240°F during dyno load. Compression testing demonstrates 180 PSI per cylinder with under 4% variance across all eight cylinders. Crankshaft center runout measures 0.0003in TIR on the DFY4 long block engine.

Chassis Installation Limits Maintenance Rules

Mechanical throttle lever operation takes 5 lbs pull force through the linkage bracket assembly. This power unit is NOT engineered for transverse front-wheel drive car platforms or passenger vans with low doghouse clearance. Shop technicians must carry out standardized maintenance routines on all newly mounted units.

• Empty initial break-in lubricant reservoir at 500 miles or 30 run hours.
• Check hydraulic lash adjuster zero-lash travel limits prior to front timing cover sealing.
• Retorque cylinder head torque-to-yield fasteners in three steps following factory sequence.

Warranty Coverage Packaged Core Manifest

Manufacturing adheres strictly to VEGE assembly standard metrics backed by a 3-Year 100,000-mile fleet warranty. The banded transport pallet holds the assembled long block, steel oil pan, aluminum timing cover, composite valve covers, oil pickup screen, and verified dyno run card.
