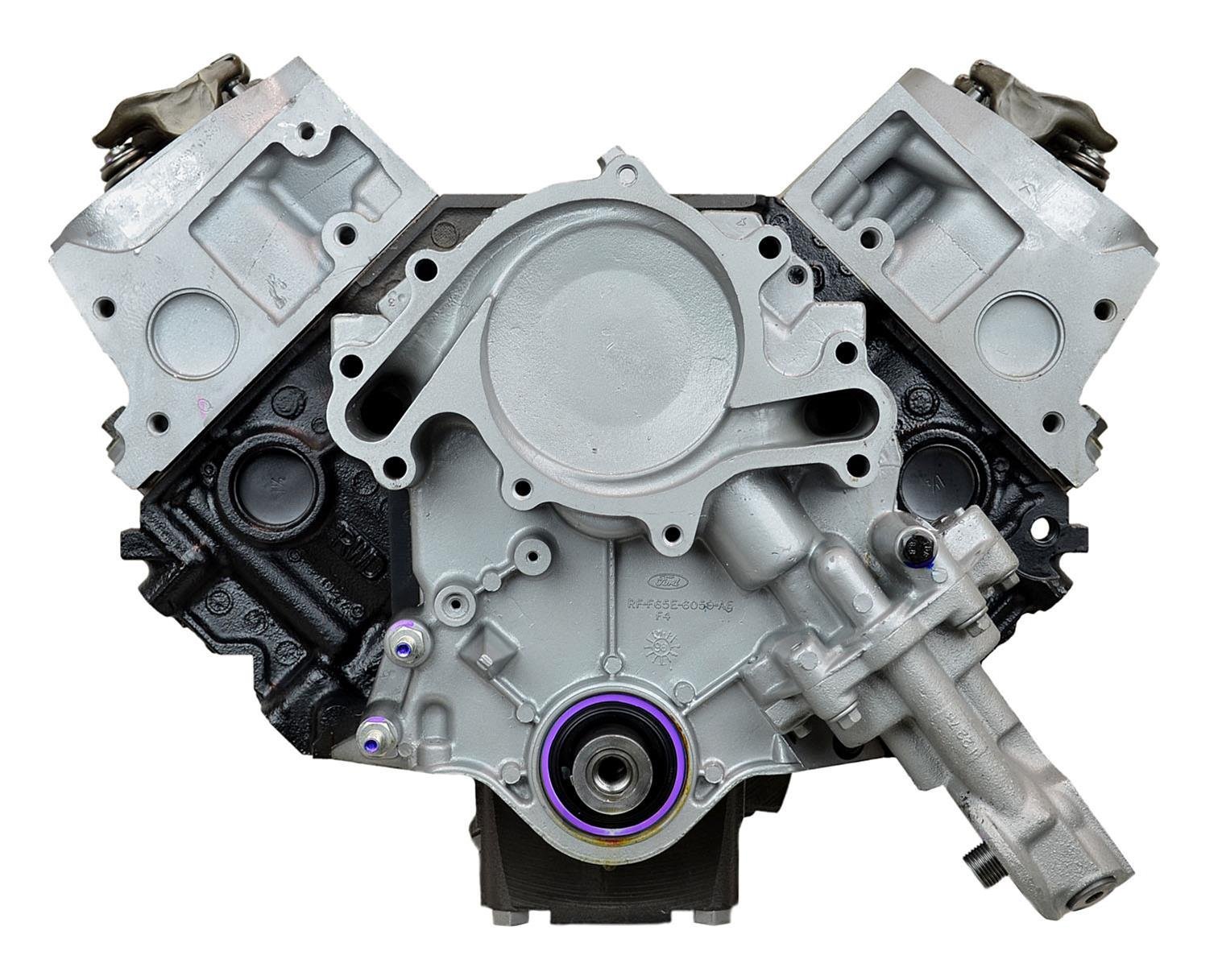

VEGE Remanufactured DFY2 4.2L 256ci Heavy Duty Long Block Engine

Description

Recover lost fleet route reliability with the VEGE DFY2 Long Block Engine, built for commercial long block repower needs in medium duty vans and work pickups. This 4.2L 256 cid Essex OHV V6 produces 205HP at 4,750 RPM. Installers must inspect lower intake manifold gaskets because deteriorated factory plastic gaskets cause coolant ingestion into oil galleries.

Solid ASTM A48 Class 35 cast iron shapes the 90° V6 engine block with reinforced main bearing saddles. A nodular iron split pin crankshaft with balance shaft anchors this VEGE engine core. Starter draw measures 155A on 12V commercial circuits. Dry weight scales at 395 lbs across dimensions measuring 25in length by 24in width by 26in height. Oil capacity holds 5.0 quarts.

Key Features of VEGE DFY2

Fleet mechanics buy VEGE DFY2 Long Block Engine units to minimize fleet downtime during an industrial engine rebuild turnaround. Remanufacturing processes update internal oil passages and bearing clearances to prevent premature main bearing wipeout.

• Cast iron cylinder heads house hardened exhaust valve seats to handle continuous commercial duty.
• A central camshaft design actuates hydraulic roller lifters to minimize internal friction losses.
• Hypereutectic pistons resist ring land micro welding under severe stop and go delivery cycles.
• The DFY2 commercial core holds 0.0015in main journal bearing clearances for steady lubrication support.
• An internal balance shaft cancels primary engine harmonics for smooth passenger compartment operation.
• A single roller timing chain maintains camshaft synchronization without chain whip or stretch.
• Multi layer steel head gaskets stop combustion blow by across the deck under heavy mechanical strain.

Dynamometer Bench Testing Thermal Ratings

Dynamometer pulls certify 205HP at 4,750 RPM and 260 ft-lbs torque at 3,000 RPM for this DFY2 long block engine. Pressure transducers indicate 50 PSI oil gallery pressure at 2,000 RPM while maintaining 195°F coolant operating temperature. Combustion chamber compression balances at 175 PSI across all six cylinders within 4% variance. Crankshaft dial indicators verify 0.0002in TIR total runout. Exhaust pyrometers register 1,210°F under sustained full brake load.

Field Usability Preventive Maintenance Schedules

Mechanical throttle linkages require 4 lbs pull force to sweep from idle stop to wide open throttle. Fleet maintenance shops should not choose this heavy duty replacement engine for chassis lacking matched powertrain computers or vehicles running blocked cooling radiators.

• Drain break in crankcase oil after 500 miles or 30 run hours then install fresh 5W-30 motor oil.
• Inspect balance shaft drive gears for lash clearance before installing front timing covers.
• Check cylinder head fasteners in proper sequence reaching 85 ft-lbs following initial thermal cycles.

Crate Inclusions Verified Warranty Terms

The VEGE build standard includes a 3-Year or 100,000-mile limited manufacturer warranty. The heavy wooden crate holds the remanufactured long block core, oil pan, timing cover, valve covers, oil pump pickup tube, plus certified remanufacturing inspection sheets.
