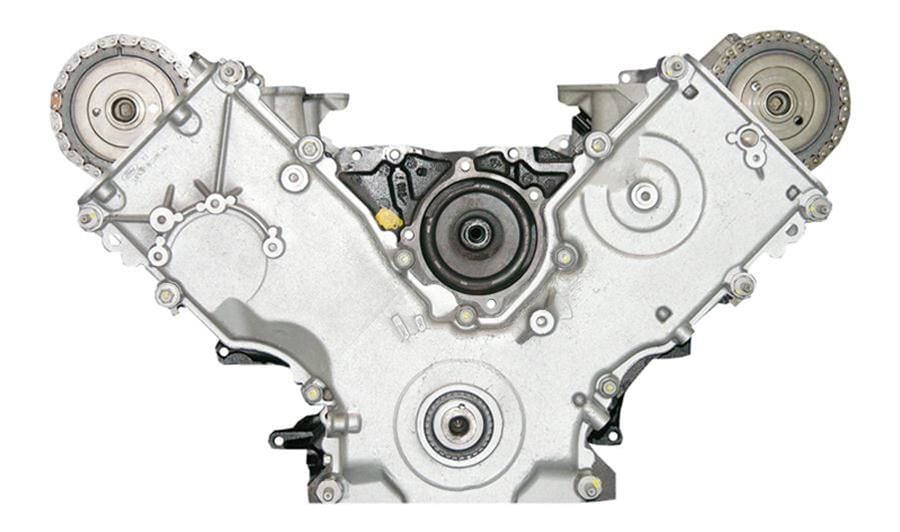

VEGE Remanufactured DFCT 5.4L 330ci Premium Grade Long Block Engine

Description

A 5408cc displacement baseline powers the VEGE DFCT Premium Grade Long Block Engine during your commercial long block repower. This 5.4L 330ci 8-Cylinder single overhead cam unit generates 260HP for utility truck fleets. Mechanics must inspect timing chain tensioner guide pins because brittle plastic guides break under slack chain vibration and cause camshaft jump timing.

Solid ASTM A48 Class 35 gray iron forms the deep skirt cross-bolted block architecture to resist high load stress. Every VEGE engine core features an induction hardened nodular iron crankshaft supported by forged powder metal connecting rods. Exhaust valves use stellite face material inside wear resistant guides. The 12V starter draws 175A under cold crank test loads. Dry engine weight measures 520 lbs with dimensions of 28in length, 27in width, 28in height, with 6.0 quarts oil capacity.

Key Features of VEGE DFCT

Fleet mechanics buy VEGE DFCT Premium Grade Long Block Engine setups to finalize an industrial engine rebuild with verified shop floor reliability. Deck resurfacing guarantees Ra 30 smoothness to support multi layer cylinder head gaskets under prolonged route heat.

• A high efficiency 5.4L 330ci platform provides continuous low RPM torque to pull municipal service trucks.
• Cross-bolted main bearing caps spread rotational forces to eliminate bottom end flex under load.
• Plateau honed cylinder walls allow fast compression ring seating within initial engine run hours.
• The DFCT commercial core timing set incorporates steel backed guide arms to prevent chain slap.
• High volume oil pumps ensure constant lubrication through internal cylinder head oil passages.
• Shot-peened connecting rods resist fatigue failures during continuous commercial route transit.
• Corrosion resistant brass freeze plugs protect the water jacket from cooling fluid deterioration.

Dynamometer Verification Operational Thresholds

Dyno load cell verification proves this DFCT long block engine produces 260HP and 350 ft-lbs of shaft torque at 4,500 RPM. Testers sustain a 2,400 RPM continuous load while oil gallery pressure holds between 45 PSI and 65 PSI. Engine oil sump temperature reads 195°F and exhaust gas heat levels reach 1,220°F. Compression testing confirms 180 PSI across all eight cylinders within 4% variance. Crankshaft journal runout measures 0.0002in TIR to verify true rotational alignment.

Field Installation Maintenance Protocols

Mechanical throttle cables demand 5 lbs pull force to guarantee positive throttle plate return to idle position. Do not install this commercial replacement engine into lightweight front wheel drive cars or stationary woodchippers lacking radiator shrouds. Fleet service teams must apply standard maintenance protocols.

• Flush break-in motor oil and install a fresh oil filter after 500 miles or 30 run hours.
• Verify hydraulic lash adjusters establish zero lash inside overhead camshaft cylinder heads.
• Check cooling system thermostat operation to verify standard coolant flow initiates at 195°F.

Crate Manifest Coverage Terms

All rebuilding methods comply with the VEGE assembly standard backed by a 3-Year 100,000-mile parts warranty. The timber shipping crate houses the sealed long block core, steel oil pan, front timing cover, stamped valve covers, oil pickup tube, and the inspector verification sheet.
