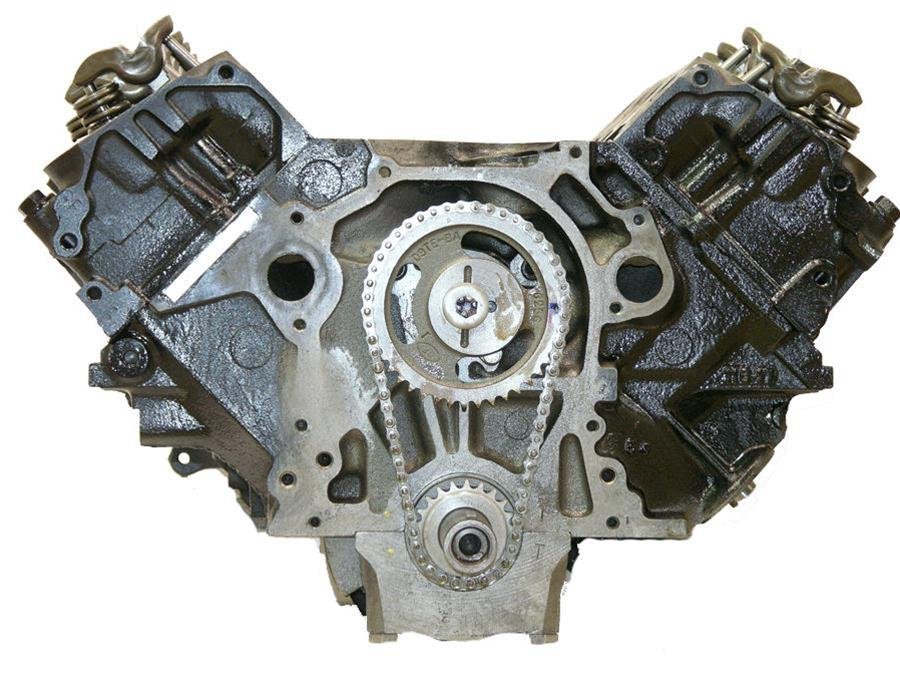

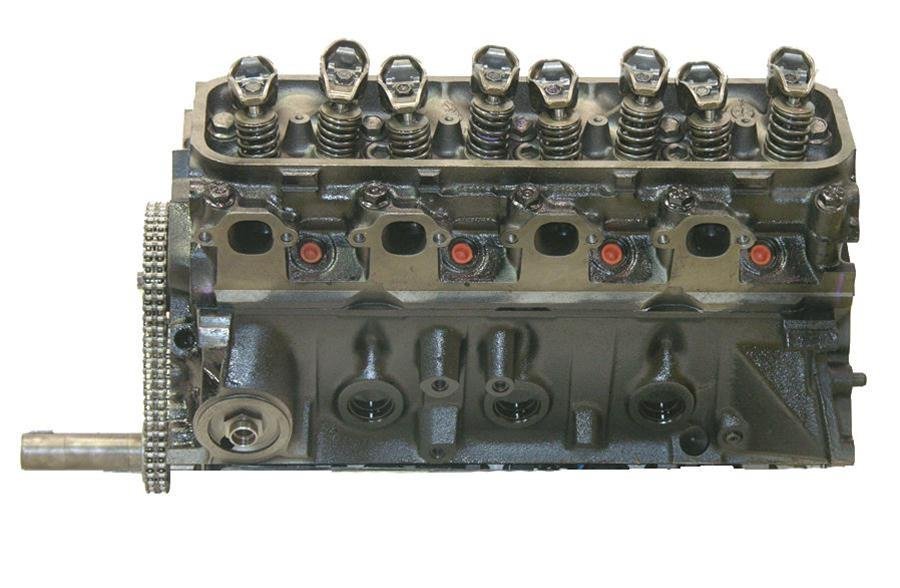

VEGE Remanufactured DFC6 7.5L 460ci Industrial Grade Long Block Engine

Description

Scored cylinder liners and worn distributor thrust surfaces cause sudden timing drift across municipal irrigation pump stations. The VEGE Remanufactured DFC6 Industrial Grade Long Block Engine terminates chronic field breakdowns during an industrial engine rebuild project. This 7.5L 460ci 8-Cylinder iron block produces 235HP. Technicians must check governor drive gear backlash before setting stationary throttle controls.

High nickel ASTM A48 Class 35 cast iron forms the rigid deep skirt block and heavy combustion chambers. A precision ground nodular iron crankshaft rotates inside tri-metal copper lead bearings inside this VEGE engine build. Industrial starter motors pull 185A from standard 12V heavy duty electrical connections. Dry unrigged package weight measures 625 lbs across dimensions of 32in length, 28in width, 29in height. The deep stamped steel pan holds 7.0 quarts.

Key Features of VEGE Remanufactured DFC6

Plant supervisors buy VEGE Remanufactured DFC6 Industrial Grade Long Block Engine units to power critical municipal pump stations. This commercial long block repower integrates severe duty valvetrain hardware and resurfaced iron decks to ensure uninterrupted run hours.

• Heavy duty flat tappet camshafts deliver flat torque curves designed for stationary centrifugal pumps.
• 0.0018in connecting rod journal clearances preserve protective hydrodynamic oil films under continuous loads.
• Induction hardened exhaust valve seats stop pocket sink when burning dry gaseous alternative fuels.
• The DFC6 commercial core features double roller steel timing sets that eliminate camshaft timing slack.
• Plateau honed cylinder walls allow cast iron rings to seat fast without bore glazing.
• Stellite valve face overlays prevent seat recession under severe continuous thermal loading.
• Multi layer steel cylinder head gaskets maintain fire ring seal integrity across large cylinder bores.

Dynamometer Testing Operational Boundaries

Dyno cell verification rates this DFC6 long block engine at 235 BHP and 390 ft-lbs of continuous torque at 2600 RPM. Main gallery oil pressures register 55 PSI at 195°F oil pan thermal stabilization. Exhaust runner thermocouples measure 1220°F during continuous test runs on the water brake absorber unit. Cylinder compression gauges verify 175 PSI across all eight cylinders within 4% balance across both cylinder banks. Crankshaft total runout measures under 0.0003in TIR to safeguard bearing babbit surfaces under load.

Field Operational Installation Directives

Governor linkage connections demand 5 lbs of continuous pull resistance for stable engine speed governing. This 460ci big block engine is NOT engineered for modern front-wheel drive vans, lightweight passenger sedans, or marine ski boats requiring water jacket bronze core plugs.

• Dump initial break-in mineral oil alongside the spin-on filter at 50 hours or 500 miles using high zinc oil.
• Adjust hydraulic rocker nuts to zero lash plus one-half turn down during cold pre-assembly adjustments.
• Retorque cylinder head bolts in proper progression sequence following initial engine thermal warm up cycles.

Crate Manifest Warranty Protection

Built to match the rigorous VEGE assembly standard, this industrial long block includes a 3-Year 100,000-mile parts warranty. The timber freight crate encloses the sealed long block, industrial oil pan, timing cover, steel valve covers, oil pickup screen, and authenticated shop dynamometer quality checklist.
