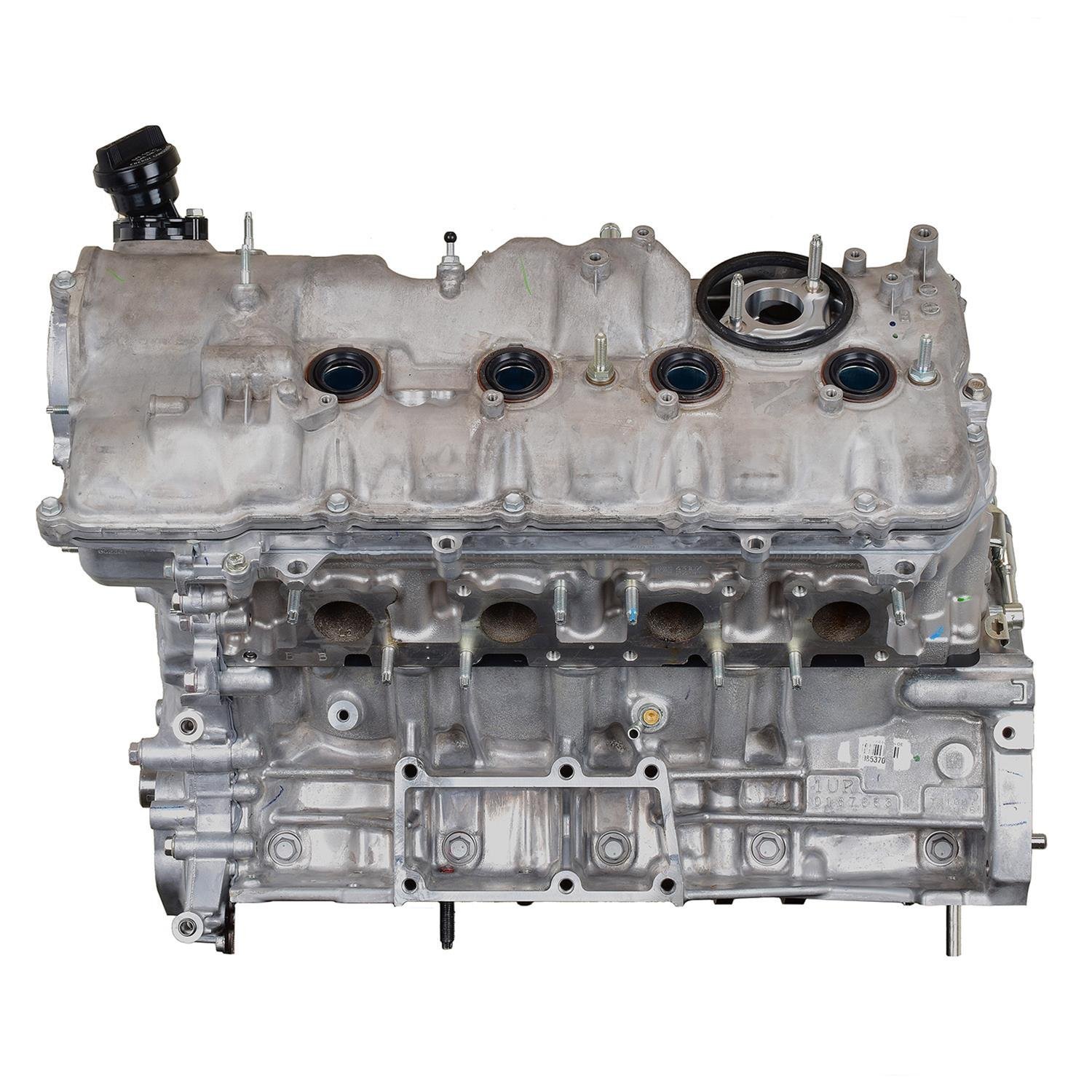

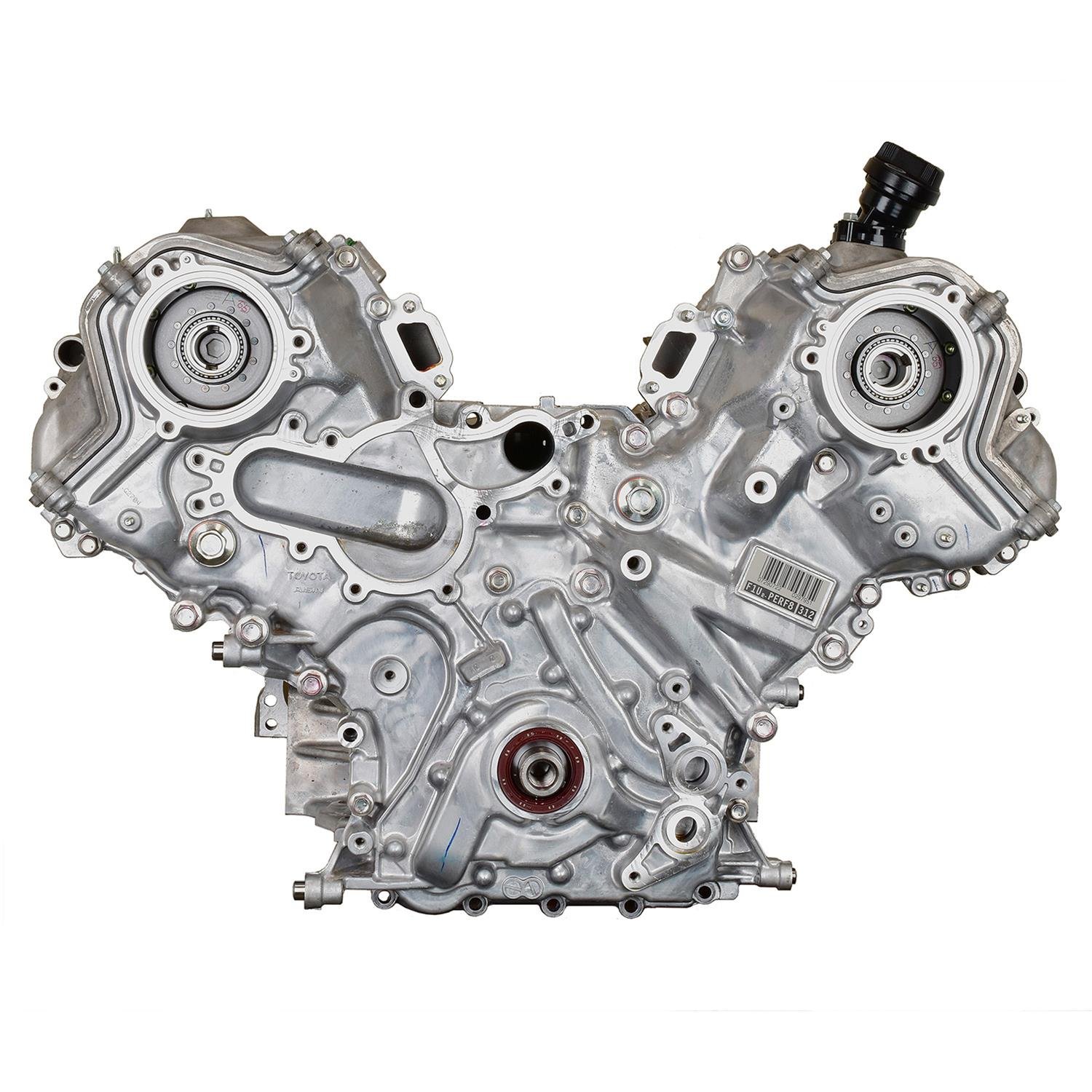

VEGE Remanufactured 863 4.6L 4608cc Car Truck Long Block Engine

Description

Chain guide fracture and spark plug thread blowout incapacitate commercial shuttle vans mid-route. The VEGE Remanufactured 863 4.6L 4608cc Car Truck Long Block Engine eliminates catastrophic modular engine breakdown through a commercial long block repower. This 4.6L 8-Cylinder overhead cam build generates 225HP, requiring installers to verify oil filter adapter gasket passage alignment before installation.

Cast with ASTM A48 Class 30 gray iron, this VEGE engine core pairs with aluminum SOHC 2-valve heads and an induction-hardened cast iron crankshaft. Starter draw measures 155A on 12V systems. Dry engine mass equals 480 lbs across 28in length, 28in width, 27in height dimensions with 6.0 quarts oil capacity.

Key Features of VEGE 863

Fleet mechanics buy VEGE Remanufactured 863 4.6L 4608cc Car Truck Long Block Engine assemblies to restore predictable delivery route performance to Ford fleet platforms. The updated cylinder heads incorporate full-depth steel spark plug thread inserts to permanently stop plug ejection failures under cylinder pressure.

• Bore diameter measures 3.552in paired with a 3.543in stroke for broad commercial torque output.
• Upgraded cam timing tensioner seals prevent oil pressure bleed-down and timing chain guide slapping.
• Hardened steel spark plug thread inserts stop high-pressure blowout failures permanently.
• Hydraulic lash adjusters provide zero-maintenance valvetrain operation throughout engine life.
• 863 commercial core machining guarantees deck flatness within 0.0002in across the block face.
• Tri-metal copper-lead bearings withstand persistent low-speed delivery route idling periods.
• Micro-finished camshaft journals minimize friction inside the overhead cam aluminum towers.

Hot Cell Verification Data

Testing on every single 863 long block engine guarantees factory-spec power delivery. The assembly achieves 225HP at 4800 RPM and 286 ft-lbs torque at 3500 RPM. Sump oil gallery pressure holds 50 PSI hot at 195°F operating temperature. Cylinder compression verifies 170 PSI across all cylinders with 3% variance. Crank journal runout limits to 0.0003in TIR. Steady exhaust gas temp settles at 1220°F under dyno loading.

Vehicle Constraints Service Tasks

Throttle body linkage pull measures 5 lbs force. This SOHC 2-valve modular unit is NOT suited for 3-valve or 4-valve modular harness applications, direct-injection computer platforms, or transverse front-wheel-drive sedans.

• Drain break-in motor oil and install a fresh oil filter after the initial 500 service miles.
• Inspect front accessory drive belt tensioner alignment after the first 100 hours of run time.
• Check cam cover perimeter fastener torque to 8 ft-lbs following initial thermal normalization runs.

Coverage Terms Crate Manifest

Built under strict VEGE assembly standard protocols, this remanufactured powertrain includes a 3-Year 100,000-mile commercial warranty. Uncrating reveals the remanufactured long block core, oil pan, timing cover, cam covers, oil pump pickup screen, and certified test sheet.
