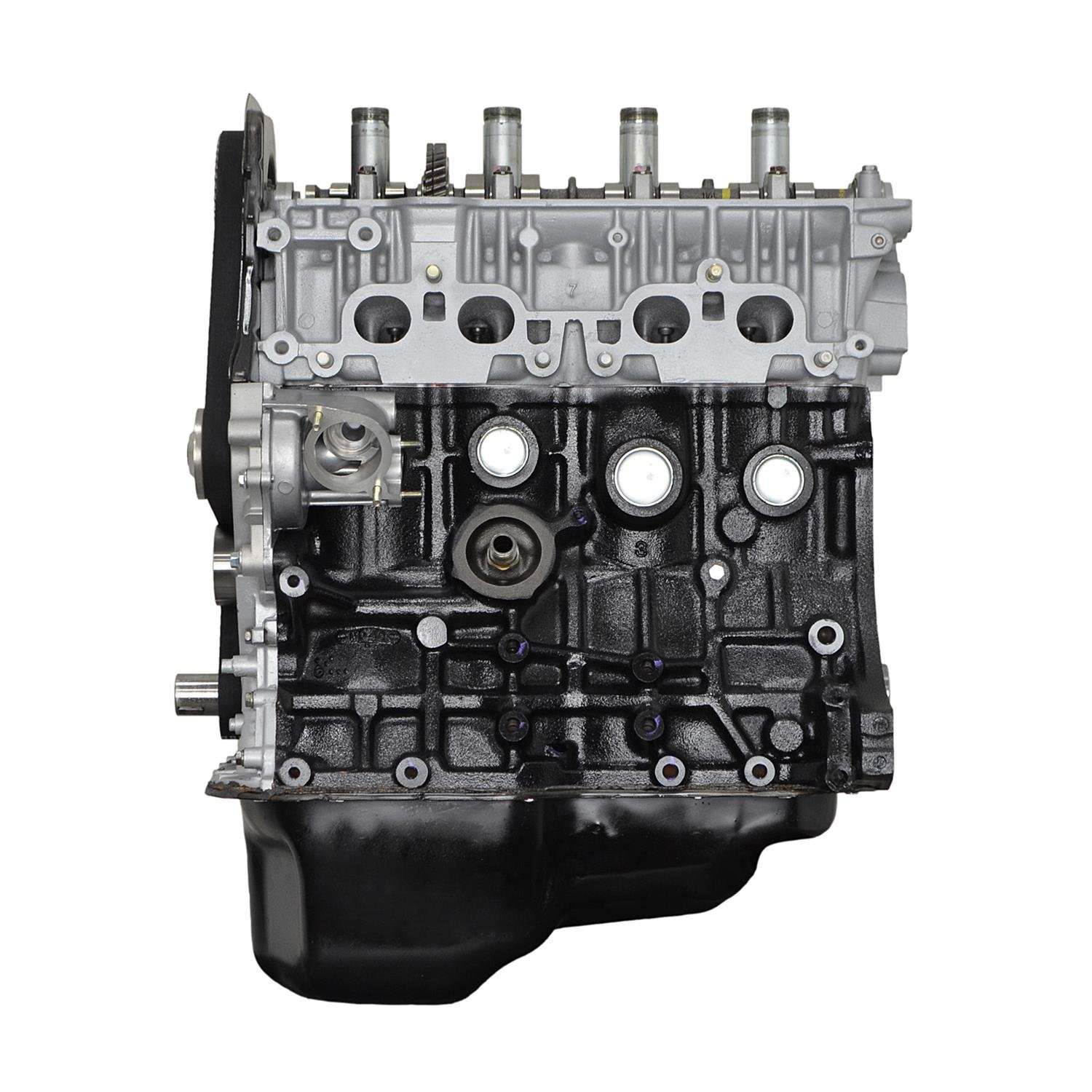

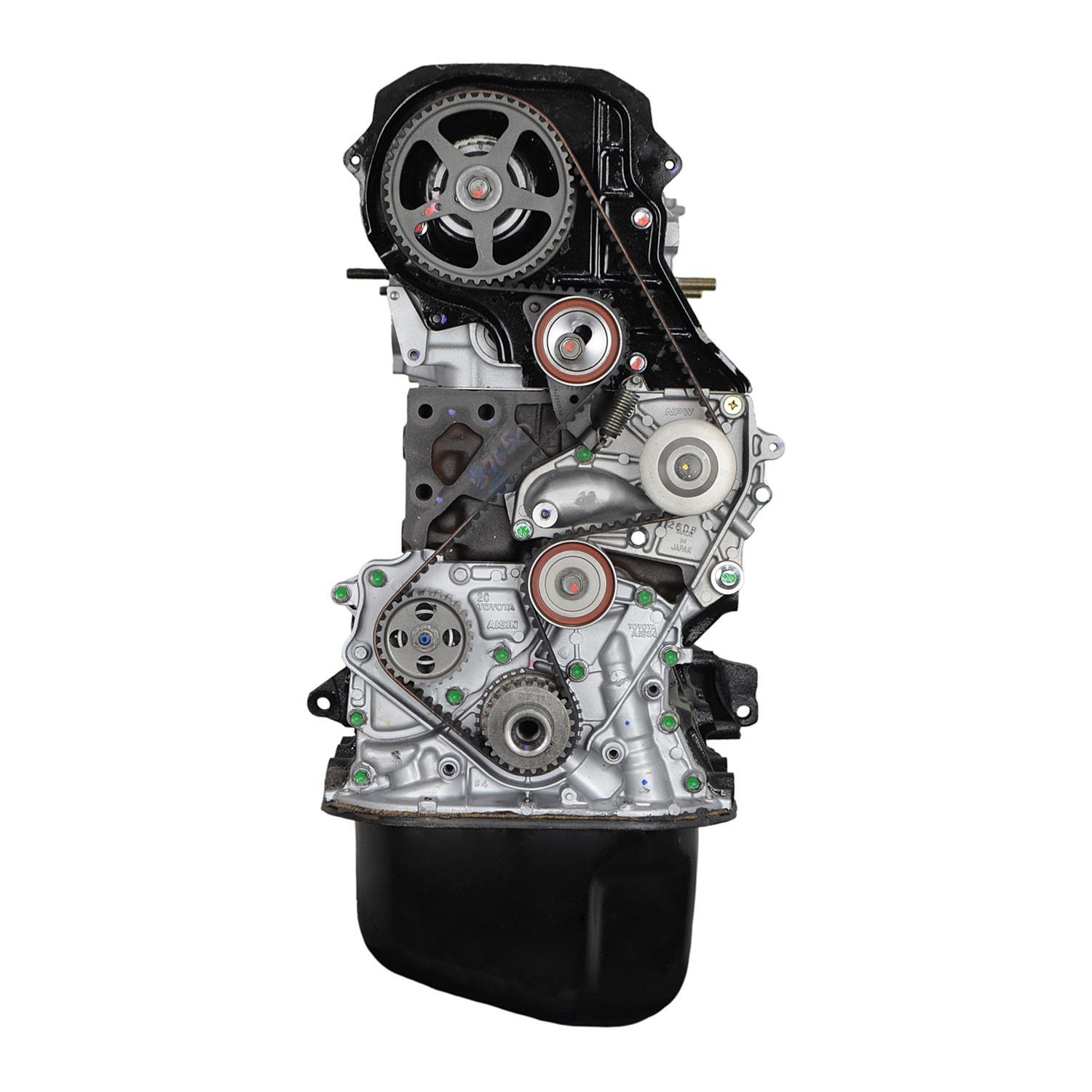

VEGE Remanufactured 835K 2.2L 2164cc Premium Grade Long Block Engine

Description

Hardened oil pump housing gaskets and clogged cylinder head oil drain passages cause severe bearing starvation in high mileage fleet sedans. The VEGE Remanufactured 835K Long Block Engine eliminates catastrophic oil pressure loss through an industrial engine rebuild protocol. This 2.2L 2164cc 4-Cylinder motor produces 135HP. Mechanics must verify balance shaft drive gear timing marks before installing the oil pan.

ASTM A48 Class 35 gray iron provides structural rigidity for the deep skirt inline four crankcase. Metallurgy in this VEGE engine core incorporates a micro polished forged steel crankshaft, forged connecting rods, and graphite coated aluminum pistons. Cold starting demands a 12V starter drawing 140A. Bare engine weight registers 280 lbs with exterior boundaries of 23in length, 21in width, 23in height backed by a 4.5 quarts oil pan.

Key Features of VEGE 835K

Fleet managers buy VEGE 835K Long Block Engine units to maintain reliable courier and taxi fleet uptime. CNC plateau cylinder honing ensures instantaneous ring break-in during each commercial long block repower.

• 4-Cylinder cast iron block receives automated line boring across all five main bearing journals.
• 16-Valve dual overhead cam cylinder heads feature precision cut multi angle valve seats.
• 2.2L displacement generates 145 ft-lbs torque for continuous urban delivery schedules.
• 0.0012in connecting rod clearance supports stable hydrodynamic fluid films under continuous operation.
• Internal balance shafts eliminate secondary harmonic vibrations to protect engine mount brackets.
• Fluoropolymer crank seals resist thermal hardening and prevent front timing belt oil soaking.
• 835K commercial core assemblies arrive with high capacity internal oil pump screens preinstalled.
• Multi layer steel head gaskets stop combustion gas leakage past cylinder fire rings.

Dynamometer Performance Test Limits

Hot cell brake tests establish 135BHP and 145 ft-lbs torque at 5200 RPM on the 835K long block engine. Main gallery pressure sensors confirm 46 PSI oil delivery at 195°F continuous sump operating temperature under full load. Compression gauges verify 180 PSI across all four cylinders with total variance held under 3% between bores. Exhaust gas pyrometer probes measure 1130°F during continuous high speed runs where precision calibrated indicators confirm crankshaft snout deflection below 0.0002in TIR across ground main journals.

Installation Protocols Vehicle Exclusions

Mechanical throttle cable assemblies require 4 lbs linear pull effort to stroke the throttle body mechanism during pedal travel. This engine is not built for turbocharged MR2 chassis, heavy all wheel drive utility trucks, or marine racing hulls.

• Flush initial break-in petroleum motor oil at 500 miles and replenish with API certified 5W-30 oil.
• Shim-over-bucket valve trains receive precise bench clearance settings to ensure zero valve maintenance.
• Cylinder head fasteners require torque-to-yield angle rotation steps and mandatory bolt replacement on all major service teardowns.

Warranty Protection Transport Manifest

Powertrain investments receive protection under the VEGE assembly standard 3-Year 100,000-mile commercial warranty. Each shipping crate encloses the complete remanufactured long block, front timing cover, stamped steel oil pan, aluminum valve cover, oil pump pickup screen, and verified dynamometer performance test sheets.
