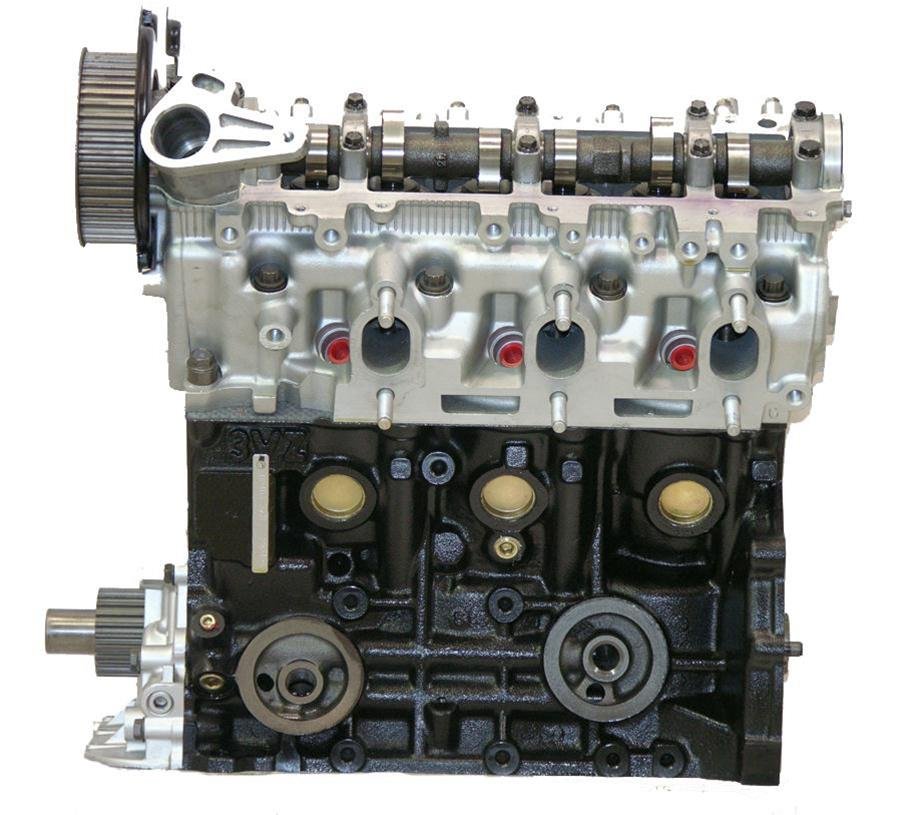

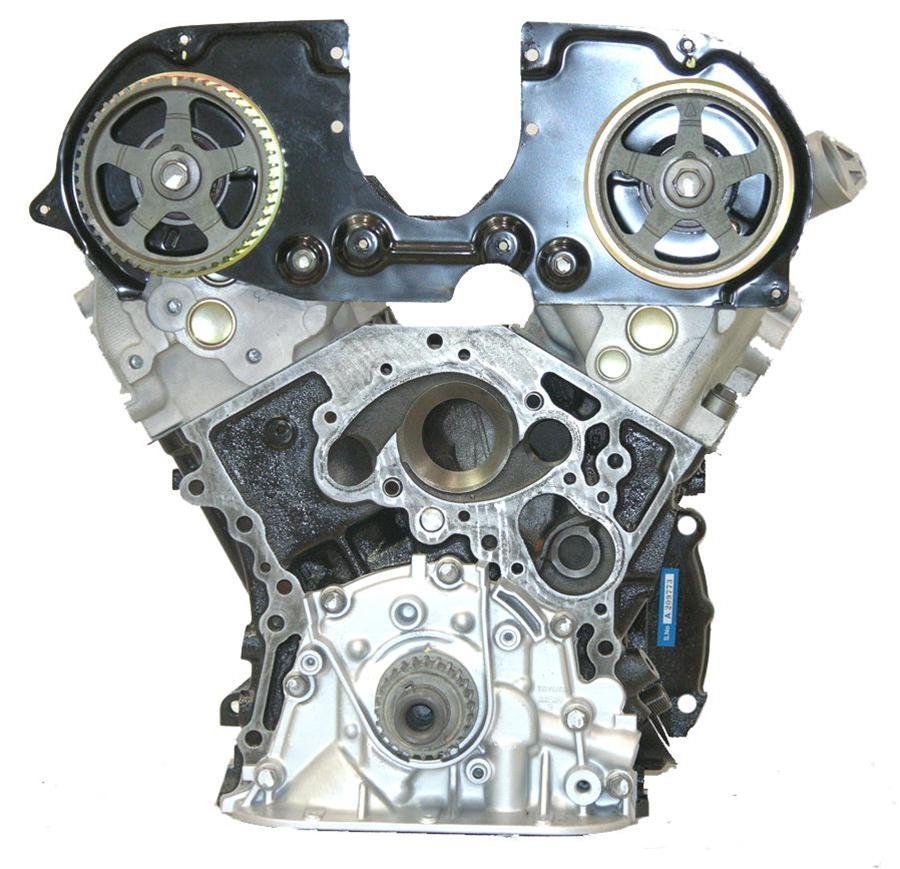

VEGE Remanufactured 833C 3.0L 2959cc Premium Grade Long Block Engine

Description

Exhaust manifold stud shearing and water pump idler seizure trigger catastrophic valvetrain collisions in commercial cargo transport vans. The VEGE Remanufactured 833C Long Block Engine eliminates timing slip risks through an industrial engine rebuild protocol. This 3.0L 2959cc V6 engine delivers 153HP. Mechanics must verify distributor drive gear lash and oil pump drive engagement before chassis installation.

Cast from ASTM A48 Class 30 gray iron, the rigid V6 crankcase controls thermal distortion under heavy route operation. This VEGE engine core features an induction hardened steel crankshaft, drop forged connecting rods, and aluminum alloy pistons. Cold starter draw measures 150A on standard 12V starting circuits. Engine dry weight reaches 365 lbs within exterior dimensions of 25in length, 24in width, 25in height and a 5.0 quarts oil capacity pan.

Key Features of VEGE 833C

Shop owners buy VEGE 833C Long Block Engine units to maintain reliable light transport schedules. Modern surface finishing methods restore deck flatness to ensure airtight sealing during each commercial long block repower.

• 6-Cylinder V-configuration iron block receives align honed main bearing saddles for crank trueness.
• 12-Valve cylinder heads feature high cobalt exhaust seats to prevent seat sinking under load.
• 3.0L displacement outputs 182 ft-lbs torque for reliable grade climbing with cargo payloads.
• 0.0013in rod bearing clearance prevents boundary layer oil breakdown under continuous speeds.
• Stainless steel exhaust manifold studs resist thermal shear fatigue during severe cycling.
• Hardened camshaft journals prevent galling in aluminum cylinder head cam towers.
• 833C commercial core assemblies arrive with brand new high pressure oil pump units.
• Multi layer steel head gaskets eliminate combustion gas transfer into coolant passages.

Dynamometer Operational Load Limits

Dyno testing protocols measure 153BHP and 182 ft-lbs torque at 4800 RPM for each 833C long block engine. Diagnostic pressure transducers verify 48 PSI oil gallery delivery at 195°F continuous sump operating temperature under load. Cylinder compression gauges confirm 175 PSI per cylinder bore across both cylinder banks with variance restricted within 3% under test load. Exhaust gas pyrometers track 1150°F during full power runs on precision calibrated bench indicators. Crankshaft thrust runout checks confirm zero runout past 0.0003in TIR tolerance thresholds.

Field Installation Directives Constraints

Mechanical accelerator cable linkage mechanisms require 4 lbs manual pull force to stroke the throttle butterfly to full excursion during pedal travel. This engine is not built for twin turbo performance coupes, marine inboard boats, or propane fuel conversions.

• Complete initial oil drainage at 500 miles and refill the crankcase with API certified SAE 10W-30 motor oil.
• Hydraulic lash adjusters set automatic zero lash without manual adjustment shims or periodic service maintenance.
• Cylinder head bolts require clean oiled threads and strict multistage angle torque steps on reassembly cycles.

Standard Warranty Shipping Manifest

Commercial vehicle investments receive coverage under the VEGE assembly standard 3-Year 100,000-mile warranty policy. The heavy timber transport crate holds the complete long block assembly, front timing cover, stamped steel oil pan, aluminum valve covers, oil pump pickup screen, and verified dynamometer performance test sheets.
