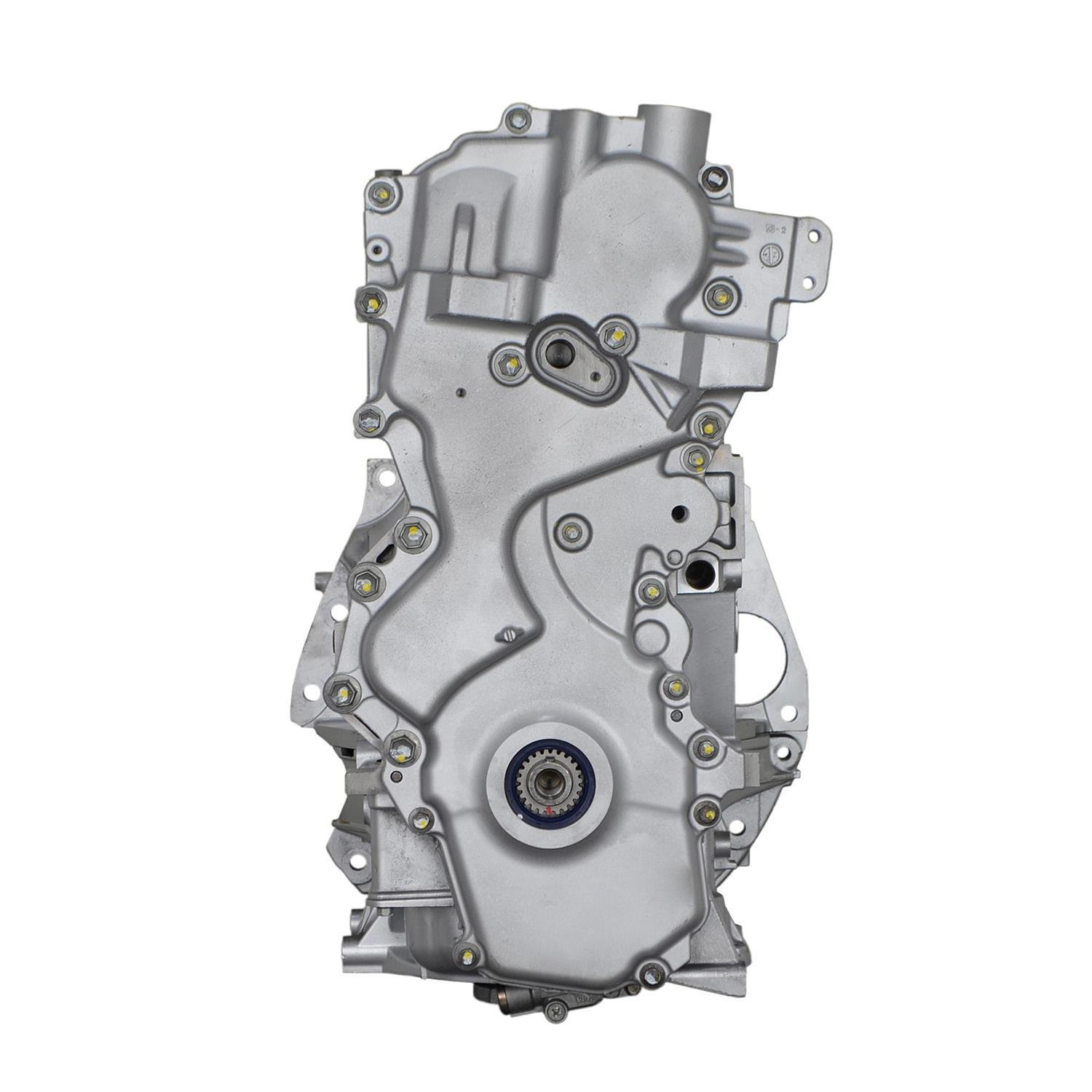

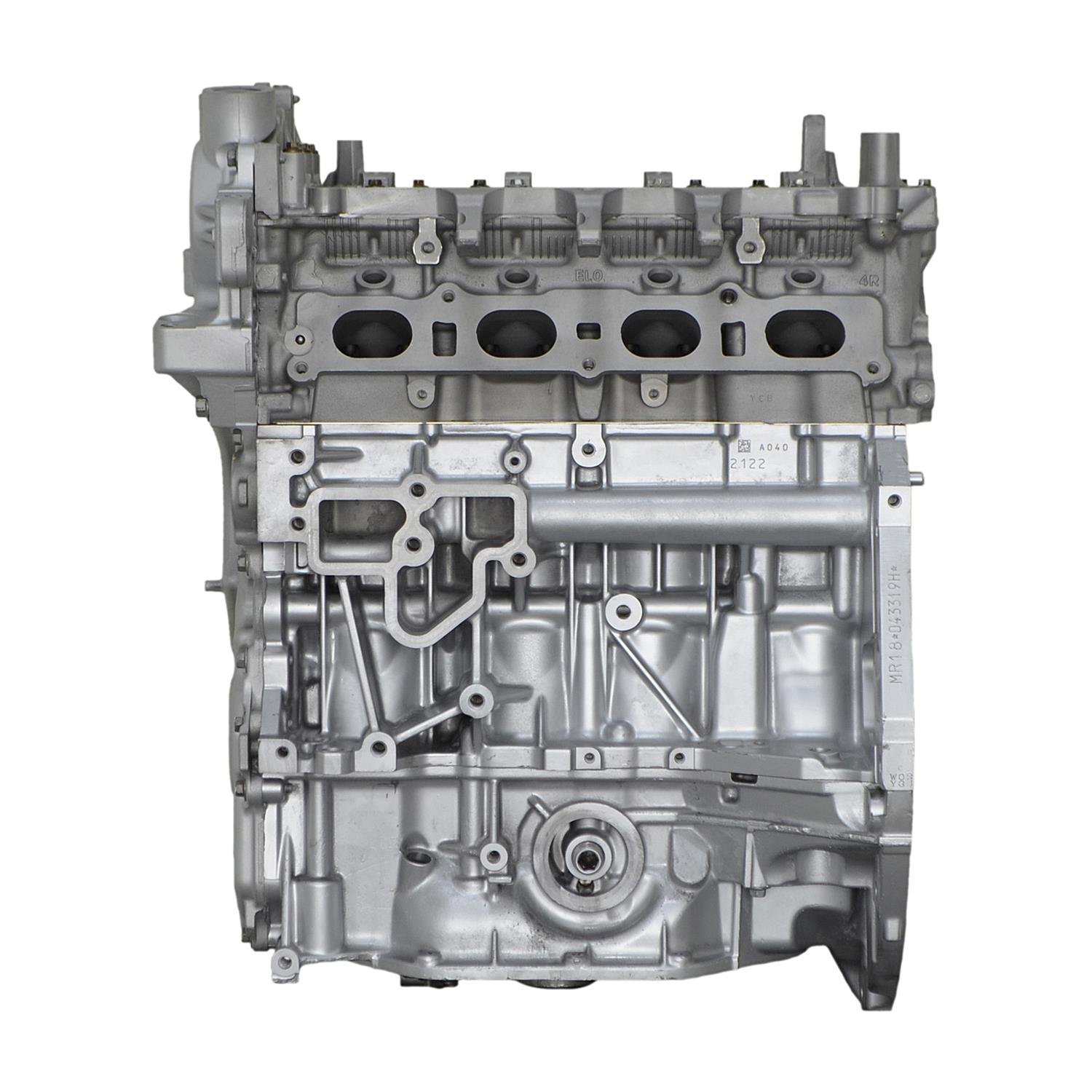

VEGE Remanufactured 347A 2.5L 2488cc Car Truck Long Block Engine

Description

Experience renewed pulling muscle with the VEGE Remanufactured 347A Car Truck Long Block Engine, built to repower hard-working commercial delivery pickups. This 2.5L 2488cc inline-4 car truck long block replacement produces 175HP across a 16-valve aluminum platform. Tall cylinder head height demands checking hood reinforcement clearance before securing final motor mount bolts.

Reinforced aluminum block casting with cast iron cylinder liners gives the VEGE 347A long block assembly structural rigidity under continuous commercial pulling cycles. The 5-main bearing bottom end supports a micro-polished forged steel crankshaft. Designed for 12V vehicle charging circuits, starter draw measures 155A during cold starts. Net dry weight lands at 310 lbs within an installation stance of 26in length by 23in width and 27in height. Sump oil capacity holds 5 quarts.

Key Features of VEGE Remanufactured 347A

Fleet maintenance supervisors buy VEGE Remanufactured 347A engines to complete an efficient commercial long block repower on light route pickups and utility service vans. This VEGE remanufactured long block provides direct replacement fitment for 2.5L four-cylinder commercial vehicle chassis.

• Five oversized main bearings absorb crankshaft torsional stress under continuous highway freight pulling.
• Hypereutectic pistons feature precision ground skirts for tight 0.0015in cylinder wall clearance.
• Hardened exhaust valve seats withstand high combustion temperatures during sustained highway grade climbs.
• Dual overhead camshafts optimize air-fuel volumetric efficiency across variable driving speeds.
• Heavy duty hydraulic timing chain tensioners prevent chain whip and maintain valve timing accuracy.
• Integrated balance shaft assembly cancels secondary engine vibration across the entire powerband.
• Precision machined rear flange mates this 347A commercial core to original automatic or manual gearboxes.

Dyno Certified Thermal Diagnostics

Brake dynamometer trials establish this 347A long block engine produces 175HP at 6,000 RPM alongside 180 ft-lbs torque output at 4,000 RPM on standard commercial fuels. Oil pressure holds 48 PSI at operating temperature while coolant flow keeps operating temperatures at 182°F. Exhaust pyrometers register 1,180°F during full load step tests. Compression measurements verify 170 PSI across all 4 cylinders within 2% variance. Crankshaft journal runout checks below 0.0003in TIR on dial indicators.

Field Service Installation Bounds

Throttle cable pull mechanisms require 4 lbs force for smooth accelerator pedal action. Do not install this 2.5L four-cylinder car truck long block engine in passenger chassis requiring transverse drivetrain orientation without matching transaxle mounts. Fleet maintenance teams must check transmission torque converter pilot engagement depth before torquing bellhousing bolts to this 347A engine core.

• Change 5W-30 synthetic blend oil and filter every 250 operating hours or 3,500 miles.
• Inspect timing chain cover seal and front crankshaft damper every 500 operating hours.
• Torque intake and exhaust manifold bolts to 24 ft-lbs every 600 run hours.

Commercial Warranty Dispatch Inventory

VEGE backs this commercial long block with a 3-Year or 100,000-mile limited commercial warranty. The reinforced wooden pallet crate contains the remanufactured 347A long block core, oil pan, front timing cover, dual valve covers, internal oil pump pickup tube, and complete factory installation setup guide.
