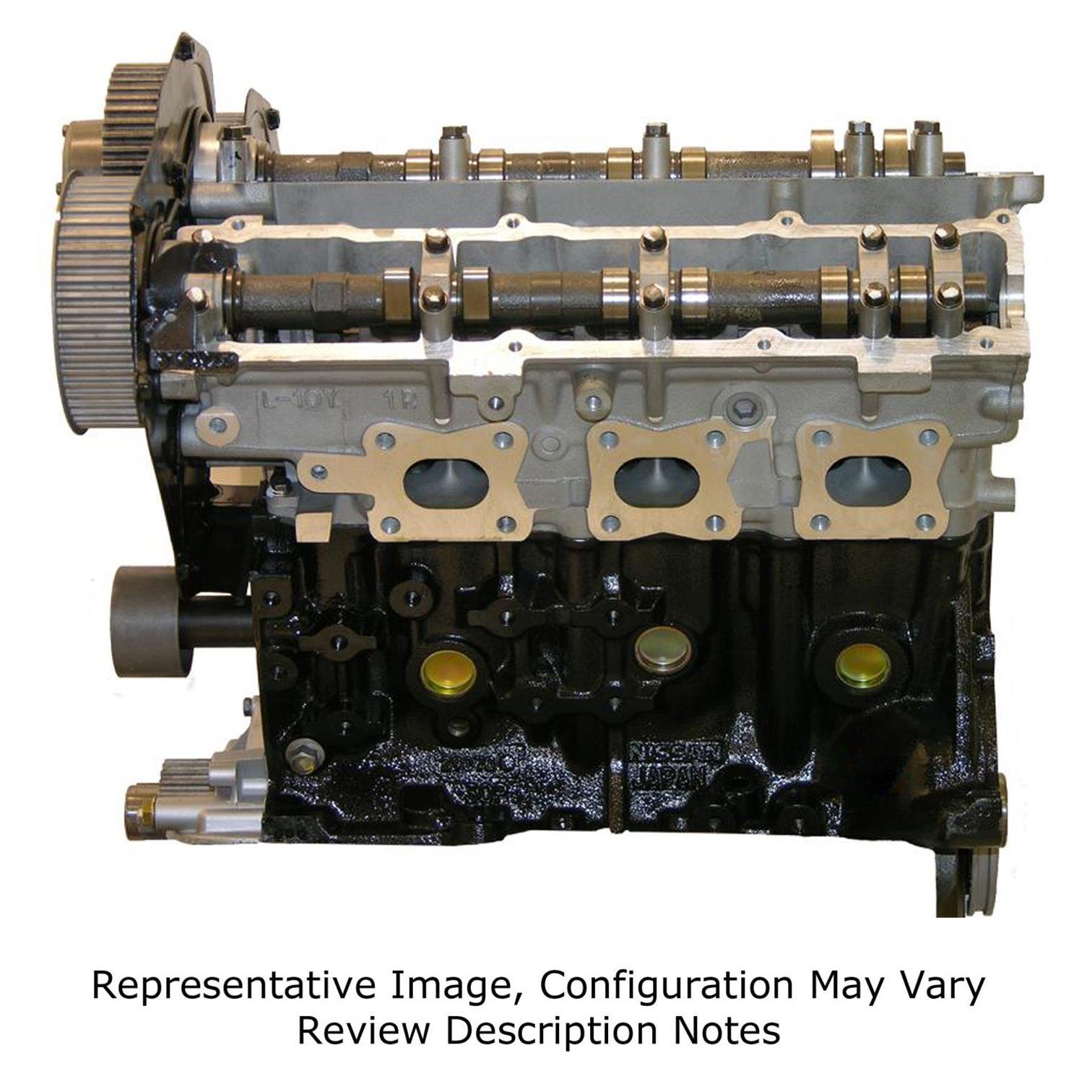

VEGE Remanufactured 335E 3.0L 2960cc High Output Long Block Engine

Description

Drop the VEGE Remanufactured 335E High Output Long Block Engine into chassis bays requiring serious six-cylinder pulling muscle. This 3.0L 2960cc V6 commercial long block replacement produces 175HP across a tuned iron-block foundation. Compact exhaust manifold packaging requires checking clearance around steering shafts during shop hoist drop-in positioning to avoid firewall contact.

Dense ASTM gray iron block casting gives the VEGE 335E long block assembly structural rigidity under high-RPM acceleration cycles. The 4-Bolt cross-bolted main bearing caps lock the forged steel crankshaft in position. Engineered for 12V electrical infrastructure, starter demand peaks at 190A during sub-zero cranking tests. Net dry weight lands at 395 lbs within an installation stance of 27in length by 26in width and 27in height. Sump oil holds 5.5 quarts.

Key Features of VEGE Remanufactured 335E

Commercial transport mechanics buy VEGE Remanufactured 335E engines to complete a dependable high output long block repower on service vans and utility trucks. This VEGE remanufactured long block provides direct replacement fitment for 3.0L high-output applications.

• Forged steel crankshaft turns inside micro-polished main bearings rated to 0.0004in journal runout tolerance.
• High-lift camshaft profile improves high-RPM volumetric efficiency and cylinder scavenging.
• Cast aluminum pistons feature graphite-coated skirts to reduce internal friction during cold starts.
• Cross-bolted 4-Bolt main caps secure crankshaft journal alignment under severe torque loads.
• Heavy duty timing belt set maintains precise valve timing synchronization without belt deflection.
• High volume oil pump supplies 55 PSI hot pressure through internal cylinder block oil galleries.
• Precision machined bellhousing pattern mates this 335E high output core to factory automatic transmissions.

Dynamometer High Output Load Diagnostics

Dynamometer load cells confirm this 335E long block engine generates 175HP at 5,400 RPM and 195 ft-lbs torque output at 3,600 RPM under continuous water brake resistance. Oil pressure stabilizes at 54 PSI with oil sump temperatures holding at 195°F during full-load testing. Cylinder compression tests confirm 175 PSI across all 6 cylinders with variance under 3%. Crankshaft thrust float measures 0.005in tolerance. Exhaust port pyrometers record 1,220°F during full throttle pull tests, proving heat dissipation under heavy cycles.

Bay Clearances Maintenance Rules

Electronic throttle pedal actuators require 5 lbs mechanical return tension for positive throttle return. Do not install this 3.0L V6 high output long block engine in chassis lacking electronic engine control modules or transverse front-wheel drive cars. Commercial repower technicians must verify timing belt tension gauge specs before installing this 335E engine core.

• Change 5W-30 synthetic motor oil and spin-on filter every 250 operating hours or 4,000 miles.
• Inspect multi-ribbed serpentine accessory belts and idler pulleys every 500 operating hours.
• Check cooling system coolant pH balance and hose clamps every 600 run hours.

Warranty Inventory Shipping Manifest

VEGE covers this high output long block with a 3-Year or 100,000-mile limited commercial warranty for fleet operations. The reinforced wooden pallet crate contains the remanufactured 335E long block core, cast oil pan, front timing cover, dual valve covers, internal oil pump, and complete factory installation setup guide.
