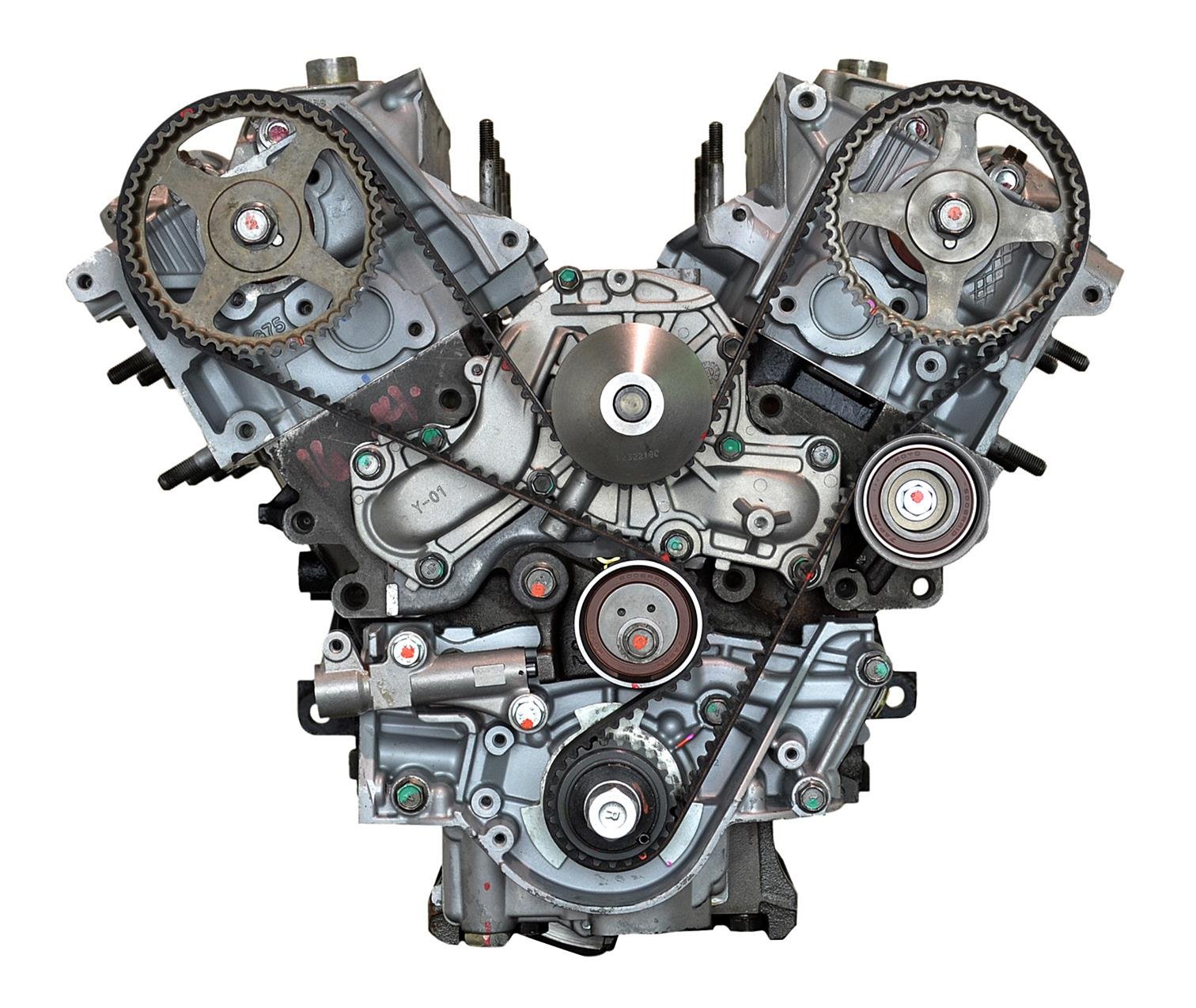

VEGE Remanufactured 263 3.8L 232ci Multi Purpose Long Block Engine

Description

Experience renewed pulling muscle with the VEGE Remanufactured 263 Multi Purpose Long Block Engine, built to repower multi-duty commercial utility platforms. This 3.8L 232ci V6 multi purpose long block produces 150HP across a rugged 90° cylinder layout. Wide cylinder head packaging requires checking steering column clearance prior to torquing down engine crossmember motor mounts.

ASTM gray iron construction gives the VEGE 263 long block assembly massive structural strength to resist torsional crankcase twist under continuous hauling loads. Four-bolt main caps locate the balanced nodular iron crankshaft. Designed for 12V commercial electrical systems, cold starter current peaks at 180A. Net dry weight measures 385 lbs with an exterior stance of 28in length by 26in width and 27in height. Sump oil volume equals 5 quarts.

Key Features of VEGE Remanufactured 263

Commercial fleet mechanics buy VEGE Remanufactured 263 engines to execute a multi purpose long block repower on utility service vans and municipal yard tractors. This VEGE remanufactured long block provides direct drop-in bolt alignment for 3.8L rear-wheel drive chassis.

• Four-bolt main bearing caps secure the crankshaft journals against deflection under heavy loads.
• Cast aluminum pistons feature diamond-turned skirts for accurate 0.0015in cylinder bore clearance.
• Cast iron cylinder heads feature hardened exhaust valve seats for unleaded commercial fuel endurance.
• Hydraulic roller camshaft minimizes valvetrain friction and eliminates flat tappet break-in wear.
• Double roller timing chain set maintains camshaft phase synchronization without chain stretch.
• High volume oil pump supplies 50 PSI pressure to rod journals and hydraulic lifters.
• Standard bellhousing bolt pattern mates this 263 multi purpose core to factory automatic transmissions.

Dyno Certified Torque Diagnostics

Dynamometer water brake testing confirms this 263 long block engine generates 150HP at 4,000 RPM and 215 ft-lbs torque output at 2,400 RPM under continuous water brake resistance. Oil pressure stabilizes at 48 PSI with sump temperatures holding at 190°F during full-load testing. Cylinder compression tests confirm 155 PSI across all 6 cylinders with zero variance above 3%. Crankshaft thrust endplay measures within 0.005in tolerance. Exhaust port pyrometers record 1,160°F during full throttle pull tests, proving heat dissipation under load.

Chassis Mounting Service Rules

Mechanical throttle linkages demand 6 lbs pull force for positive return spring action. Do not install this 3.8L V6 multi purpose long block engine into compact front-wheel drive cars or vehicles lacking 28in bay width clearance. Commercial repower operators must verify engine crossmember alignment before bolting this 263 engine core into position.

• Change 10W-30 fleet grade motor oil and spin-on filter every 250 operating hours or 3,000 miles.
• Inspect serpentine accessory drive belt tensioner and water pump weep hole every 500 operating hours.
• Torque intake manifold lower bolts to 15 ft-lbs after the initial 50 operating hours.

Warranty Dispatch Pallet Inventory

VEGE covers this multi purpose long block with a 3-Year or 100,000-mile limited commercial warranty for fleet operations. The reinforced wooden pallet crate contains the remanufactured 263 long block core, stamped oil pan, timing chain cover, cast valve covers, oil pump pickup tube, and complete factory setup documentation.
